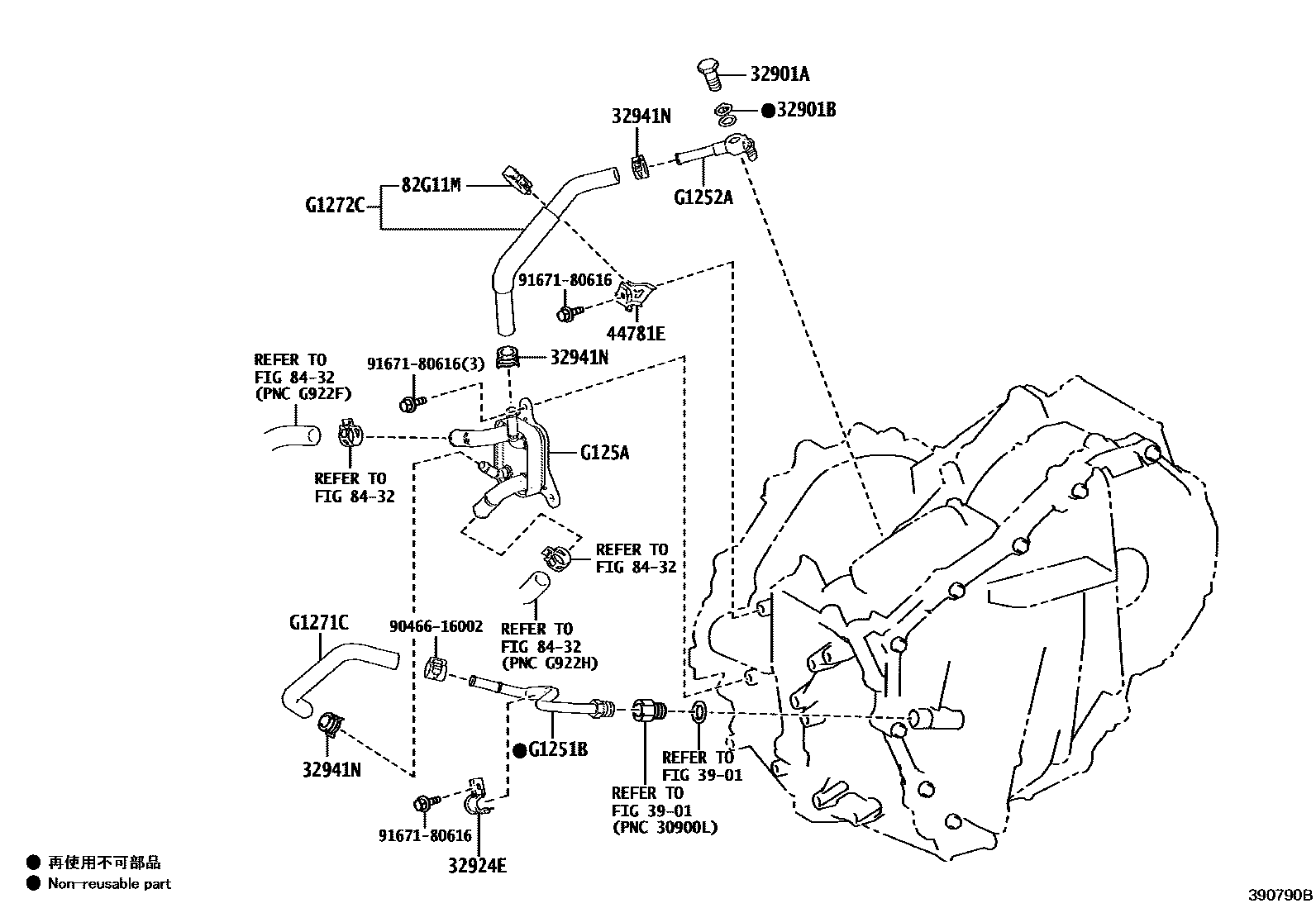

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iMXPL1#202207

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iMXPL1#202207

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iMXPL1#202207

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iMXPL1#202207

3901

44781EBRACKET, HOSE

main44781-52070iMXPL1#..Z202207

main44781-K0010iMXPL1#..Z202207

82G11MCLAMP, WIRING HARNESS

main82711-51020iMXPL1#202207

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125152030iMXPL1#..Z202207

mainG1251K0010iMXPL1#..G,X202207

G1252APIPE, MOTOR COOLING, NO.2

mainG1252K0010iMXPL1#202207

G125ACOOLER, MOTOR COOLING

mainG125AK0010iMXPL1#202207

G1271CHOSE, MOTOR COOLING, NO.1

mainG127152030iMXPL1#..Z202207

mainG1271K0010iMXPL1#..G,X202207

G1272CHOSE, MOTOR COOLING, NO.2

mainG1272K0010iMXPL1#202207

9046616002

main90466-16002

9167180616

main91671-80616

15 parts on this diagram · 2 diagrams in section
