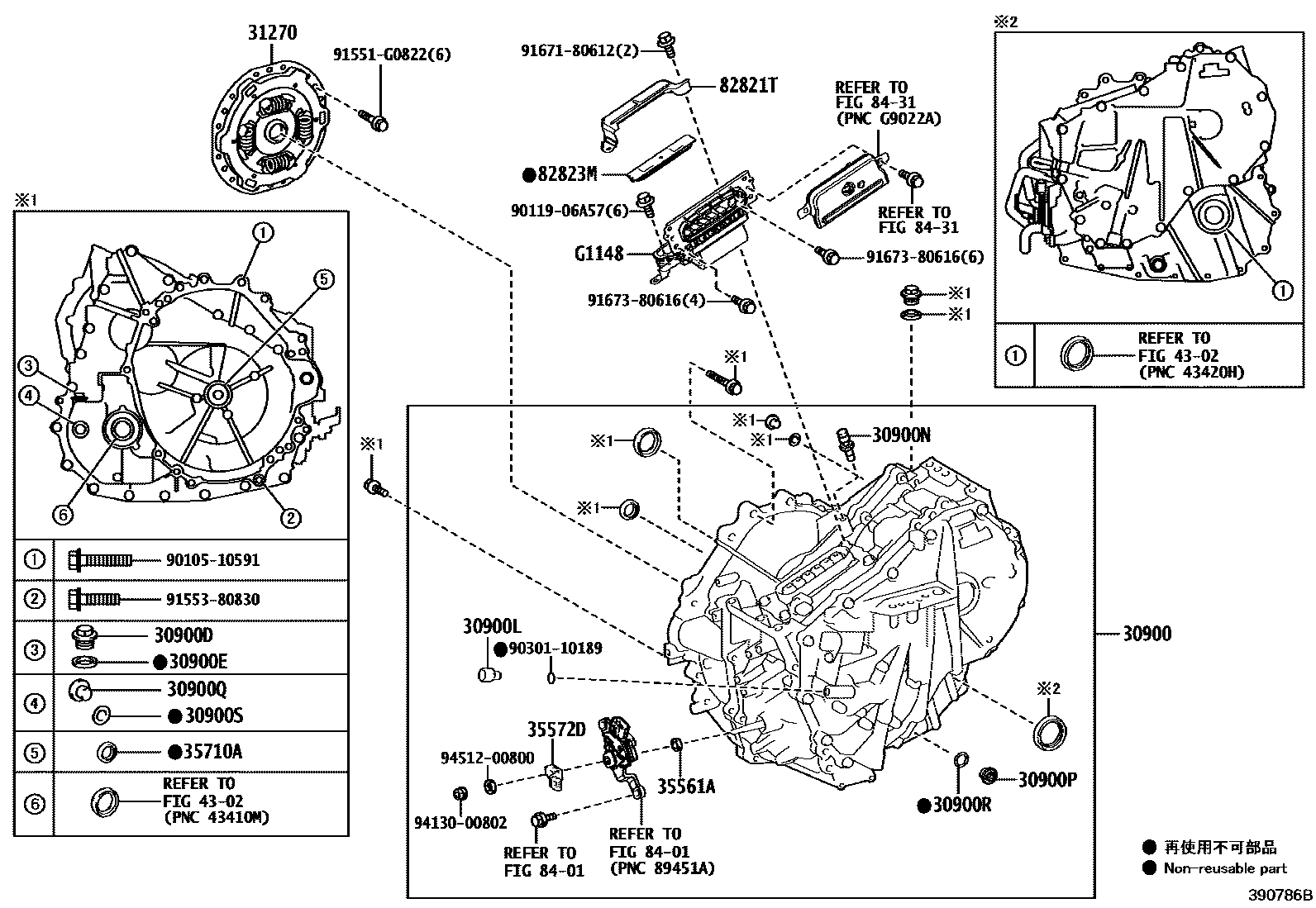

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1�� ��������� 0004 1�� ��������� ����� & ��������

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-52040iMXPL1#..G,X202207

main30900-52060iMXPL1#..Z202207

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMXPL1#202207

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMXPL1#202207

30900LUNION(FOR TRANSAXLE HOUSING)

main90404-16031iMXPL1#202207

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMXPL1#202207

30900PPLUG, DRAIN(HEV)

main90341-18016iMXPL1#202207

30900QPLUG, FILLER(HEV)

main90341-18016iMXPL1#202207

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMXPL1#202207

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMXPL1#202207

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-K0013iMXPL1#202207

35561ASEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)

main90311-12016iMXPL1#202207

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-K0010iMXPL1#..G,X202207

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iMXPL1#202207

4302

82821TCOVER, CONNECTOR

main82821-52350iMXPL1#202207

82823MCAP, TERMINAL

main82823-47040iMXPL1#202207

8401

8431

G1148CABLE, MOTOR

mainG1148K0010iMXPL1#202207

9010510591

main90105-10591

9011906A57

main90119-06A57

9030110189

main90301-10189

91551G0822

main91551-G0822

9155380830

main91553-80830

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

28 parts on this diagram · 4 diagrams in section
