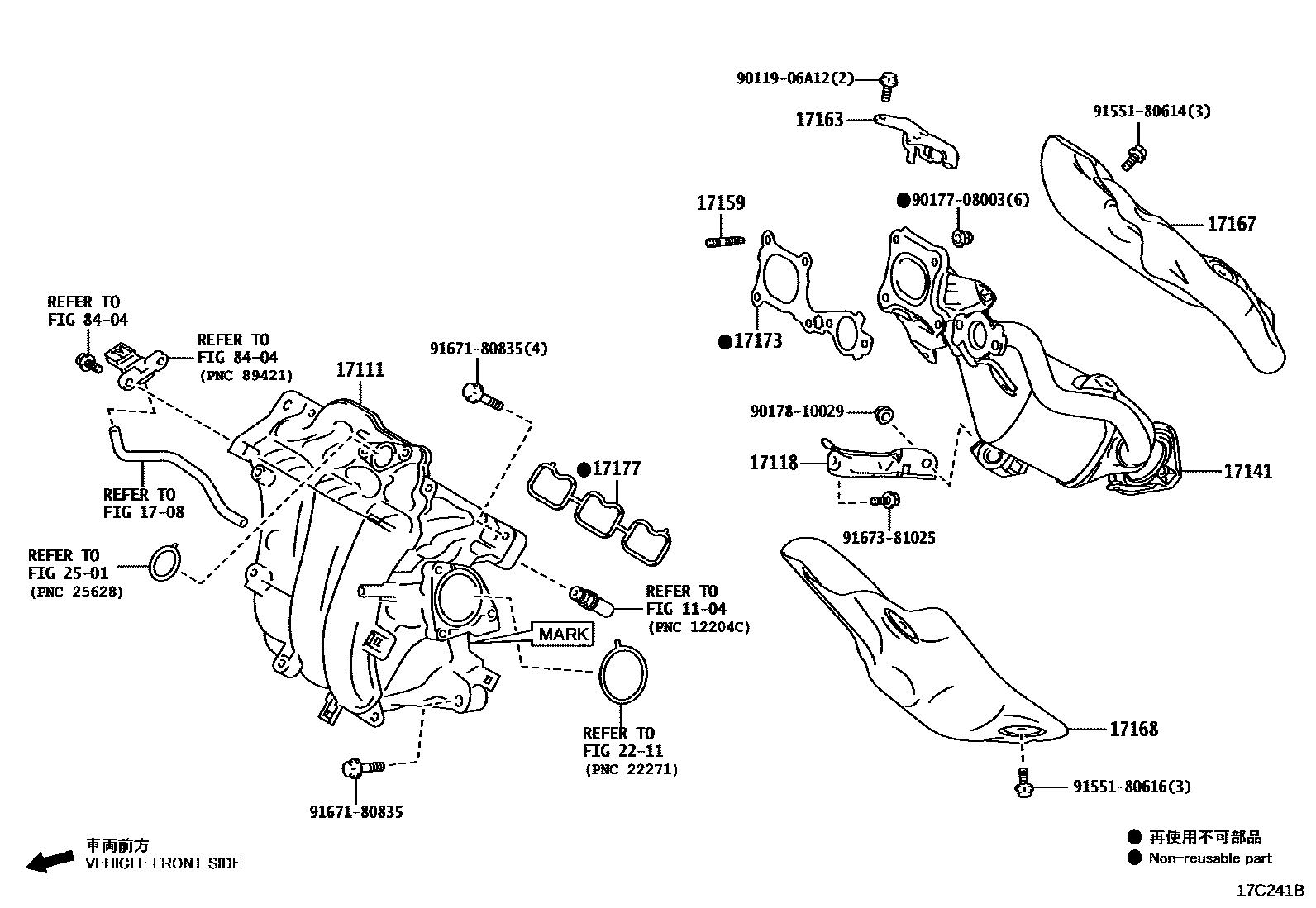

MANIFOLD

0001 1 0002 1

1104

1708

17111MANIFOLD, INTAKE

main17101-15120iM15AFKS..MXPC1#202207

main17101-15130iM15AFXE..MXPL1#202207

main17101-F3010iM15AFKS..MXPC1#202310

main17101-F3020iM15AFKS..MXPC1#202310

sub17101-F3010

17118STAY, MANIFOLD

main17118-15090iM15#..MXPC1#,MXPL1#202207

17141MANIFOLD, EXHAUST

main17141-15180iM15#..MXPC1#,MXPL1#202207-202405

main17141-15250iM15#..MXPC1#,MXPL1#202405

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052iM15#..MXPC1#,MXPL1#202207

17163BRACKET, HEAT INSULATOR, NO.1

main17163-15010iM15#..MXPC1#,MXPL1#202207

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-15100iM15#..MXPC1#,MXPL1#202207

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-15040iM15#..MXPC1#,MXPL1#202207

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15050iM15#..MXPC1#,MXPL1#202207

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15040iM15#..MXPC1#,MXPL1#202207

2211

2501

8404

9011906A12

main90119-06A12

9017708003

main90177-08003

9017810029

main90178-10029

9155180614

main91551-80614

9155180616

main91551-80616

9167180835

main91671-80835

9167381025

main91673-81025

21 parts on this diagram · 2 diagrams in section
