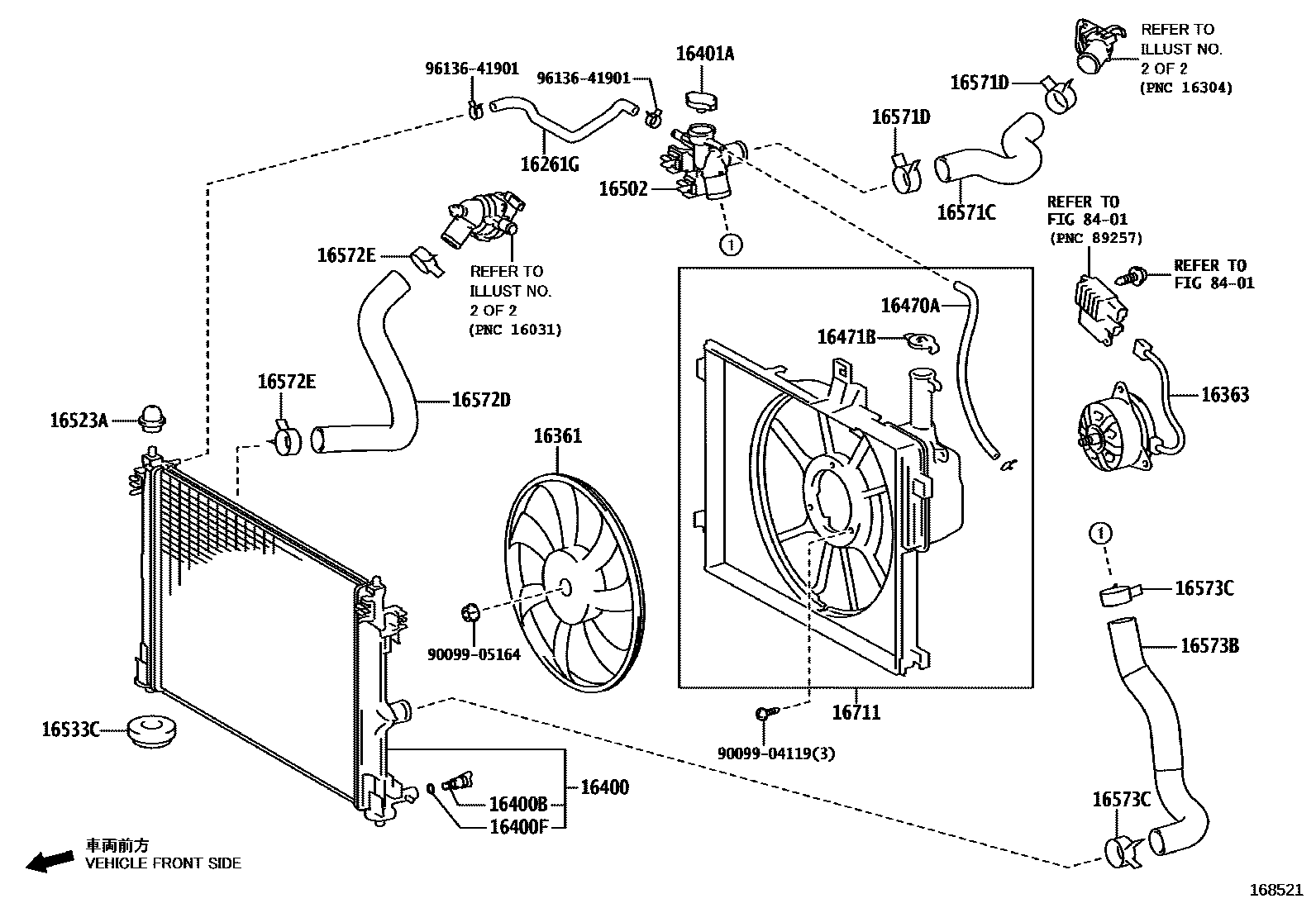

RADIATOR & WATER OUTLET

0001 1��������� 0002 1�������� 0003 1��������� 0004 1��������� 0005 1��������

16261GHOSE, WATER BY-PASS, NO.1

main16261-15030iM15AFXE..MXPL1#¥1,010202207

main16261-15040iM15AFKS..MXPC1#¥790202207

16361FAN

main16361-15090iM15AFKS..MXPC1#¥4,330202207

main16361-15100iM15AFXE..MXPL10..05S¥5,600202207

main16361-21150iM15AFXE..MXPL12,15;M15AFXE..MXPL10..07S¥5,600202207

16363MOTOR, COOLING FAN

main16363-31500iM15AFXE..MXPL12,15;M15AFXE..MXPL10..07S¥37,600202207

main16363-K0010iM15AFKS..MXPC1#¥14,200202207

main16363-K0020iM15AFXE..MXPL10..05S¥15,900202207

16400RADIATOR ASSY

main16400-15620iM15AFKS..MXPC1#¥27,600202207

main16400-15630iM15AFXE..MXPL1#¥32,500202207

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iM15AFKS..MXPC1#¥360202207

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iM15AFKS..MXPC1#¥210202207

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16401-36020iM15#..MXPC1#,MXPL1#¥910202207

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-K0010iM15AFKS..MXPC1#202207

main16377-K0020iM15AFXE..MXPL1#202207

16471BCAP, RESERVE TANK

main16471-15020iM15AFXE..MXPL1#202207-202212

sub16471-15030

main16471-15030iM15AFXE..MXPL1#202301

main16471-23010iM15AFKS..MXPC1#202207

16502FILLER SUB-ASSY, WATER

main16502-15020iM15AFKS..MXPC1#¥1,670202207

main16502-15030iM15AFXE..MXPL1#¥1,670202207

16523ACUSHION, RADIATOR SUPPORT

main16523-37010iM15#..MXPC1#,MXPL1#¥400202207

16533CGROMMET(FOR RADIATOR SUPPORT)

main90480-40021iM15#..MXPC1#,MXPL1#¥220202207

16571CHOSE, RADIATOR, NO.1

main16571-15190iM15AFKS..MXPC1#¥1,010202207

main16571-15200iM15AFXE..MXPL1#¥1,080202207

16571DCLIP, RADIATOR HOSE, NO.1

main90466-40001iM15#..MXPC1#,MXPL1#¥240202207

16572DHOSE, RADIATOR, NO.2

main16572-15220iM15AFKS..MXPC1#¥1,150202207

main16572-15230iM15AFXE..MXPL1#¥1,010202207

16572ECLIP, RADIATOR HOSE, NO.2

main90466-40001iM15#..MXPC1#,MXPL1#¥240202207

16573BHOSE, RADIATOR, NO.3

main16573-15010iM15AFKS..MXPC1#¥1,150202207

main16573-15020iM15AFXE..MXPL1#¥1,150202207

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-43002iM15#..MXPC1#,MXPL1#¥240202207

16711SHROUD, FAN

main16711-15290iM15AFKS..MXPC1#¥5,100202207

main16711-15300iM15AFXE..MXPL10..05S¥5,900202207

main16711-15310iM15AFXE..MXPL12,15;M15AFXE..MXPL10..07S¥5,900202207

8401

9009904119

main90099-04119

9009905164

main90099-05164¥0

9613641901

main96136-41901¥120

23 parts on this diagram · 5 diagrams in section
