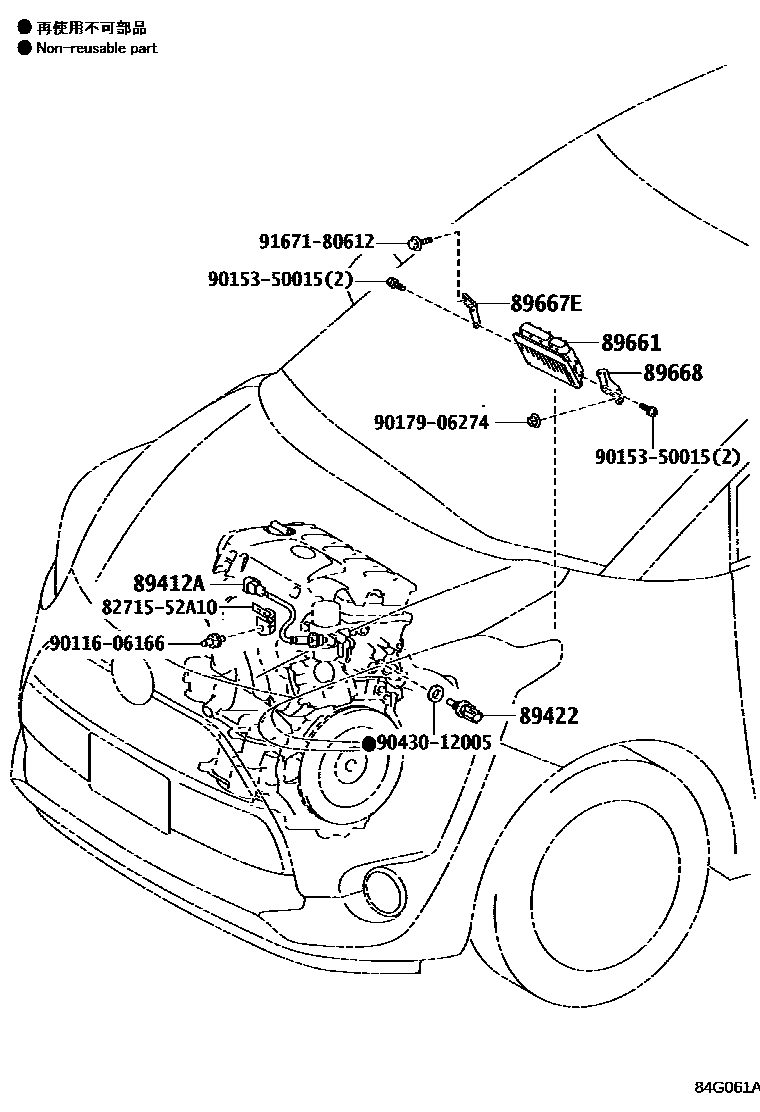

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-35020iNCP175201506-202207

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNCP175,NHP170,NSP17#201506-202207

89661COMPUTER, ENGINE CONTROL

main89661-5C550iNHP170201809-202207

main89661-5C580iNHP170201507-201809

main89661-5C590iNSP17#201506-201809

main89661-5C610iNCP175201506-201809

main89661-5C890iNSP17#201809-202006

main89661-5CA00iNCP175201809-202006

main89661-5CD30iNSP17#202006-202207

main89661-5CD40iNCP175202006-202207

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52340iNCP175,NHP170,NSP17#201506-202207

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52350iNCP175,NHP170,NSP17#201506-202207

8271552A10BRACKET,WIRING HARNESS CLAMP

main82715-52A10

9011606166

main90116-06166

9015350015

main90153-50015

9017906274

main90179-06274

9043012005

main90430-12005

9167180612

main91671-80612

11 parts on this diagram · 3 diagrams in section
