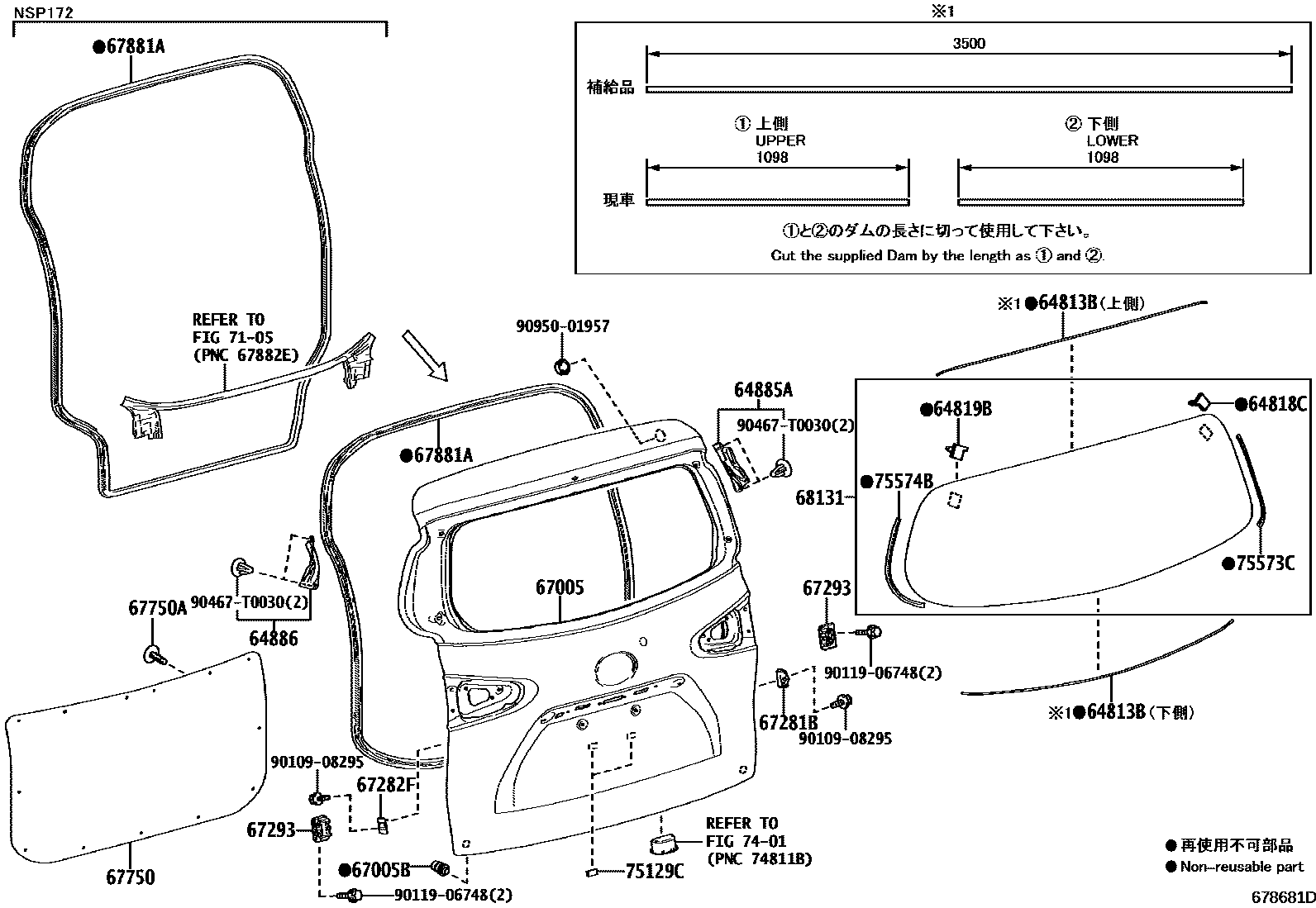

BACK DOOR PANEL & GLASS
64813BDAM, BACK WINDOW GLASS ADHESIVE
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64885ACHANNEL, BACK WINDOW GLASS, RH
64886CHANNEL, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67293CUSHION, BACK DOOR LOWER STOPPER
67750BOARD ASSY, BACK DOOR TRIM
FLOOR CARPET,TRIM0#,2#
FLOOR CARPET,TRIM0#,2#,4#
FLOOR CARPET,TRIM2#,4#
FLOOR CARPET,TRIM2#
67750ACLIP(FOR BACK DOOR TRIM)
68131GLASS, BACK DOOR
7105
7401
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
9010908295
main90109-08295
9011906748
main90119-06748
90467T0030
main90467-T0030
9095001957
main90950-01957
23 parts on this diagram · 1 diagram in section
