SIDE MEMBER

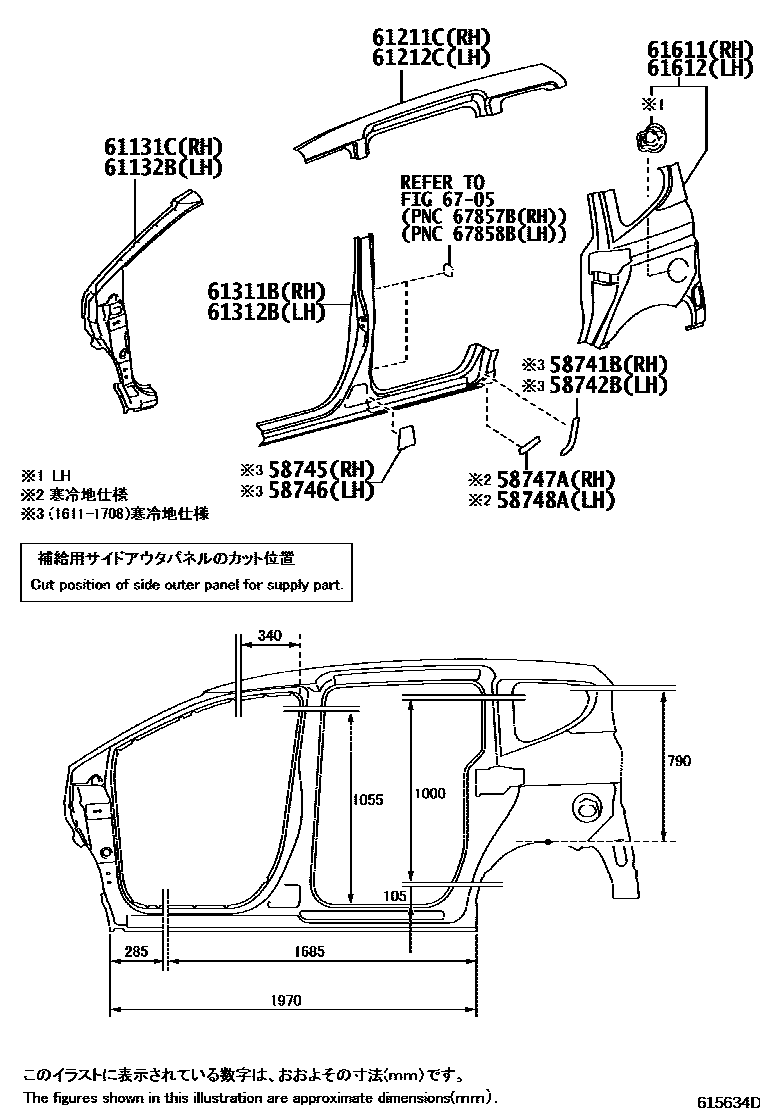

Parts diagram

58741BPROTECTOR, QUARTER PANEL, RH

main58741-52400i201611-201708

main58741-52400i201611-201708

58742BPROTECTOR, QUARTER PANEL, LH

main58742-52400i201611-201708

main58742-52400i201611-201708

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58741-52410i201611-201708

main58741-52410i201611-201708

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58742-52410i201611-201708

main58742-52410i201611-201708

58747APROTECTOR, QUARTER PANEL, REAR RH

main58741-52290i201506-202207

58748APROTECTOR, QUARTER PANEL, REAR LH

main58742-52390i201506-202207

61131CPILLAR, FRONT BODY, OUTER RH

main61131-52370i201506-202207

61132BPILLAR, FRONT BODY, OUTER LH

main61132-52330i201506-202207

61211CRAIL, ROOF SIDE, RH

main61211-52220i201506-202207

61212CRAIL, ROOF SIDE, LH

main61212-52240i201506-202207

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52080i201506-202207

main61311-52090i201611-202207

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52070i201506-202207

main61312-52080i201611-202207

61611PANEL, QUARTER, RH

main61611-52490i201506-202207

61612PANEL, QUARTER, LH

main61602-52800i201506-202207

6705

15 parts on this diagram · 3 diagrams in section
