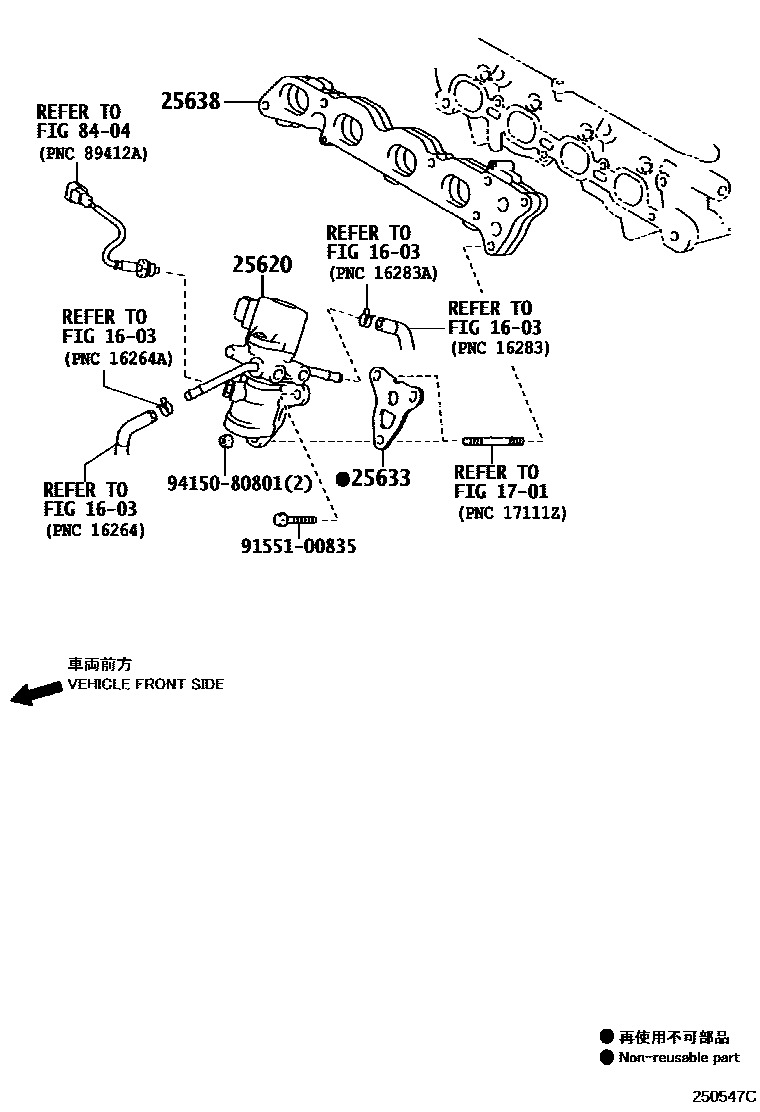

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1603

1701

25620VALVE ASSY, EGR

main25620-21010i1NZFE..NCP175201506-202207

main25620-21020i1NZFXE..NHP170201507-201606

sub25620-21021

main25620-21021i1NZFXE..NHP170201607-202207

main25620-47030i2NRFKE..NSP17#201506-201906

sub25620-47060

main25620-47060i2NRFKE..NSP17#201907-202207

25633GASKET, EGR VALVE

main25633-21010i1NZFXE..NHP170201507-202207

main25633-21020i1NZFE..NCP175201506-202207

main25633-47020i2NRFKE..NSP17#201506-202207

25638CHAMBER, EGR DELIVERY

main25638-21020i1NZFE..NCP175201506-202207

8404

9155100835

main91551-00835

9415080801

main94150-80801

8 parts on this diagram · 3 diagrams in section
