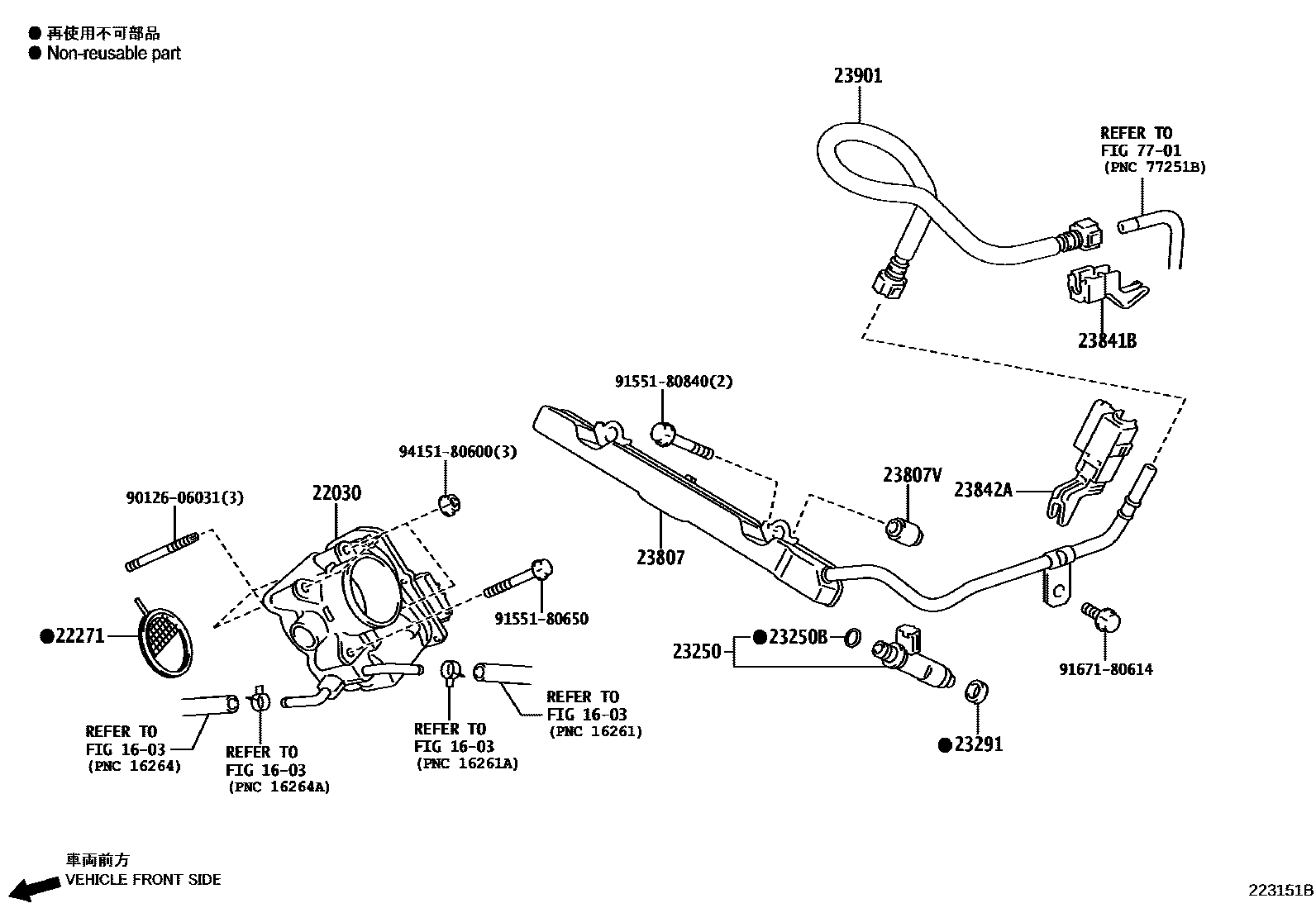

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NCP175201809-202207

main22030-47040i1NZFXE..NHP170201809-202207

main22030-47060i2NRFKE..NSP17#201506-201809

main22030-47090i2NRFKE..NSP17#201809-202207

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NCP175201809-202207

main22271-21070i1NZFXE..NHP170201507-201809

main22271-47050i2NRFKE..NSP17#201809-202207

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE..NCP175201506-201809

sub23209-21120

main23209-21091×4i1NZFXE..NHP170201507-201809

main23209-21110×4i1NZFXE..NHP170201809-202207

main23209-49245×4i2NRFKE..NSP17#201506-201809

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1NZ#,2NRFKE..NCP175,NHP170,NSP17#201506-201809

main90301-C0072×4i1NZFXE..NHP170201908-202207

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NZ#,2NRFKE..NCP175,NHP170,NSP17#201506-201809

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21031i1NZFE..NCP175201809-202207

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZ#..NCP175,NHP170201506-201809

main23891-47030×2i2NRFKE..NSP17#201809-202207

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE..NCP175201809-202207

main23841-37090i2NRFKE..NSP17#201809-202207

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21050i2NRFKE..NSP17#201506-201809

main23841-37090i1NZFE..NCP175201506-201809

23901TUBE SUB-ASSY, FUEL

main23901-21110i1NZFE..NCP175201506-201809

main23901-21220i1NZFXE..NHP170201809-202207

main23901-47080i2NRFKE..NSP17#201506-201809

7701

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600
