MANIFOLD
1603
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17119STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
2211
2501
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
9017908228
main90179-08228
9033903017
main90339-03017
91631B0625
main91631-B0625
91641K0822
main91641-K0822
91671A0814
main91671-A0814
9167281020
main91672-81020
9167300860
main91673-00860
9415080801
main94150-80801

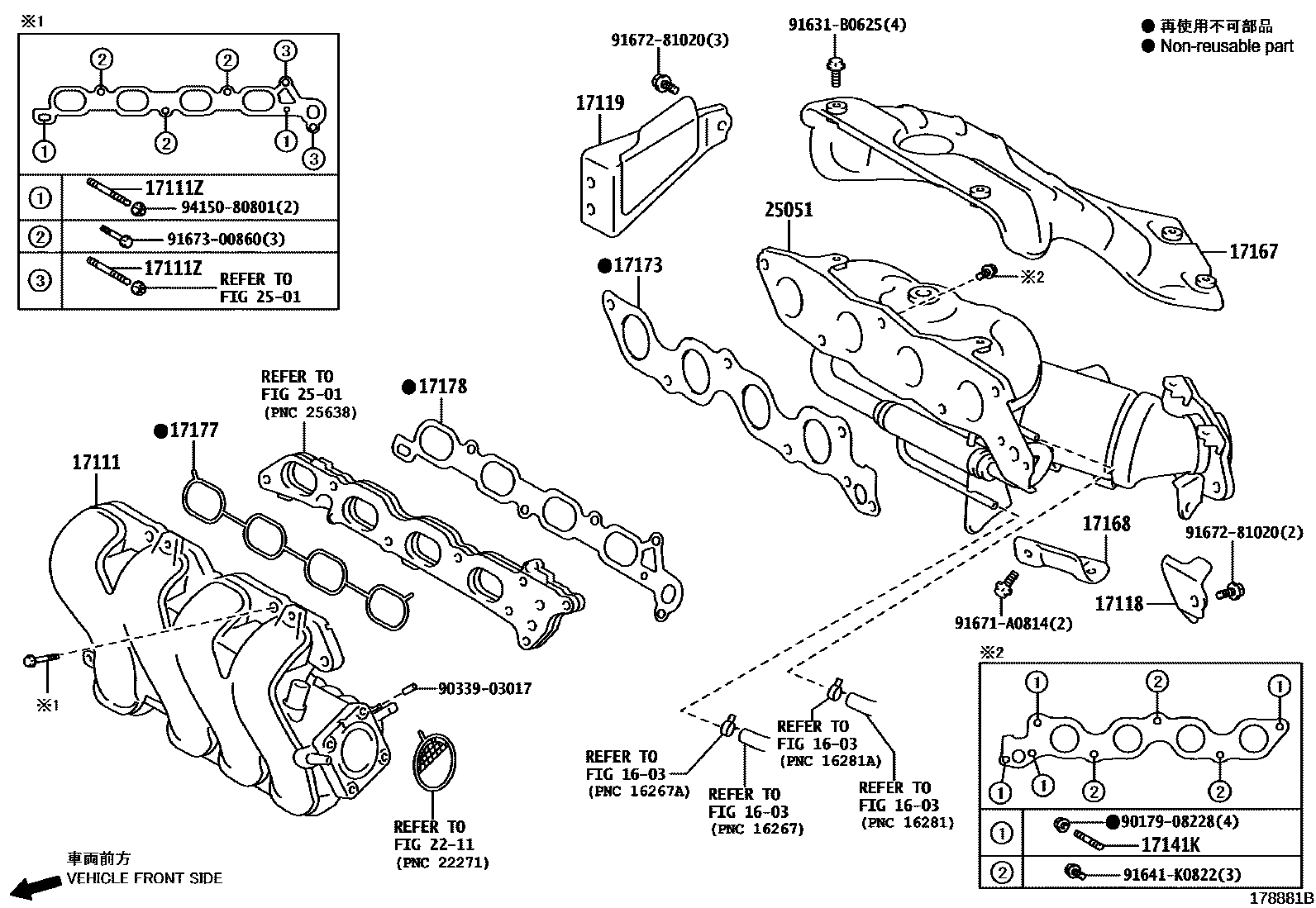

23 parts on this diagram · 3 diagrams in section
