WATER PUMP

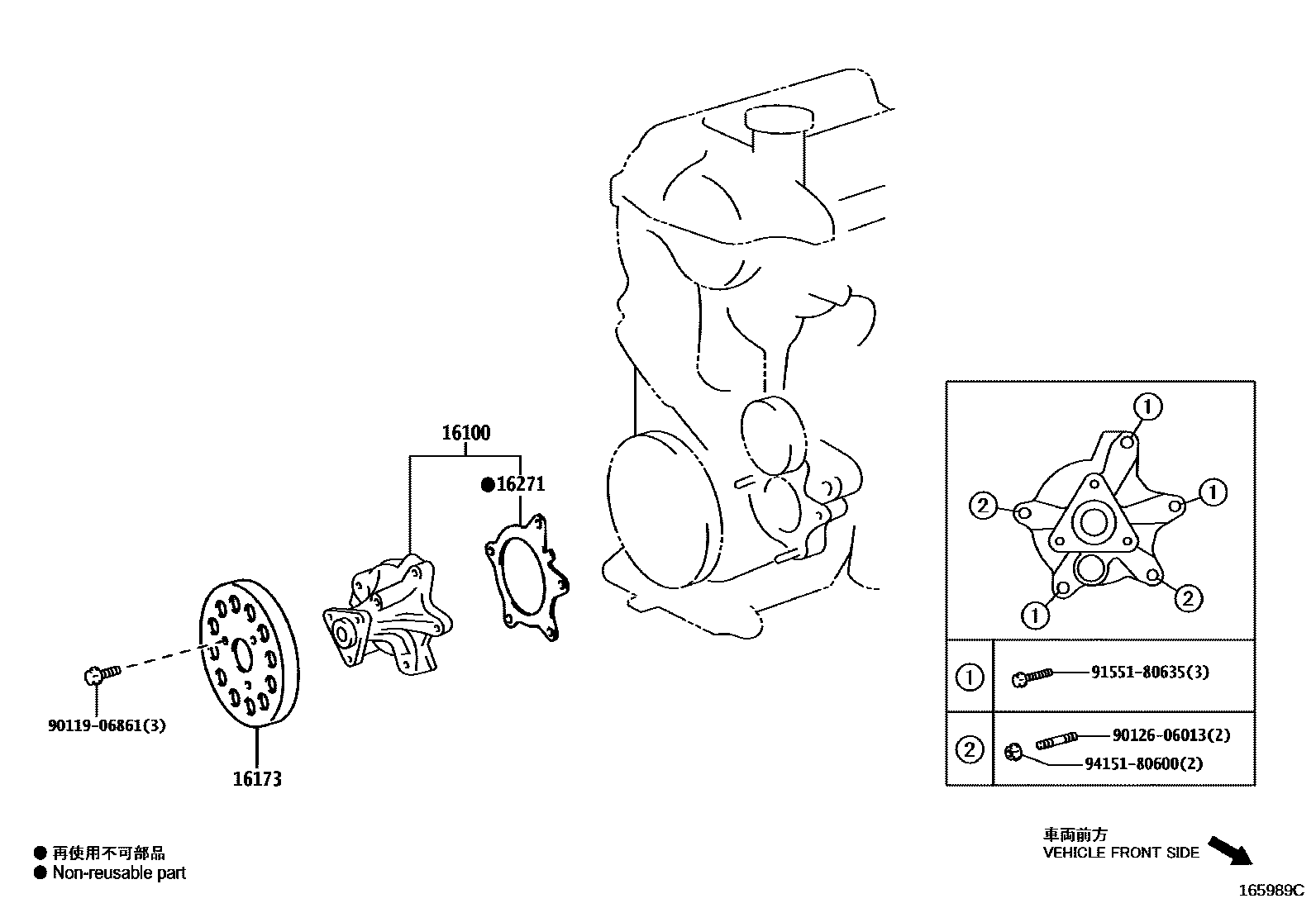

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-29157i¥8,400201506-201812

sub16100-29158¥8,400

main16100-29158i¥8,400201812-202207

main16100-80013i¥7,900201506-202105

sub16100-80018¥7,900

main16100-80018i¥7,900202105-202207

main161A0-29015i¥15,000201507-201809

main161A0-39035i¥15,000201809-202207

16173PULLEY, WATER PUMP

main16173-21020i¥2,970201506-201807

sub16173-21021¥2,250

main16173-21021i¥2,250201808-202207

16271GASKET, WATER PUMP

main16271-0Y030i¥650201506-202207

main16271-21021i¥380201506-202207

main16271-37020i¥470201507-202207

9011906861

main90119-06861¥60

9012606013

main90126-06013¥130

9155180635

main91551-80635¥80

9415180600

main94151-80600¥60

7 parts on this diagram · 3 diagrams in section
