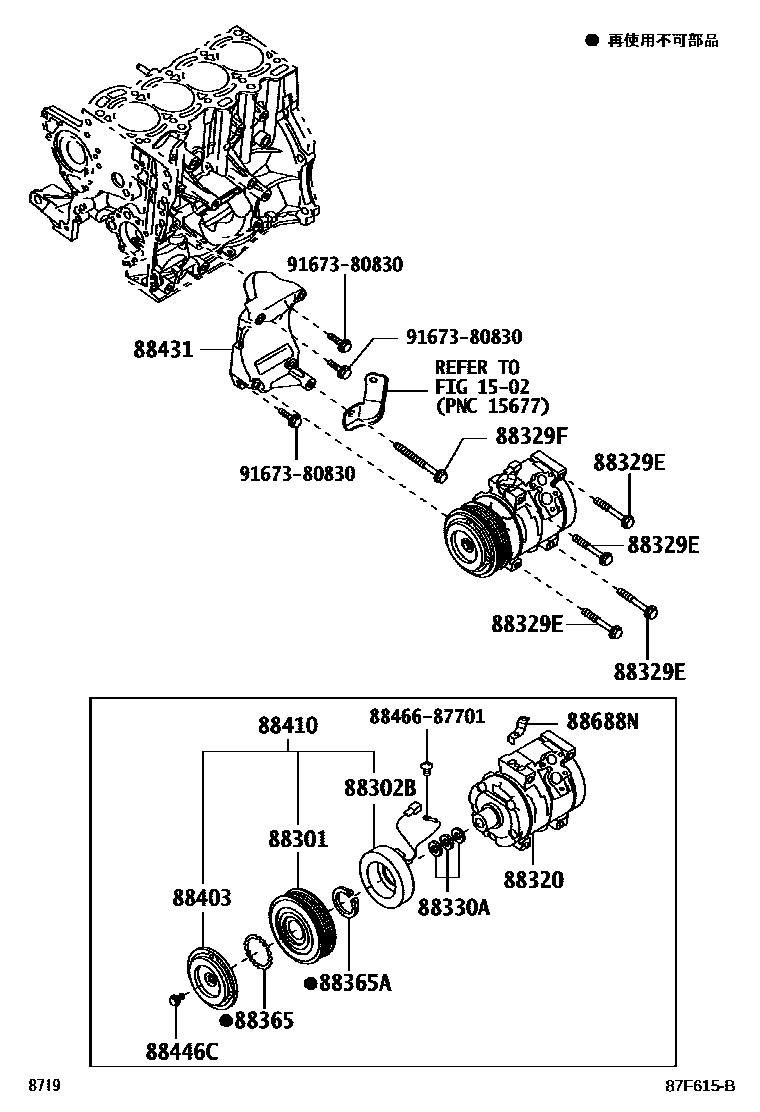

HEATING & AIR CONDITIONING - COMPRESSOR

1502

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B1070iM502,512200812

88302BSTATOR, MAGNET CLUTCH

main88411-B1030iM502,512200812

88320COMPRESSOR ASSY, COOLER

main88320-B1040iM502,512200812

88329EBOLT, COMPRESSOR, NO.1

main88329-B1010iM502,512200812

88329FBOLT, COMPRESSOR, NO.2

main88329-B1030iM502,512200812

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704iM502,512200812

main88318-87705iM502,512200812

main88318-87706iM502,512200812

88365RING, SNAP

main90099-07125iM502,512200812

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iM502,512200812

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-87301iM502,512200812

88410CLUTCH ASSY, MAGNET

main88410-B1050iM502,512200812

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-B1010iM502,512200812

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iM502,512200812

88688NBRACKET, COOLER

main88688-B1050iM502,512200812

8846687701

main88466-87701

9167380830

main91673-80830

16 parts on this diagram · 1 diagram in section
