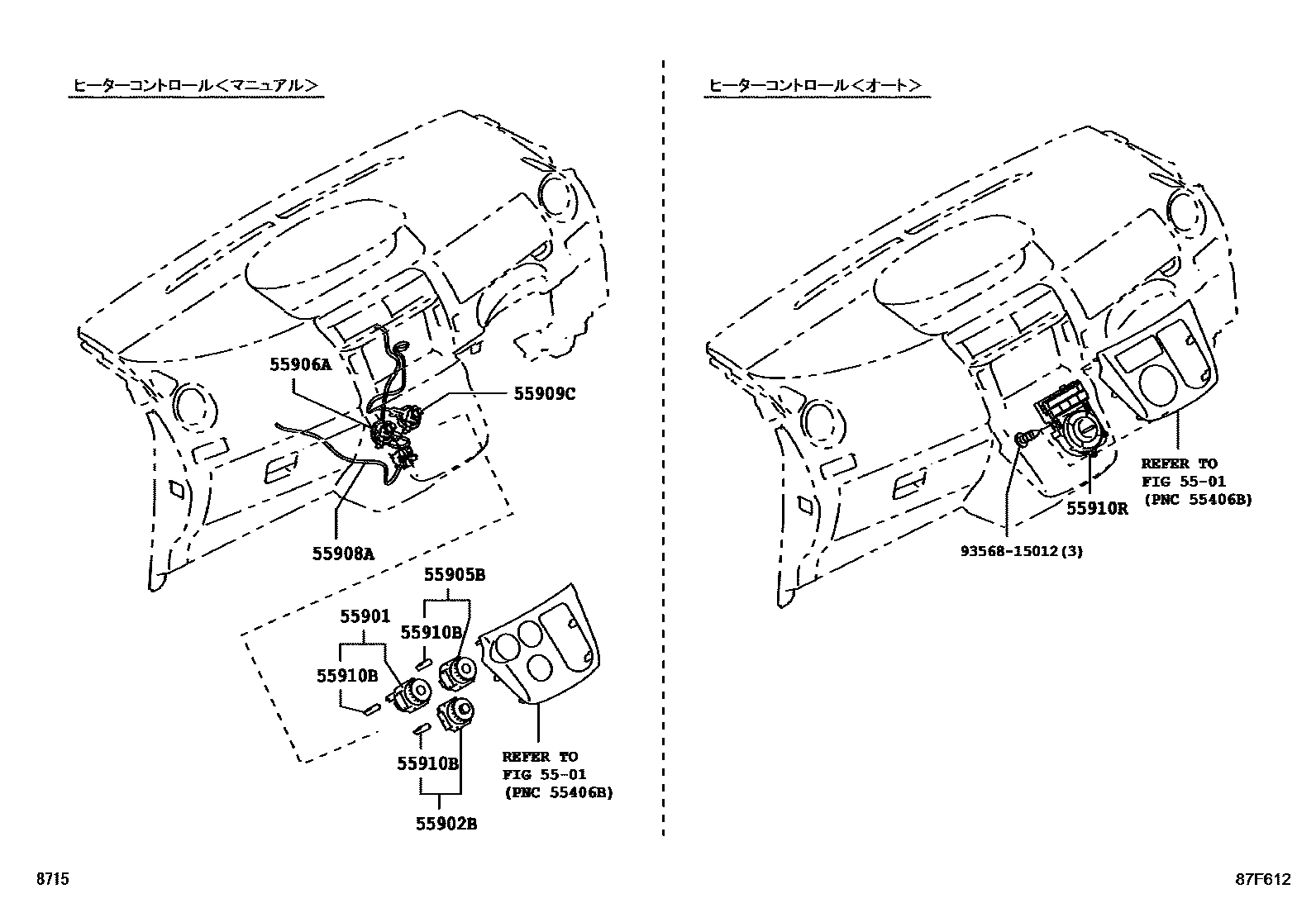

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1�������������� 0002 1������ 0003 1���

5501

55901BASE SUB-ASSY, HEATER CONTROL

main55901-B1040iM502,512..SC,X200812

55902BCONTROL SUB-ASSY, HEATER

main55902-B1100iM502,512..SC,X200812

55905BKNOB, HEATER CONTROL, NO.2

main55903-B1030iM502,512..SC,X200812

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iM502,512..SC,X200812

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52130iM502,512..SC,X200812

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iM502,512..SC,X200812

55910BBULB, HEATER CONTROL

main90010-01113iM502,512..SC,X200812

55910RCONTROL ASSY, HEATER

main55910-B1100iM502,512..G,S200812

9356815012

main93568-15012

10 parts on this diagram · 3 diagrams in section
