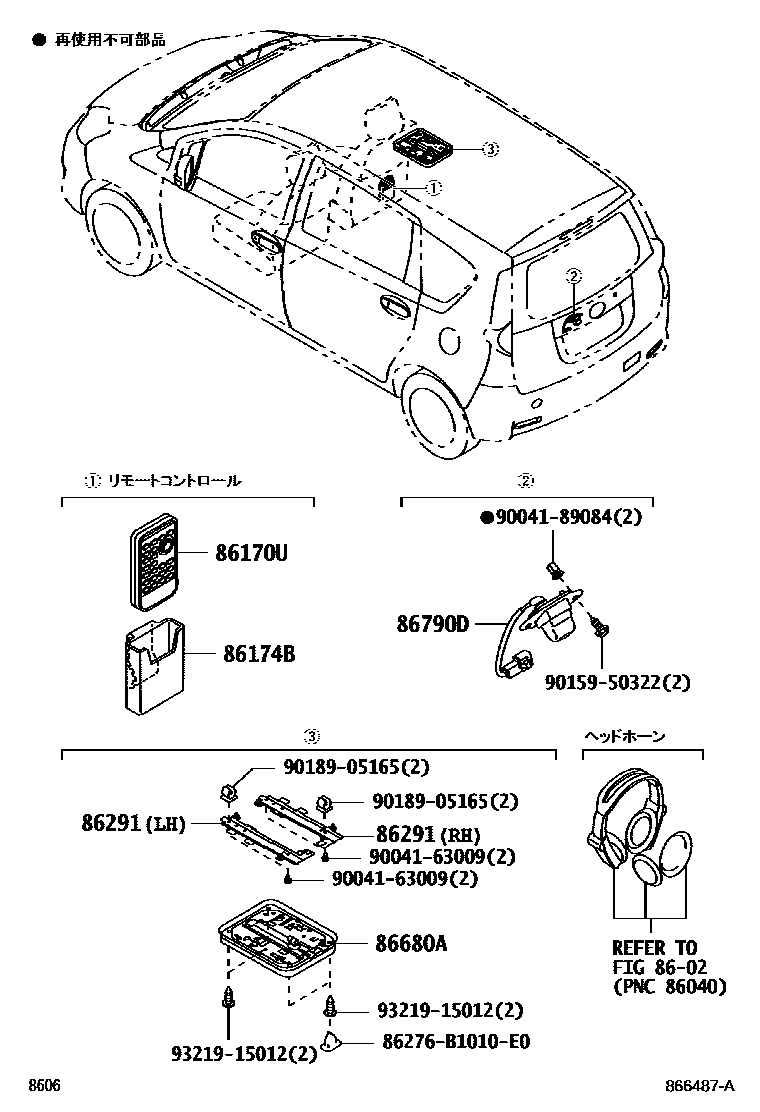

CAMERA & REAR MONITOR DISPLAY

8602

86170USWITCH & VOLUME ASSY, REAR

main86170-B1010iM502,512200812

86174BCASE, SWITCH & VOLUME

main81122-B1010iM502,512200812

86291BRACKET, TELEVISION

main86274-B1020iM502,512200812

main86274-B1030iM502,512200812

86680ADISPLAY ASSY, TELEVISION

main86681-B1010-E0iM502,512200812

86790DCAMERA ASSY, TELEVISION, RR

main86790-B1010iM502,512200812

86276B1010E0COVER, DISC PLAYER

main86276-B1010E0

9004163009

main90041-63009

9004189084

main90041-89084

9015950322

main90159-50322

9018905165

main90189-05165

9321915012

main93219-15012

12 parts on this diagram · 1 diagram in section
