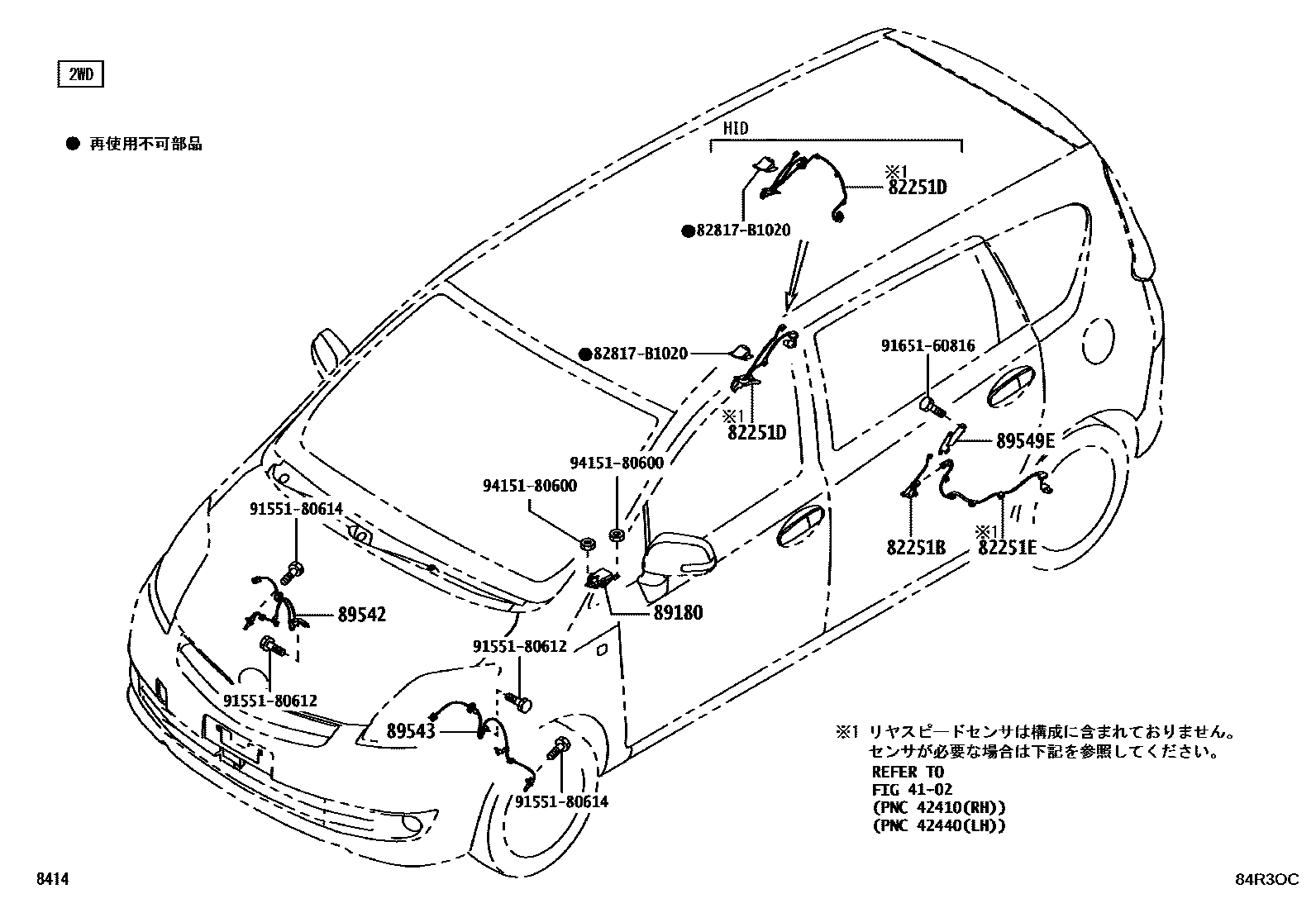

ABS & VSC

0001 12WD 0002 14WD

4102

82251BWIRE, SPEED SENSOR, REAR

main82251-B1070iM502,512200812-201203

82251DWIRE, SPEED SENSOR, RH

main82251-B1040iM502200812-201203

82251EWIRE, SPEED SENSOR, LH

main82251-B1050iM502200812-201203

89180SENSOR ASSY, YAWRATE

main89180-B1030

89542SENSOR, SPEED, FRONT RH

main89542-B1030iM502,512200812

89543SENSOR, SPEED, FRONT LH

main89543-B1030iM502,512200812

89549EBRACKET, SPEED SENSOR

main89549-B1010iM502,512200812

82817B1020PROTECTOR, WIRING HARNESS, NO.1

main82817-B1020

9155180612

main91551-80612

9155180614

main91551-80614

9165160816

main91651-60816

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
