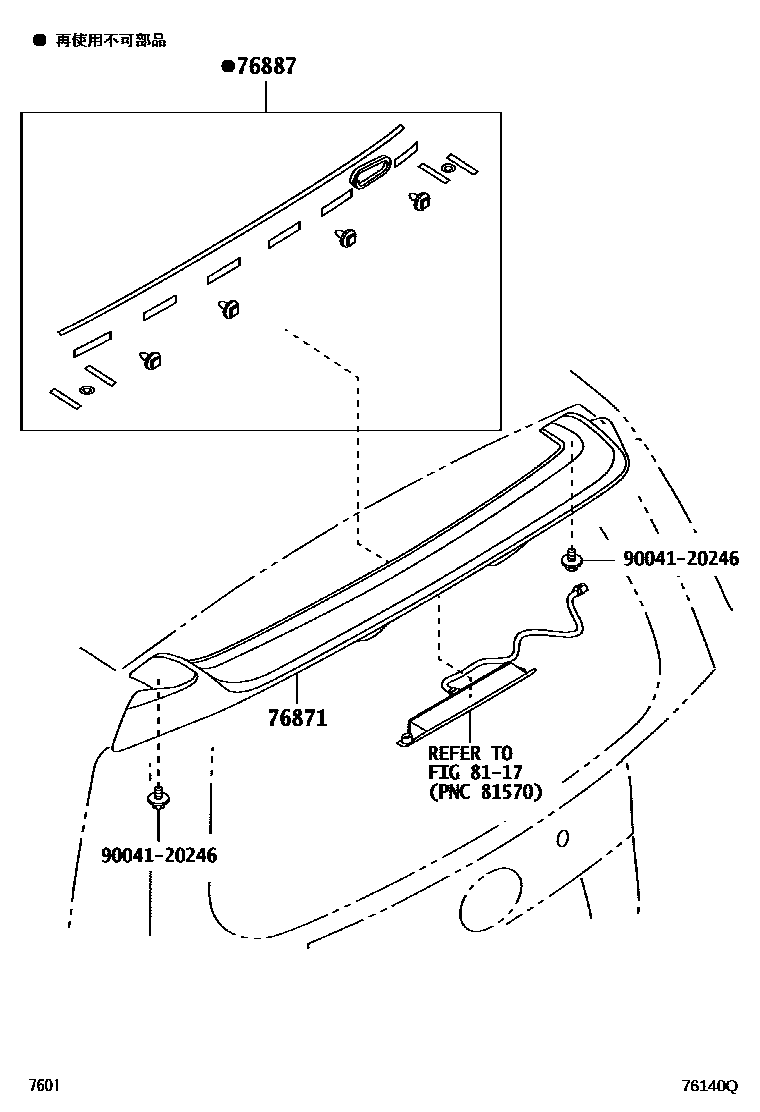

MUDGUARD & SPOILER

76871SPOILER, REAR

main76871-B1030-A0iM502,512..S,SC200812

WHITE PEARL CS.,064

main76871-B1030-B0iM502,512..S,SC200812

SILVER M.M.,1E7

main76871-B1030-C0iM502,512..S,SC200812

BLACK MC.,209

main76871-B1030-D0iM502,512..S,SC200812

ORANGE ME.,R44

main76871-B1030-D1iM502,512..S,SC200812

MAROON MC.,R56

main76871-B1030-D2iM502,512..S,SC200812

SUPER RED 5,3P0

main76871-B1030-E0iM502,512..S,SC200812

BEIGE ME.,4T8

main76871-B1030-F0iM502,512..S,SC200812

YELLOW ME.,Y08

main76871-B1030-H0iM502,512..S,SC200812

AQUA M.M.,774

76887SEAL, REAR SPOILER

main76887-B1030iM502,512..S,SC200812

8117

9004120246

main90041-20246

4 parts on this diagram · 1 diagram in section
