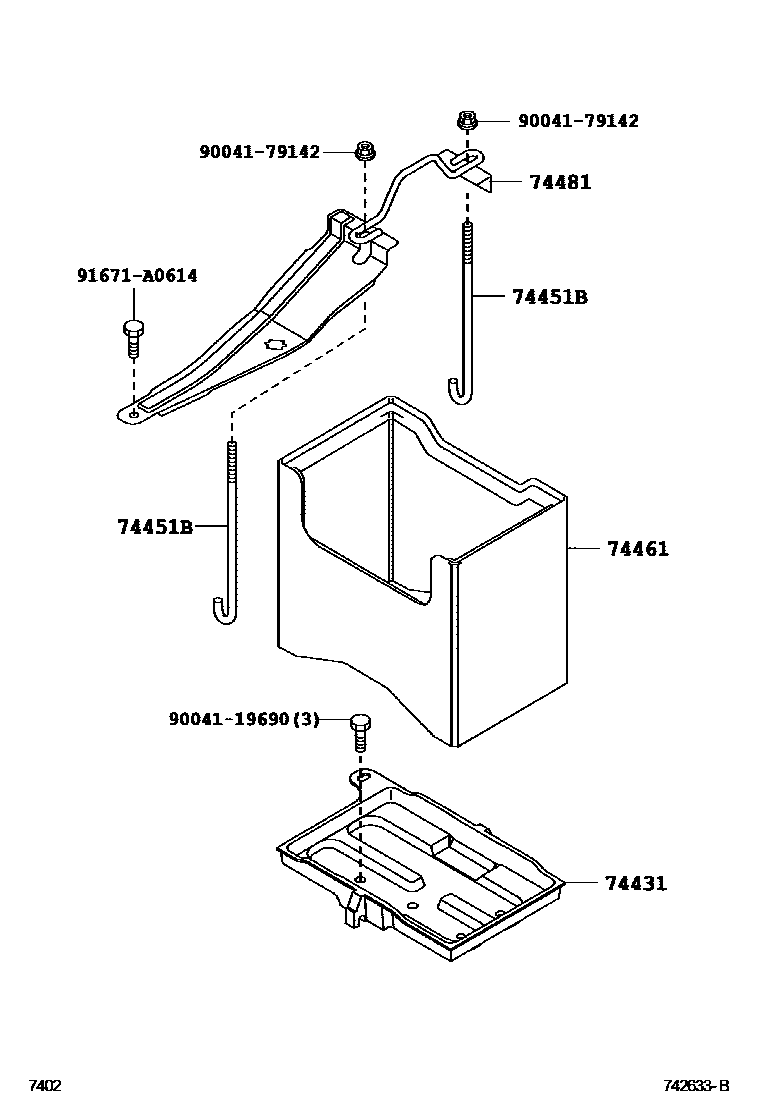

BATTERY CARRIER

74431TRAY, BATTERY

main74411-B1010iM502,512200812-201001

sub74411-B1011

main74411-B1011iM502,512201002

74451BBOLT, BATTERY CLAMP

main74451-B1010iM502,512200812

74461COVER, BATTERY

main74405-97203iM502,512200812-201104

sub74405-B1010

main74405-B1010iM502,512201105

74481CLAMP, BATTERY HOLD DOWN

main74404-B1030iM502,512200812

9004119690

main90041-19690

9004179142

main90041-79142

91671A0614

main91671-A0614

7 parts on this diagram · 1 diagram in section
