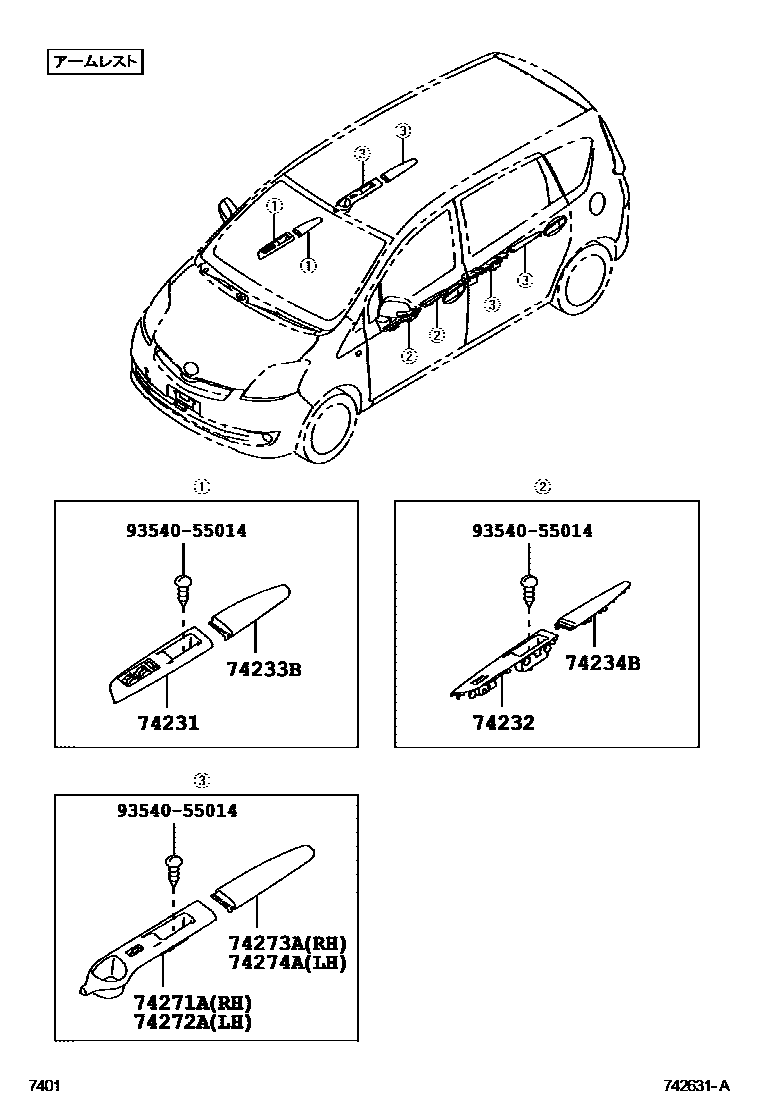

ARMREST & VISOR

0001 1������ 0002 1�����&����������

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-B1060-E0iM502,512200812

GREGE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-B1060-E0iM502,512200812

GREGE,TRIM4#

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-B1010-E0iM502,512200812

GREGE,TRIM4#

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-B1010-E0iM502,512200812

GREGE,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-B1050-E0iM502,512200812

GREGE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-B1050-E0iM502,512200812

GREGE,TRIM4#

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-B1010-E0iM502,512200812

GREGE,TRIM4#

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-B1010-E0iM502,512200812

GREGE,TRIM4#

9354055014

main93540-55014¥60

9 parts on this diagram · 2 diagrams in section
