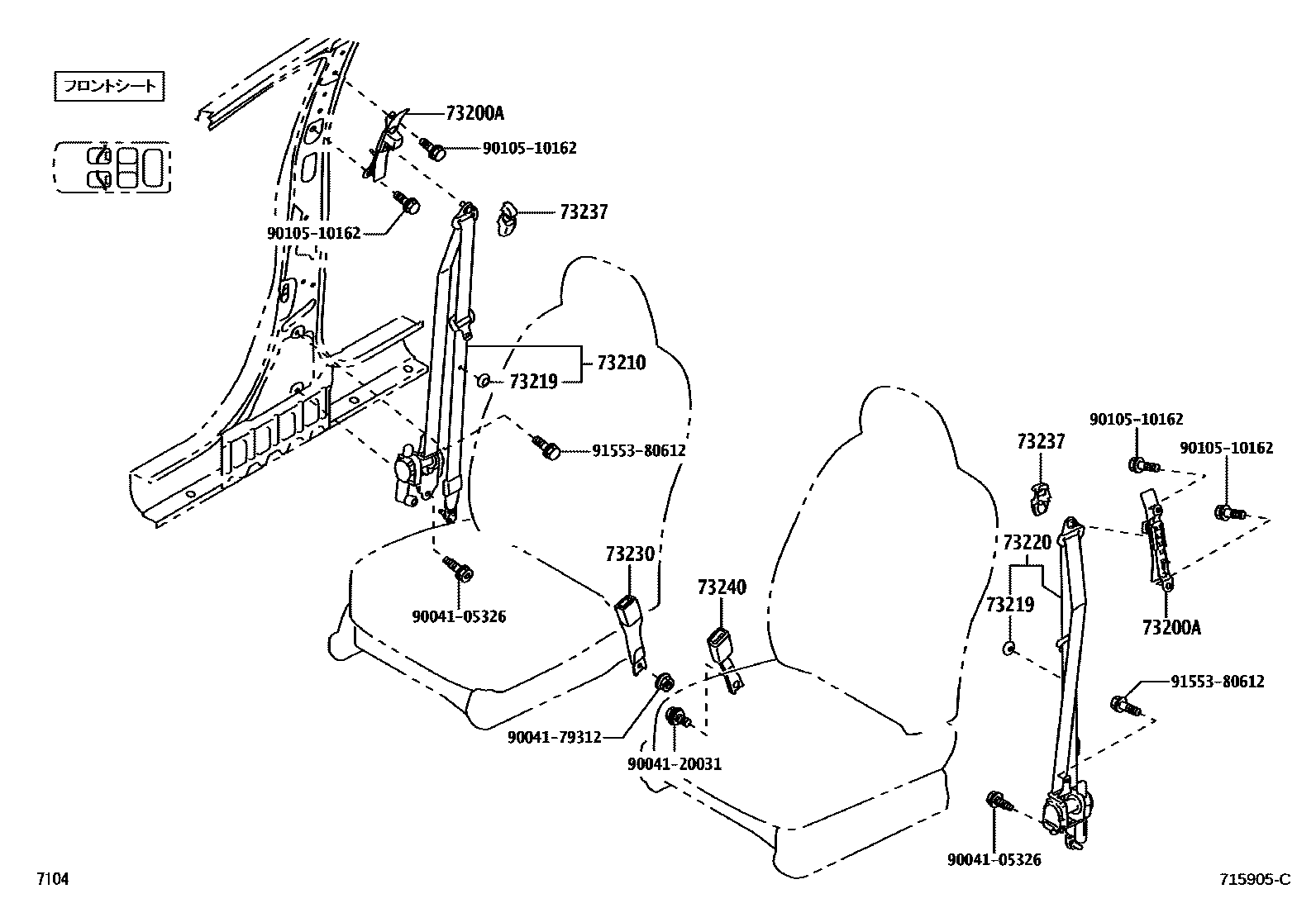

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�� NO.1��� 0003 1�� NO.2���

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-B1020-E0×2iM502,512200812

GREGE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-B1130-C2iM502,512..S,SC200812-201203

main73210-B1130-E1iM502,512..G,X200812-201203

73219STOPPER, TONGUE PLATE

main73690-87401iM502,512200812-201203

main73690-B1010iM502,512200812-201203

main73690-B1020iM502,512200812-201203

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-B1140-C2iM502,512..S,SC200812-201203

main73220-B1140-E1iM502,512..G,X200812-201203

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-B1210-E1iM502,512..G,X200812-201203

GREGE,TRIM4#

main73230-B1210-E2iM502,512..S,SC200812-201203

DK. BROWN,TRIM4#

73237COVER, SHOULDER BELT ANCHOR

main73237-B1010-E0×2iM502,512200812

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-B1180-E1iM502,512..G,X200812-201203

GREGE,TRIM4#

main73230-B1180-E2iM502,512..S,SC200812-201203

DK. BROWN,TRIM4#

9004105326

main90041-05326

9004120031

main90041-20031

9004179312

main90041-79312

9010510162

main90105-10162

9155380612

main91553-80612

12 parts on this diagram · 3 diagrams in section
