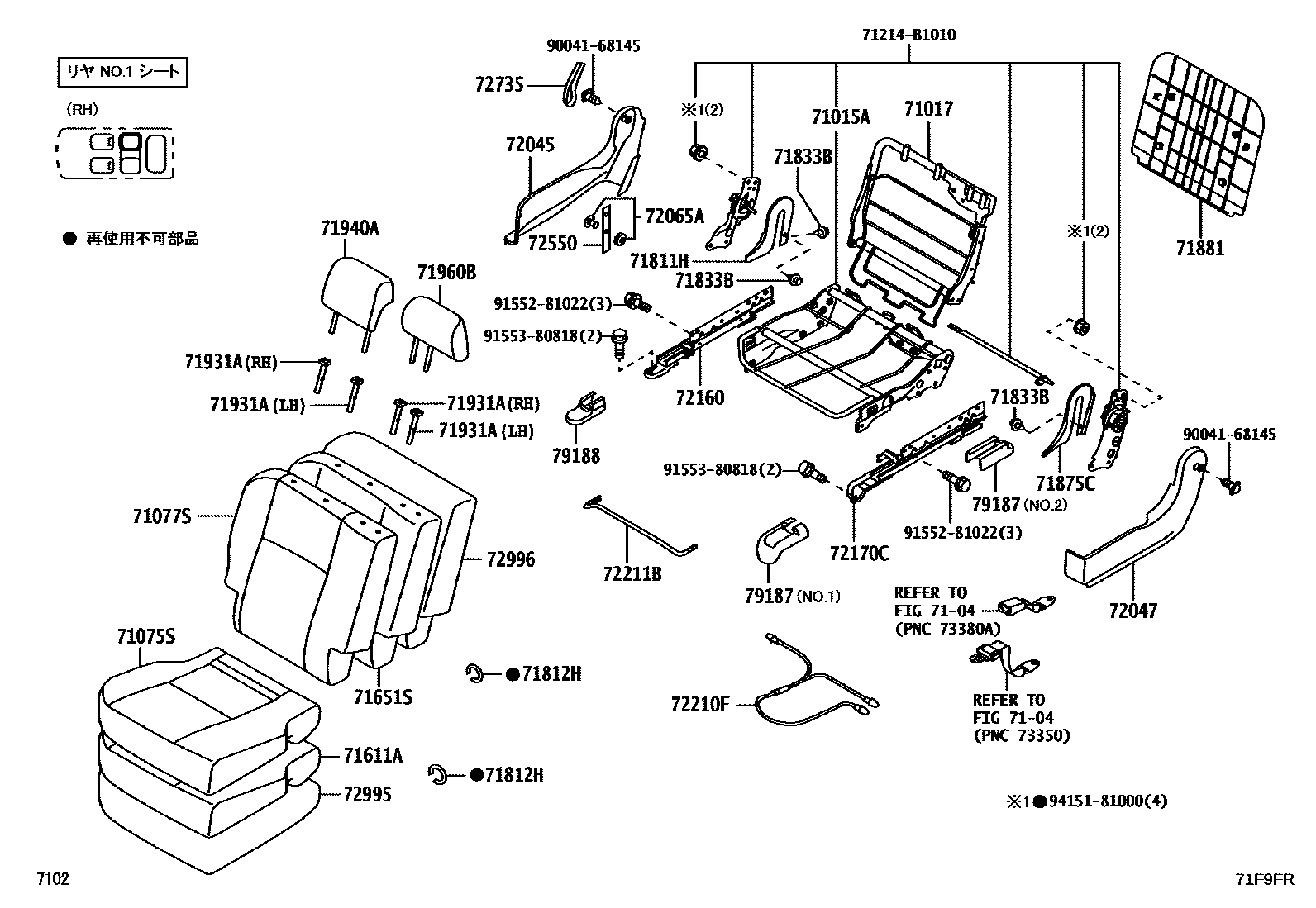

REAR SEAT & SEAT TRACK
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
71017FRAME SUB-ASSY, REAR SEATBACK, RH
7104
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
-,TRIM4#
-,TRIM4#
-,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
-,TRIM4#
-,TRIM4#
-,TRIM4#
71611APAD, REAR SEAT CUSHION, RH
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71811HCOVER, RECLINING ADJUSTER, RH
GREGE,TRIM4#
DK. BROWN,TRIM4#
71812HRING, HOG, SMALL (FOR REAR SEAT)
71833BCLIP (FOR REAR SEAT RECLINING COVER)
GREGE,TRIM4#
DK. BROWN,TRIM4#
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
GREGE,TRIM4#
DK. BROWN,TRIM4#
71881BOARD, REAR SEATBACK, RH
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
-,TRIM4#
-,TRIM4#
-,TRIM4#
71960BHEADREST ASSY, REAR SEAT, CENTER
-,TRIM4#
-,TRIM4#
-,TRIM4#
72045COVER SUB-ASSY, RR SEAT TRACK, OUTER RH
GREGE,TRIM4#
DK. BROWN,TRIM4#
72047COVER SUB-ASSY, RR SEAT TRACK, INNER RH
GREGE,TRIM4#
DK. BROWN,TRIM4#
72065AHOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH
BLACK,TRIM4#
GREGE,TRIM4#
72160TRACK ASSY, REAR SEAT, OUTER RH
72170TRACK ASSY, REAR SEAT, OUTER LH
72170CTRACK ASSY, REAR NO.1 SEAT, INNER RH
72210FCABLE ASSY, SEAT TRACK CONTROL
72211BHANDLE, SEAT TRACK ADJUSTING
72550BAND ASSY, REAR SEATBACK
-,TRIM4#
-,TRIM4#
72735LEVER, REAR SEAT RECLINING RELEASE
GREGE,TRIM4#
DK. BROWN,TRIM4#
72995COVER, REAR SEAT CUSHION, RH
72996COVER, REAR SEATBACK, RH
79187COVER, NO.1 SEAT INNER BRACKET
79188COVER, NO.1 SEAT OUTER BRACKET
DK.GRAY,TRIM4#
71214B1010
9004168145
9155281022
9155380818
9415181000
34 parts on this diagram · 3 diagrams in section
