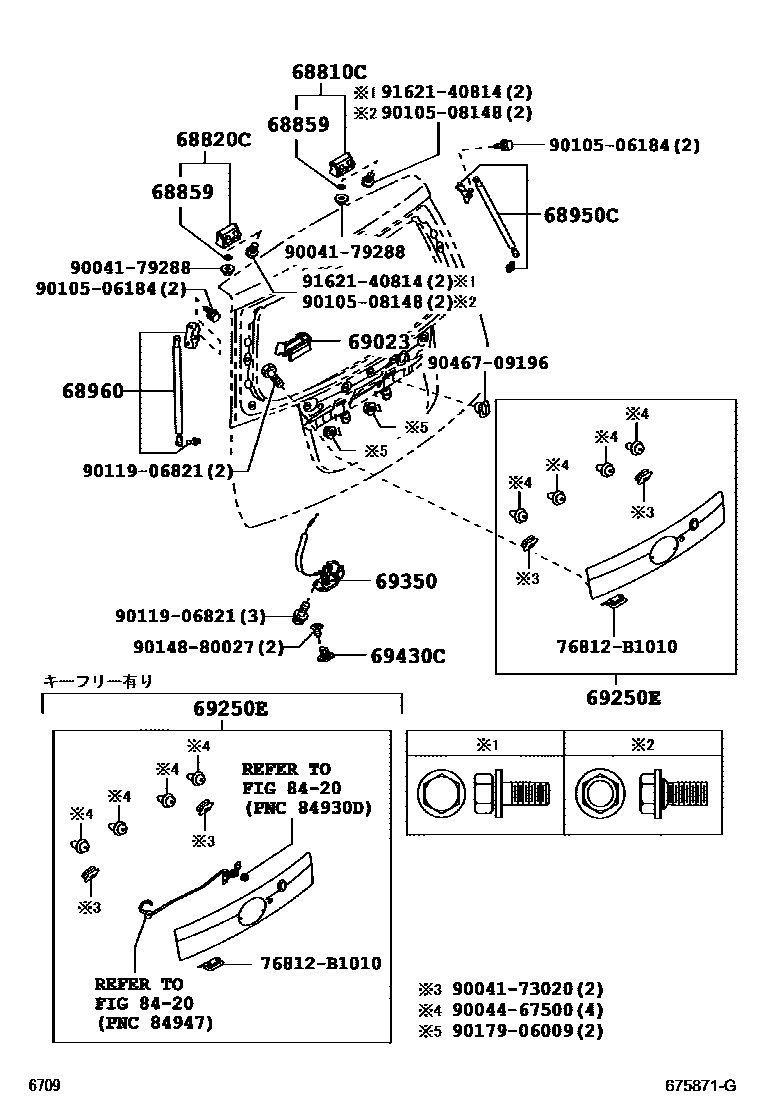

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68859PACKING, BACK DOOR HINGE
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69023HANDLE SUB-ASSY, BACK DOOR OUTSIDE
69250ECOVER ASSY, DOOR OUTSIDE HANDLE
WHITE PEARL CS.,064
SILVER M.M.,1E7
BLACK MC.,209
ORANGE ME.,R44
MAROON MC.,R56
SUPER RED 5,3P0
BEIGE ME.,4T8
YELLOW ME.,Y08
AQUA M.M.,774
WHITE PEARL CS.,064
SILVER M.M.,1E7
BLACK MC.,209
ORANGE ME.,R44
MAROON MC.,R56
SUPER RED 5,3P0
BEIGE ME.,4T8
YELLOW ME.,Y08
AQUA M.M.,774
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
8420
76812B1010GARNISH, BACK DOOR, OUTSIDE LOWER
9004173020
9004179288
9004467500
9010506184
9010508148
9011906821
9014880027
9017906009
9046709196
9162140814
21 parts on this diagram · 1 diagram in section
