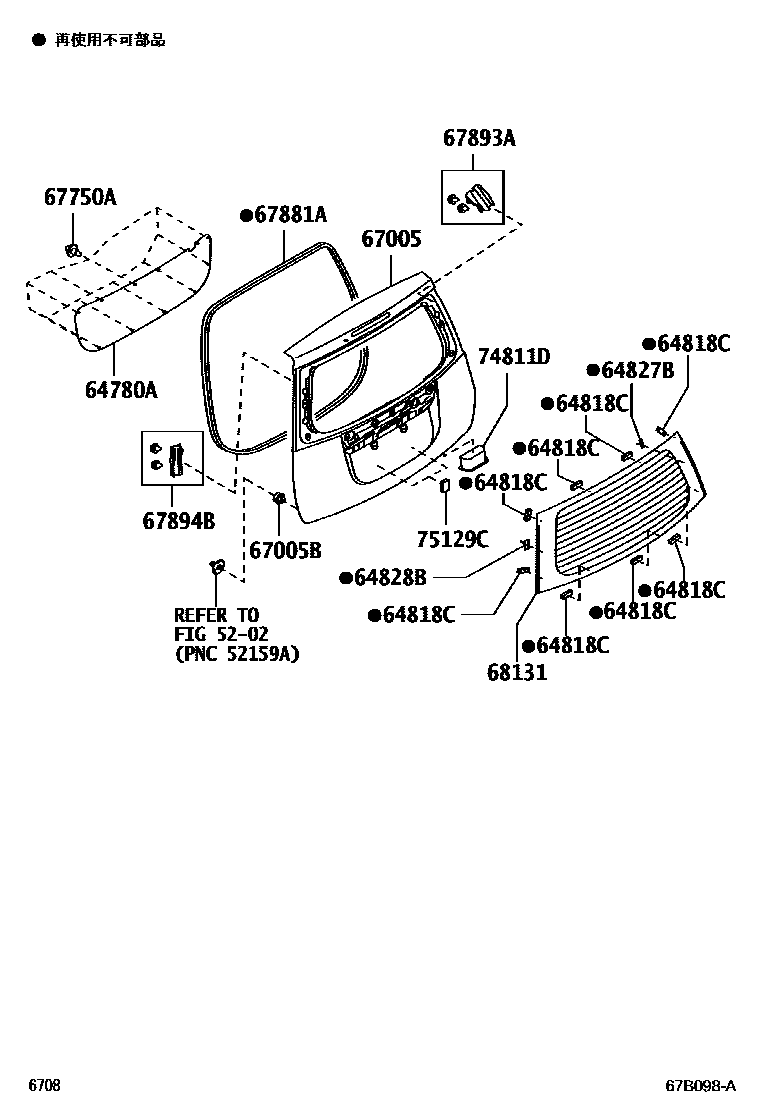

BACK DOOR PANEL & GLASS

5202

64780APANEL ASSY, BACK DOOR TRIM

main64780-B1030-E1iM502,512200812

GREGE,TRIM4#

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-87704iM502,512200812-200903

64827BCLIP, BACK WINDOW GLASS, RH

main64827-87701iM502,512200812

64828BCLIP, BACK WINDOW GLASS, LH

main64827-87701iM502,512200812

67005PANEL SUB-ASSY, BACK DOOR

main67005-B1390iM502,512..G,X200812

main67005-B1400iM502,512..S,SC200812

67005BCUSHION(FOR BACK DOOR PANEL)

main90045-41263iM502,512200812

67750ACLIP(FOR BACK DOOR TRIM)

main90044-67553-E0iM502,512200812-200903

GREGE,TRIM4#

main90044-67579-E1iM502,512201008

GREGE,TRIM4#

main90044-68165-E0iM502,512200904-201007

GREGE,TRIM4#

sub90044-67579

67881AWEATHERSTRIP, BACK DOOR

main67881-B1030iM502,512200812

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-B1020iM502,512200812

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-B1020iM502,512200812

68131GLASS, BACK DOOR

main68105-B1040iM502,512200812-201009

74811DHANDLE, DOOR PULL

main74811-13010-B5iM502,512200812

DK.GRAY

sub74811-13010

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iM502,512200812-201203

14 parts on this diagram · 1 diagram in section
