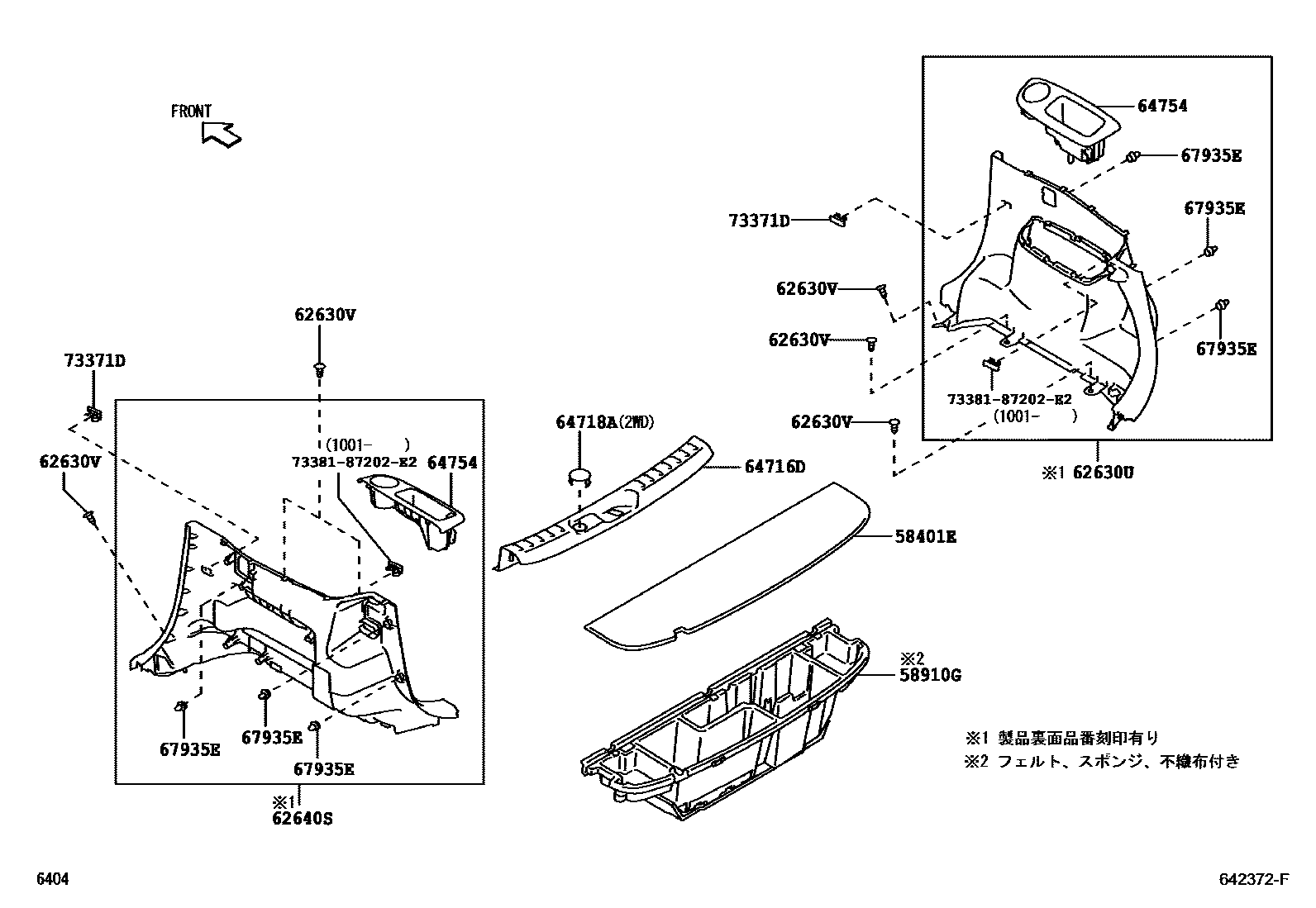

DECK BOARD & DECK TRIM COVER

58401EBOARD SUB-ASSY, DECK

main58401-B1010-E0iM502,512..G,X200812

GREGE,TRIM4#

main58401-B1020-B0iM502,512..S,SC200812

GRAY,TRIM4#

58910GBOX ASSY

main58910-B1040-B0iM502,512200812

DK.GRAY,TRIM4#

62630UPANEL ASSY, QUARTER TRIM, REAR RH

main62630-B1070-E0iM502,512200812-201001

sub04009-125B1

main62630-B1140-E0iM502,512201001-201203

62630VCLIP (FOR QUARTER REAR TRIM)

main90044-68046-E2×6iM502,512200812

GREGE,TRIM4#

62640SPANEL ASSY, QUARTER TRIM, REAR LH

main62640-B1080-E0iM502,512200812-201001

sub04009-126B1

main62640-B1120-E0iM502,512201001-201203

64716DCOVER, DECK TRIM, REAR

main64716-B1040-E0iM502,512200812

GREGE,TRIM4#

main64716-B1050-E0iM502200812

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-52010-E0iM502200812

64754POCKET, QUARTER TRIM

main62594-B1010-E0iM502,512200812-200909

main62594-B1020-E0iM502,512200909

main62595-B1010-E0iM502,512200812-200909

main62595-B1020-E0iM502,512200909

67935ERETAINER, DOOR TRIM

main67771-B2010×6iM502,512200812

73371DHANGER, REAR SEAT SHOULDER BELT

main73371-44020-E3×2iM502,512200812

GREGE,TRIM4#

7338187202E2HOLDER, REAR SEAT BELT

main73381-87202E2

11 parts on this diagram · 1 diagram in section
