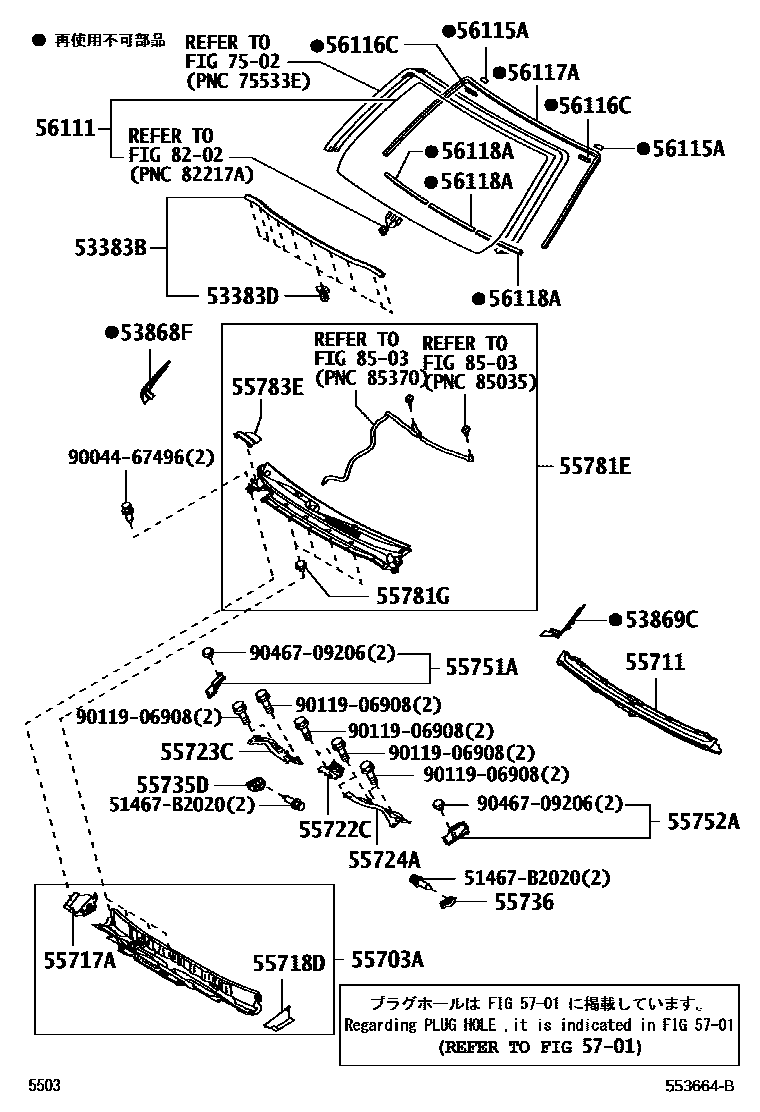

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53868FSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53869CSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
55703APANEL SUB-ASSY, COWL TOP, INNER
55711PANEL, COWL TOP, OUTER
55717APANEL, COWL TOP SIDE, INNER RH
55718DBRACKET, COWL TOP OUTER PANEL, NO.1
55722CBRACE, COWL TOP TO COWL, INNER
55723CREINFORCEMENT, COWL TOP SIDE, RH
55724AREINFORCEMENT, COWL TOP SIDE, LH
55735DSEAL, FRONT AIR SHUTTER, RH
55736SEAL, WATER GUARD PLATE
55751ASHIELD, COWL VENTILATOR SPLASH, RH
55752ASHIELD, COWL VENTILATOR SPLASH, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
5701
7502
8202
8503
51467B2020RETAINER, ENGINE UNDER COVER
9004467496
9011906908
9046709206
31 parts on this diagram · 1 diagram in section
