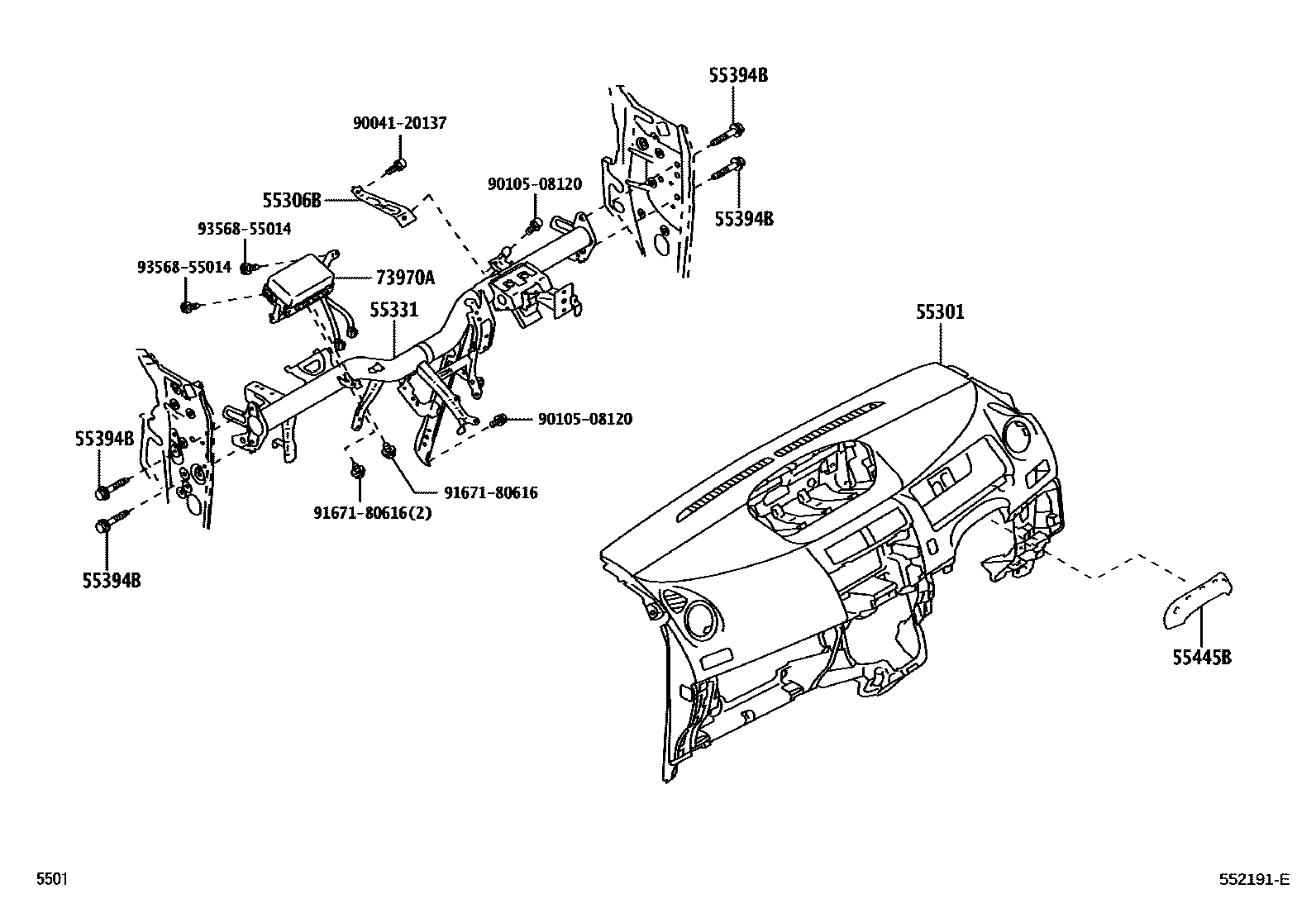

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1������������,��������� 0002 1�������� 0003 1�������� 0004 1��������

55301PANEL SUB-ASSY, INSTRUMENT

main55301-B1030-E0iM502,512200812-201203

DK. BROWN,TRIM4#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55341-B1060iM502,512200812

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B1090iM502,512200812

55394BBOLT, INSTRUMENT PANEL

main55394-B1030×4iM502,512200812

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-B1020iM502,512200812

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B1070iM502,512200812

9004120137

main90041-20137

9010508120

main90105-08120

9167180616

main91671-80616

9356855014

main93568-55014

10 parts on this diagram · 4 diagrams in section
