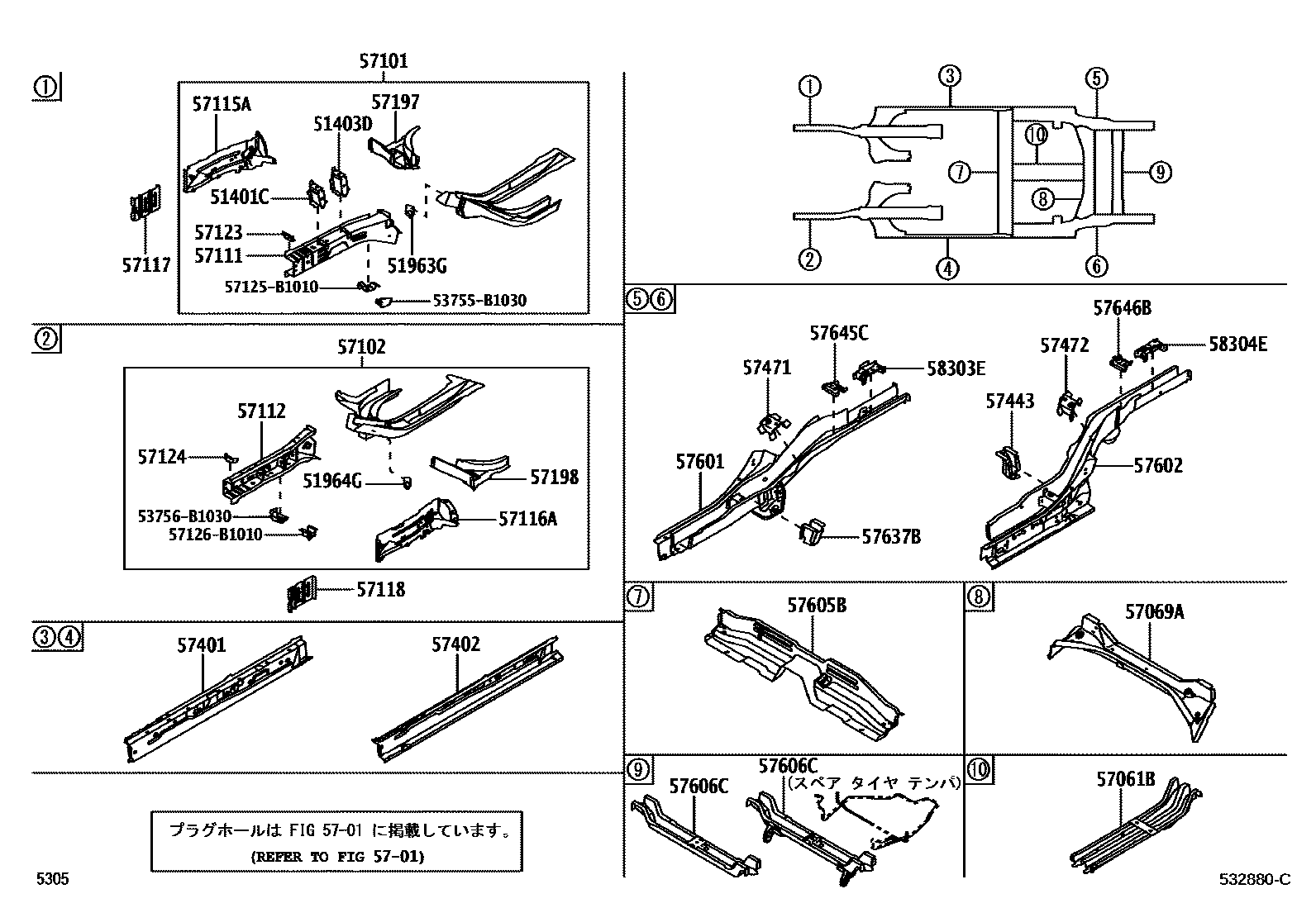

FLOOR SIDE MEMBER

0001 12WD 0002 14WD

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-B1010iM502,512200812

51403DBRACKET SUB-ASSY, ENGINE REAR MOUNTING

main51403-B1010iM502,512200812

51963GHOOK, TRANSPORT, FRONT RH

main51963-B1010iM502,512200812-201203

51964GHOOK, TRANSPORT, FRONT LH

main51963-B1010iM502,512200812-201203

5701

57061BBRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT RH

main57608-B1020iM502,512200812

57069AMEMBER, REAR FLOOR, CENTER

main57069-B1030iM502,512200812

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-B1030iM502,512200812

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-B1040iM502,512200812

57111MEMBER, FRONT SIDE, RH

main57111-B1020iM502,512200812

57112MEMBER, FRONT SIDE, LH

main57112-B1030iM502,512200812

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-B1030iM502,512200812

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-B1010iM502,512200812

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-B1020iM502,512200812

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-B1020iM502,512200812

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-B1010iM502,512200812

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-B1010iM502,512200812

57197BOX, TORQUE, FRONT RH

main57197-B1010iM502,512200812

57198BOX, TORQUE, FRONT LH

main57198-B1010iM502,512200812

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-B1030iM502,512200812

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-B1030iM502,512200812

57443REINFORCEMENT, CENTER FLOOR SIDE MEMBER

main57066-B1010iM502200812

main57066-B1020iM512200812

57471REINFORCEMENT, SEAT BELT ANCHOR TO FLOOR MEMBER, RH

main58298-B1020iM502,512200812

57472REINFORCEMENT, SEAT BELT ANCHOR TO FLOOR MEMBER, LH

main58299-B1020iM502,512200812

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B1050iM502200812

main57601-B1060iM512200812

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B1050iM502200812

main57602-B1060iM512200812

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-B1050iM502,512200812

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-B1060iM512200812-201203

main57606-B1040supersedes 57606-B1030iM502..X200812-201203

57637BREINFORCEMENT, REAR FLOOR SIDE MEMBER, CENTER RH

main57637-B1010iM502200812

main57637-B1020iM512200812

57645CREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 RH

main57645-B1020iM502,512200812

57646BREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 LH

main57646-B1020iM502,512200812

58303EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main51561-B1010iM502,512200812

58304EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main51562-B1010iM502,512200812

53755B1030RETAINER, FRONT FRAME SUPPORT

main53755-B1030

53756B1030WEATHERSTRIP, FRONT FENDER APRON TO FRAME, NO.1

main53756-B1030

57125B1010BRACKET, FRONT SIDE MEMBER, RH

main57125-B1010

57126B1010BRACKET, FRONT SIDE MEMBER, LH

main57126-B1010

37 parts on this diagram · 2 diagrams in section
