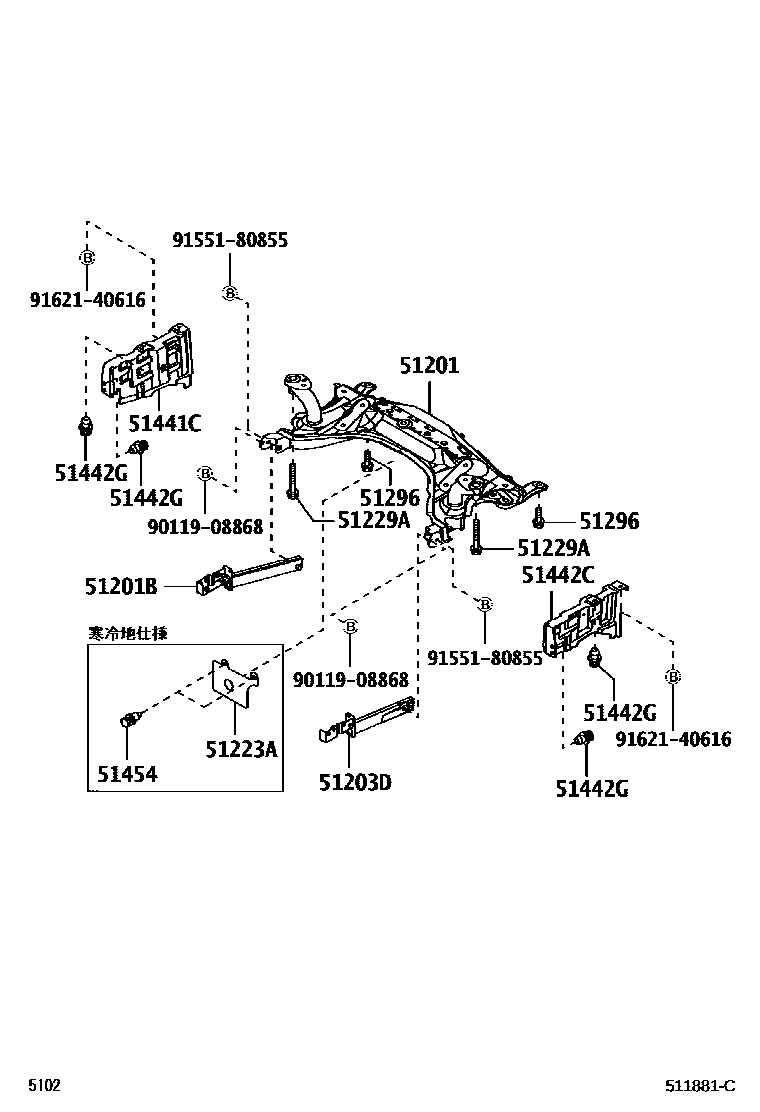

SUSPENSION CROSSMEMBER & UNDER COVER

0001 12WD 0002 14WD

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B1040iM502200812-201104

main51201-B1041iM502201105

main51201-B1100iM512200812-201106

main51201-B1101iM512201107

51201BCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH

main51205-B1020iM502,512200812

51203DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH

main51206-B1020iM502,512200812

51223ACOVER, ENGINE MOUNTING HOLE

main51223-B1010iM502200812

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-01638×2iM502,512200812-201203

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main91672-01025×2iM502,512200812-201203

51441CCOVER, ENGINE UNDER, RH

main51441-B1040iM502,512200812

51442CCOVER, ENGINE UNDER, LH

main51442-B1030iM502,512200812

51442GCLIP, ENGINE UNDER COVER, NO.1

main90044-68320×4iM502,512200812-201203

sub90044-68378

51454CLIP

main90044-67517×2iM502200812-201203

9011908868

main90119-08868

9155180855

main91551-80855

9162140616

main91621-40616

13 parts on this diagram · 2 diagrams in section
