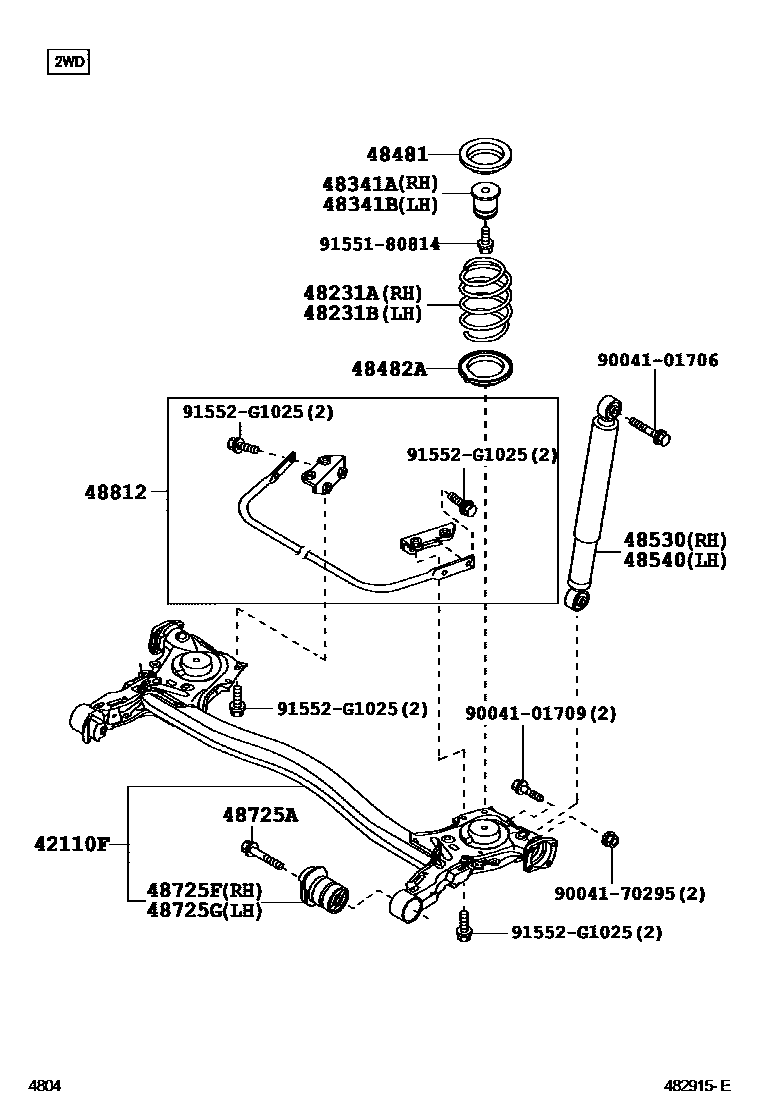

REAR SPRING & SHOCK ABSORBER

0001 12WD 0002 12WD 0003 12WD 0004 14WD

42110FBEAM ASSY, REAR AXLE

main48710-B1100iM502200812-201005

main48710-B1101iM502201006-201102

sub48710-B1102

main48710-B1102iM502201103-201106

48231ASPRING, COIL, REAR RH

main48231-B1160iM502200812-201203

main48231-B1170iM512200812-201203

48231BSPRING, COIL, REAR LH

main48231-B1160iM502200812-201203

main48231-B1170iM512200812-201203

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-B1030iM502200812-201203

main48341-B1040iM512200812-201203

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-B1030iM502200812-201203

main48341-B1040iM512200812-201203

48481SEAT, REAR SPRING, UPPER

main48481-B1010iM512200812-201203

main48481-B2010iM502200812-201203

48482ASEAT, REAR SPRING, LOWER

main48482-B1020iM502200812-201203

sub48482-B1021

main48482-B1030iM512200812-201203

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-B1170iM502..G,S200812-201203

main48531-B1180iM512200812-201203

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-B1170iM502..G,S200812-201203

main48531-B1180iM512200812-201203

48725ABOLT(FOR LOWER CONTROL ARM)

main48718-B1020iM502200812

48725FBUSH, REAR AXLE CARRIER, RH

main48725-B1080iM502200812

48725GBUSH, REAR AXLE CARRIER, LH

main48725-B1080iM502200812

48812BAR, STABILIZER, REAR

main48083-B1050iM502200812-201203

main48812-B1030iM512200812-201203

9004101706

main90041-01706

9004101709

main90041-01709

9004170295

main90041-70295

9155180814

main91551-80814

91552G1025

main91552-G1025

18 parts on this diagram · 4 diagrams in section
