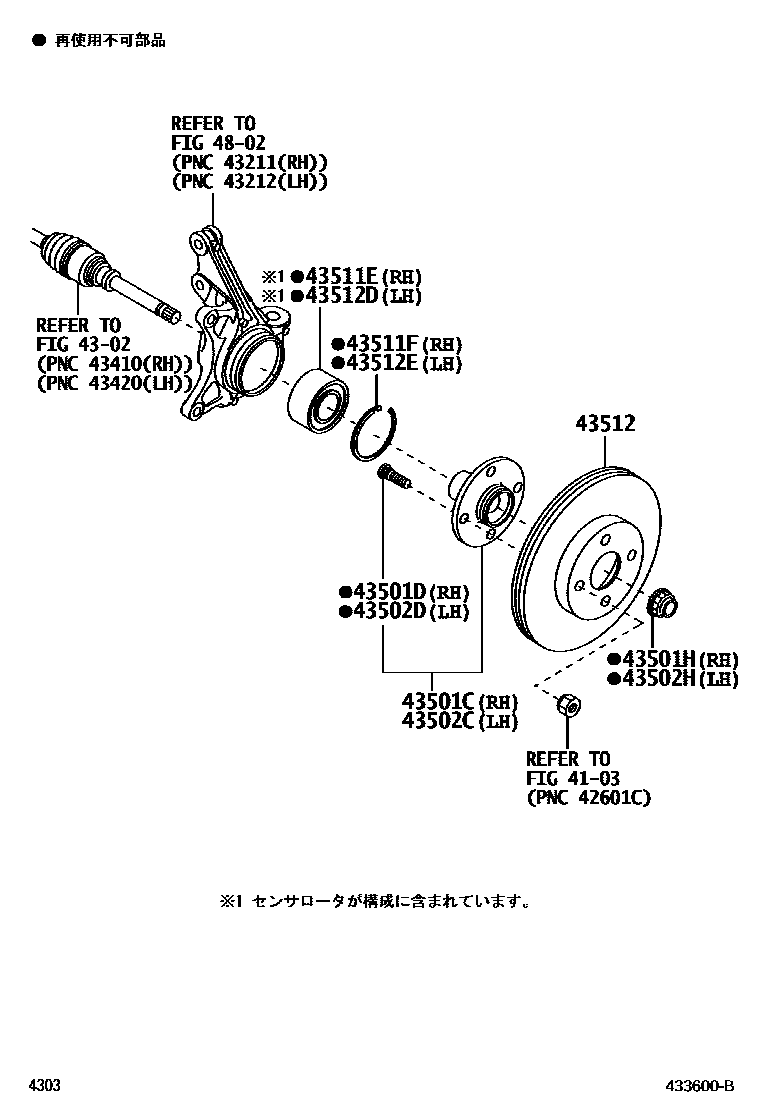

FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-B1030iM502,512200812

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056iM502,512200812

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iM502,512200812-201203

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-B1030iM502,512200812

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056iM502,512200812

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iM502,512200812-201203

43511EBEARING (FOR FRONT AXLE HUB RH)

main90043-63363iM502,512200812-201203

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21188iM502,512200812

43512DISC, FRONT

main43512-52120iM502200812

main43512-52130iM512200812

43512DBEARING (FOR FRONT AXLE HUB LH)

main90043-63363iM502,512200812-201203

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21188iM502,512200812

4802

14 parts on this diagram · 1 diagram in section
