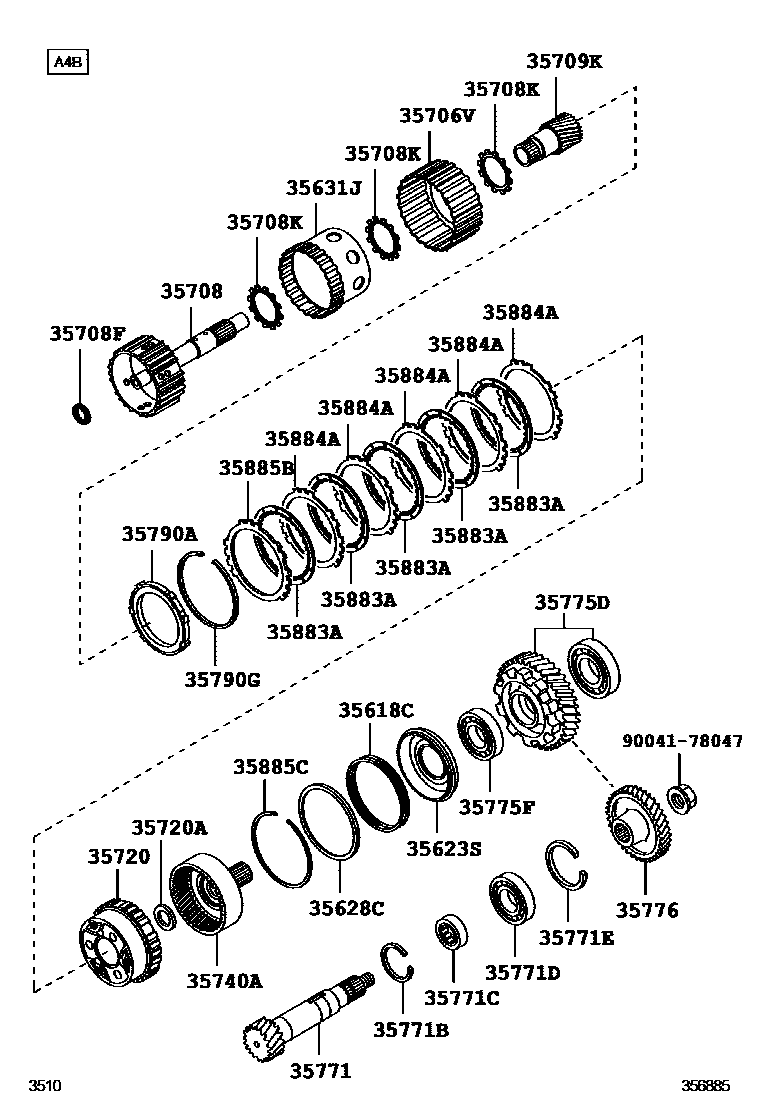

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35618CRETURN SPRING SUB-ASSY, 1ST & REVERSE
35628CSEAT, 1ST & REVERSE BRAKE PISTON RETURN SPRING
35631JHUB, FORWARD CLUTCH, NO.1
sub35631-B1010
35706VGEAR SUB ASSY, PLANETARY SUN
35708SHAFT SUB-ASSY, INTERMEDIATE
35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
35708KBEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)
35709KGEAR SUB-ASSY, REAR PLANETARY
35720GEAR ASSY, FRONT PLANETARY
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
35740AGEAR ASSY,FRONT PLANETARY RING
35771BRING, HOLE SNAP (FOR OUTPUT SHAFT, NO.1)
35771CROLLER BEARING, OUTPUT SHAFT
35771DBALL BEARING, OUTPUT SHAFT
35771ERING, HOLE SNAP (FOR OUTPUT SHAFT, NO.2)
35775DGEAR KIT, RIDUCTION DRIVE
35775FBEARING, RADIAL BOLL
35776GEAR, PRIMARY REDUCTION DRIVEN
35790ACLUTCH ASSY, 1 WAY
sub35790-B1030
35790GHOLE SNAP RING (FOR 1WAY CLUTCH)
35883ADISC, BRAKE
35884APLATE,BRAKE
35885BFLANGE, BRAKE
35885CRING,HOLE SNAP (FOR CLUTCH PLATE)
sub90045-21194
9004178047
main90041-78047
27 parts on this diagram · 1 diagram in section
