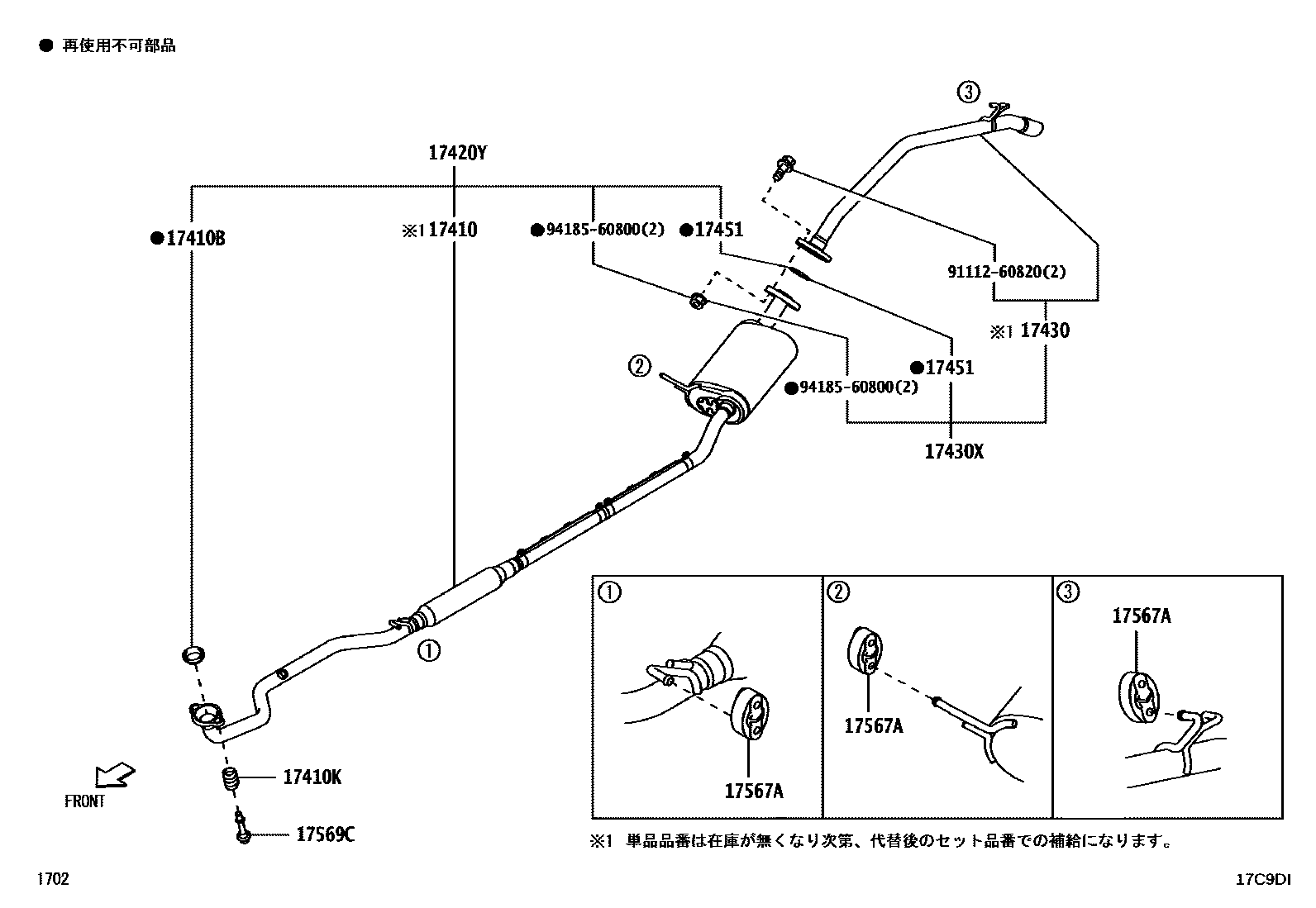

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-B1230i3SZVE..M502,512200812

sub17420-B9600

17410BGASKET, EXHAUST PIPE

main17451-97503i3SZVE..M502200812-200909

sub17451-B1031

main17451-B1031i3SZVE..M512200812

17410KSPRING, EXHAUST PIPE

main17152-B2010i3SZVE..M502,512200812-201203

17420YPIPE SET, EXHAUST, FRONT

main17420-B9600i3SZVE..M502,512200812-201203

17430PIPE ASSY, EXHAUST, TAIL

main17430-B1040i3SZVE..M502,512200812-201203

sub17430-B9620

17430XPIPE SET, EXHAUST TAIL

main17430-B9620i3SZVE..M502,512200812-201203

17451GASKET, EXHAUST PIPE

main90917-06039i3SZVE..M502,512200812

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-B2010i3SZVE..M502,512200812

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97201i3SZVE..M502,512200812

9111260820

main91112-60820

9418560800

main94185-60800

11 parts on this diagram · 1 diagram in section
