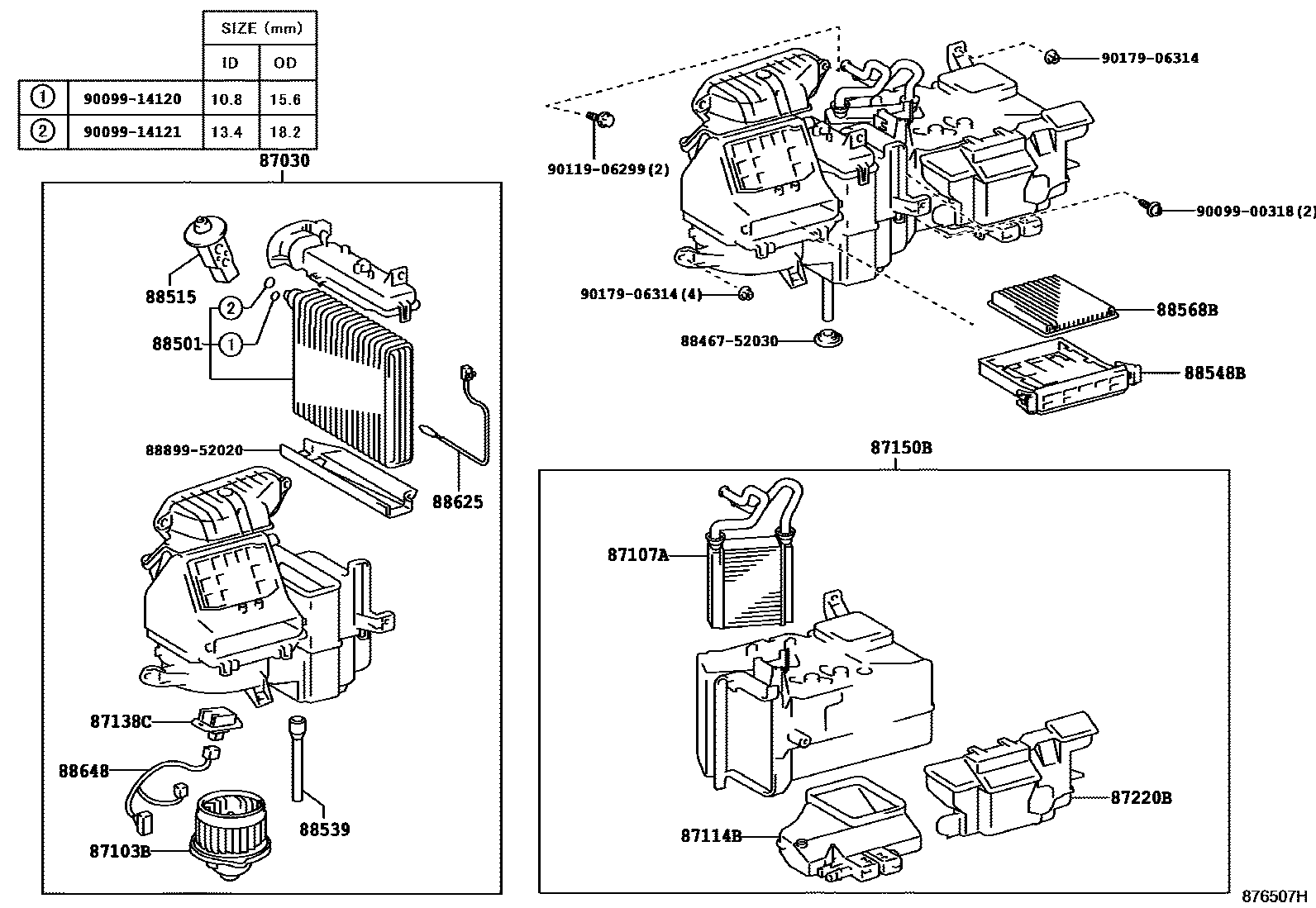

HEATING & AIR CONDITIONING - COOLER UNIT
87030BLOWER ASSY, AIR CONDITIONER
87107AUNIT SUB-ASSY, HEATER RADIATOR
87138CRESISTOR, BLOWER
87150BRADIATOR ASSY, HEATER
87220BDUCT ASSY, AIR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88548BCASE, AIR FILTER
88568BFILTER, AIR
88625THERMISTOR, COOLER, NO.1
88648WIRING, COOLER, NO.1
8846752030CUSHION, COOLER CONDENSER, NO.1
main88467-52030
8889952020COVER, EVAPORATOR
main88899-52020
9009900318
main90099-00318
9009914120
main90099-14120
9009914121
main90099-14121
9011906299
main90119-06299
9017906314
main90179-06314
21 parts on this diagram · 4 diagrams in section
