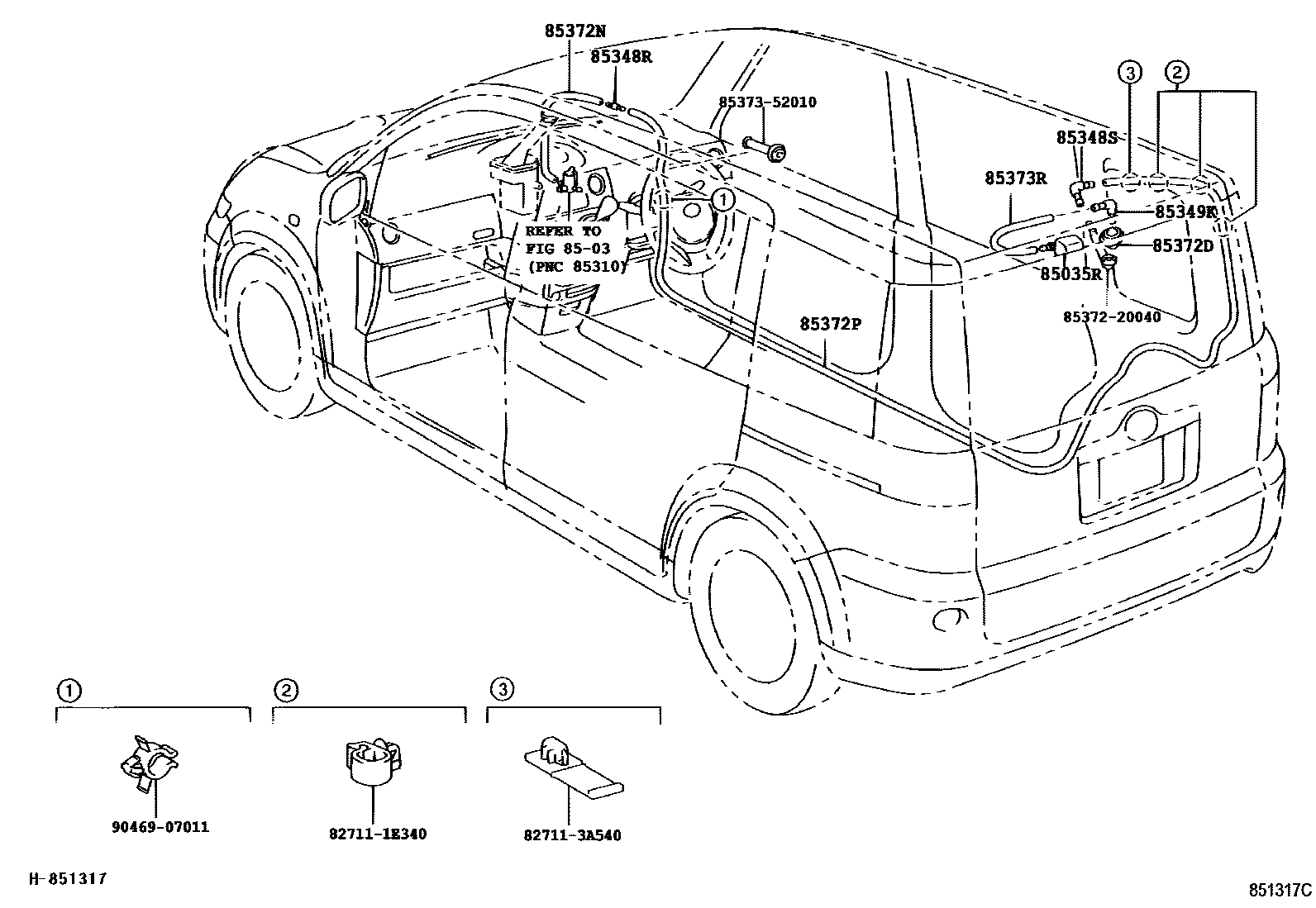

REAR WASHER

0001 1 0002 1

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52070iNCP8#200309-201008

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNCP8#200309-201008

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNCP8#200309-201008

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNCP8#200309-201008

85372DGROMMET, REAR WASHER HOSE

main85372-20020iNCP8#¥390200309-201008

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNCP8#200605-201008

main90099-33815iNCP8#200309-200605

sub90099-33080

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-59330iNCP8#200309-201008

main90099-59363iNCP8#201106

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33178iNCP8#200406-200605

main90099-33299iNCP8#200605-201008

main90445-07065iNCP8#¥430200309-200406

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340¥100

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540¥90

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537352010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-52010¥190

9046907011

main90469-07011¥110

14 parts on this diagram · 2 diagrams in section
