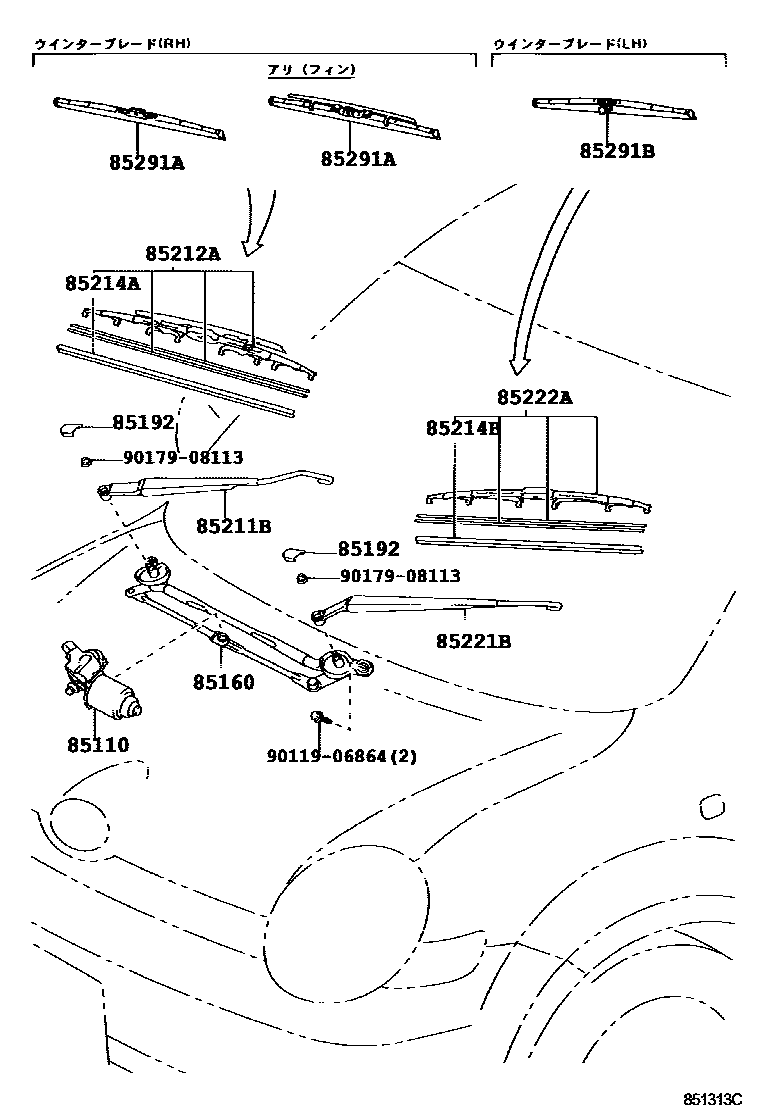

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52180iNCP8#200309-200404

main85110-52270iNCP8#200409-200708

sub85110-60370

main85110-52270iNCP8#200409-200708

sub85110-60370

main85110-52360iNCP8#200404-201008

sub85110-52370

main85110-60370iNCP8#200709-201008

main85110-60370iNCP8#200709-201008

85160LINK ASSY, WINDSHIELD WIPER

main85150-52160iNCP8#200309-201008

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iNCP8#200309-201008

85211BARM, FRONT WIPER, RH

main85211-52160iNCP8#200309-201008

85212ABLADE, FR WIPER, RH

main85212-46010iNCP8#200309-201008

85214ARUBBER, WIPER, RH

main85214-48010iNCP8#200309-201008

85214BRUBBER, WIPER, LH

main85214-12300iNCP8#200309-200606

sub85214-12301

main85214-12301iNCP8#200606-201008

85221BARM, FRONT WIPER, LH

main85221-52190iNCP8#200309-201008

85222ABLADE, FR WIPER, LH

main85222-52120iNCP8#200309-200606

sub85222-52121

main85222-52121iNCP8#200606-201008

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44080iNCP8#200309-201506

main85291-44080iNCP8#200309-200605

9011906864

main90119-06864

9017908113

main90179-08113

13 parts on this diagram · 1 diagram in section
