ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iNCP8#200309-201008

85910FRELAY, COMPUTER (FOR EFI)

main90987-02027iNCP8#200309-201506

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-35020iNCP81200309-201008

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP81200309-201008

main89422-22030iNCP85200309-201008

main89422-33030iNCP81200508-201008

89440SENSOR ASSY, DECELERATION

main89440-52030iNCP81200309-200508

main89440-52050iNCP81200508-201309

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP85200309-201409

89661COMPUTER, ENGINE CONTROL

main89661-52A10iNCP81..DICE201106-201309

main89661-52A10iNCP81..DICE201106-201309

main89661-52A10iNCP81201309

main89661-52A20iNCP81201106-201309

main89661-52B90iNCP85201106-201409

main89661-52C60iNCP81200408-200508

main89661-52E50iNCP81200605-200705

sub89661-52E51

main89661-52E50iNCP81200508-200605

sub89661-52E51

main89661-52E51iNCP81200706-201008

main89661-52E80iNCP81..G200605-200705

sub89661-52E81

main89661-52E81iNCP81..G200706-201008

main89661-5C310iNCP85200309-200801

sub89661-5C311

main89661-5C311iNCP85200802-201008

main89666-52390iNCP81200309-200408

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52180iNCP81200309-201008

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52190iNCP85200309-201409

main89668-52200iNCP81200309-201008

8271552A10BRACKET,WIRING HARNESS CLAMP

main82715-52A10

9011606166

main90116-06166

9015950138

main90159-50138

9043012005

main90430-12005

9155180814

main91551-80814

9331915010

main93319-15010

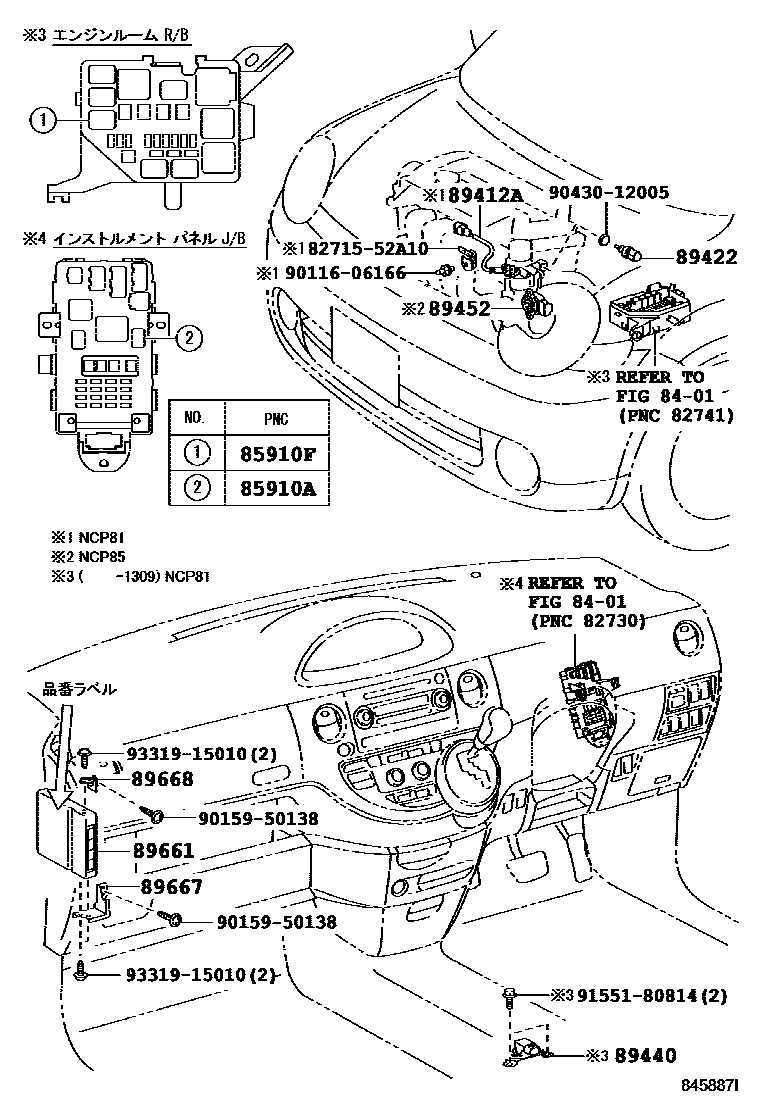

16 parts on this diagram · 1 diagram in section
