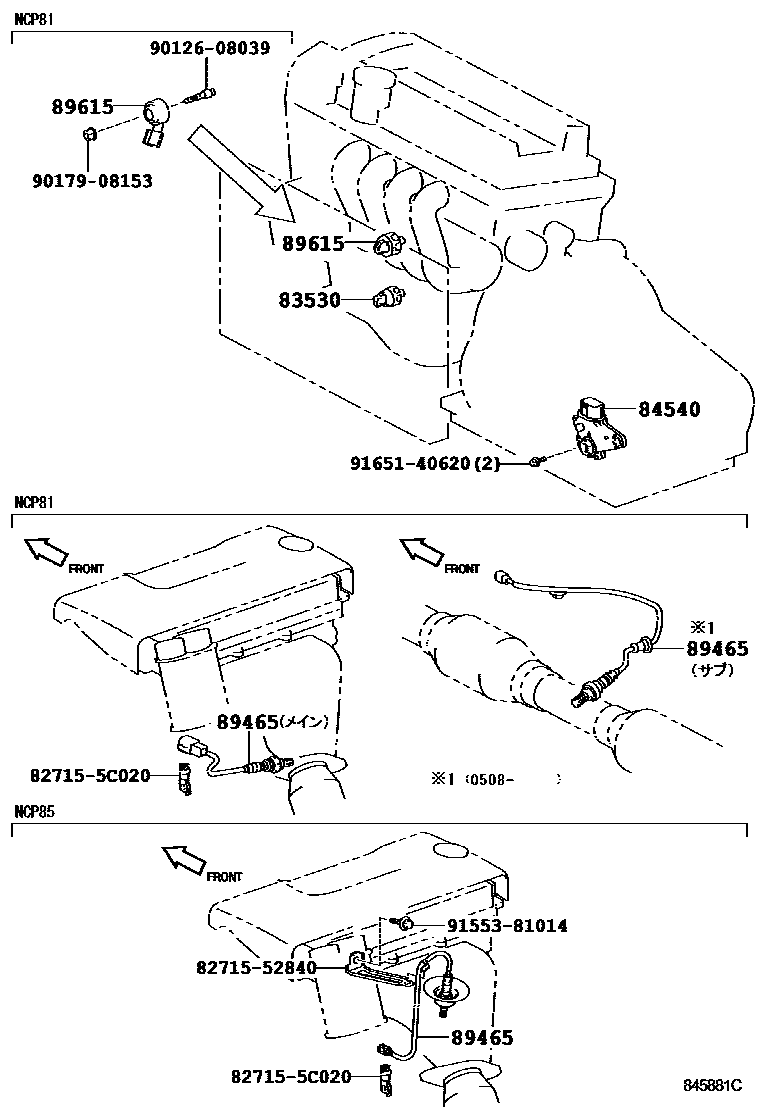

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1������-� 0004 1�������� �������� 0005 1��� 0006 1������������ 0007 1������������ 0008 1������� 0009 1���,�-�,��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP8#200309-201008

main83530-60020iNCP8#200309-201008

84540SWITCH ASSY, NEUTRAL START

main84540-52050iNCP85200309-201409

main84540-52070iNCP81200309-201506

89465SENSOR, OXYGEN

main89465-20810iNCP81200309-201008

main89465-52210iNCP85200309-201008

main89465-52440iNCP81200508-201008

main89465-52620iNCP85201106-201409

main89465-52680iNCP81201106

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP81200309-201008

main89615-52030iNCP85200309-201008

8271552840BRACKET,WIRING HARNESS CLAMP

main82715-52840

827155C020BRACKET,WIRING HARNESS CLAMP

main82715-5C020

9012608039

main90126-08039

9017908153

main90179-08153

9155381014

main91553-81014

9165140620

main91651-40620

10 parts on this diagram · 9 diagrams in section
