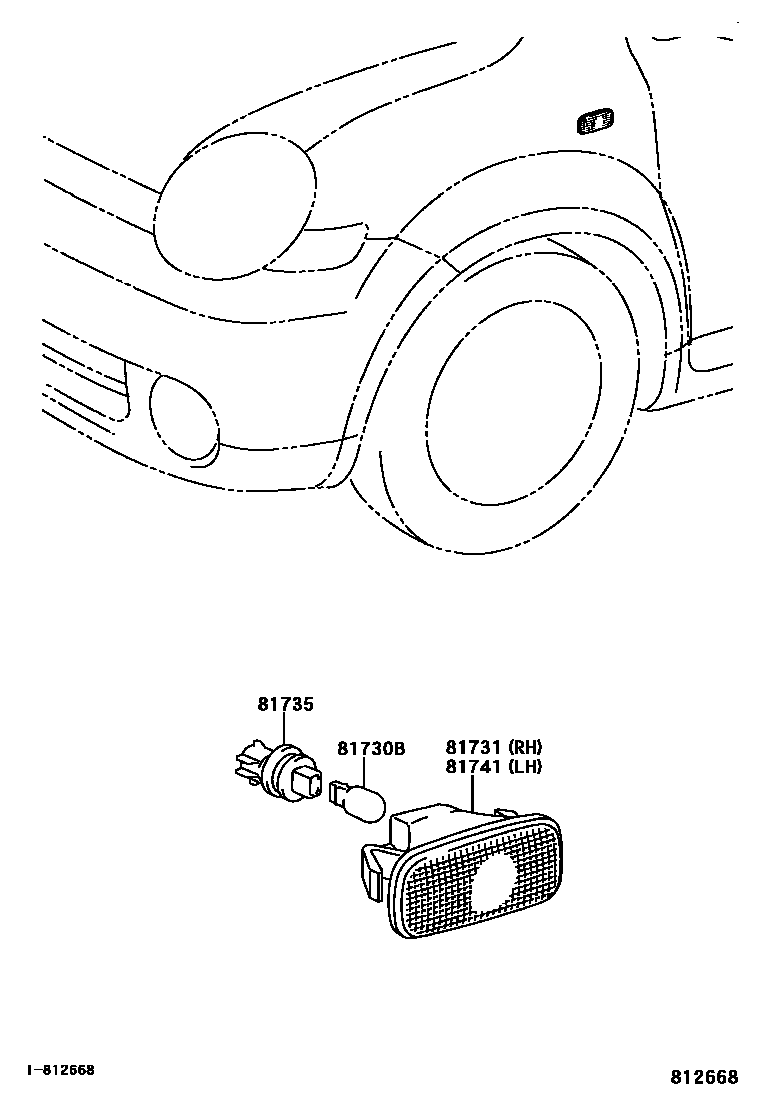

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-52070iNCP8#200605-200611

sub81730-52071

main81730-52071iNCP8#200612-201506

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050iNCP8#200309-200605

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-53010iNCP8#200309-200605

sub81731-53011

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-60001iNCP8#200309-200605

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-53010iNCP8#200309-200605

sub81731-53011

5 parts on this diagram · 2 diagrams in section
