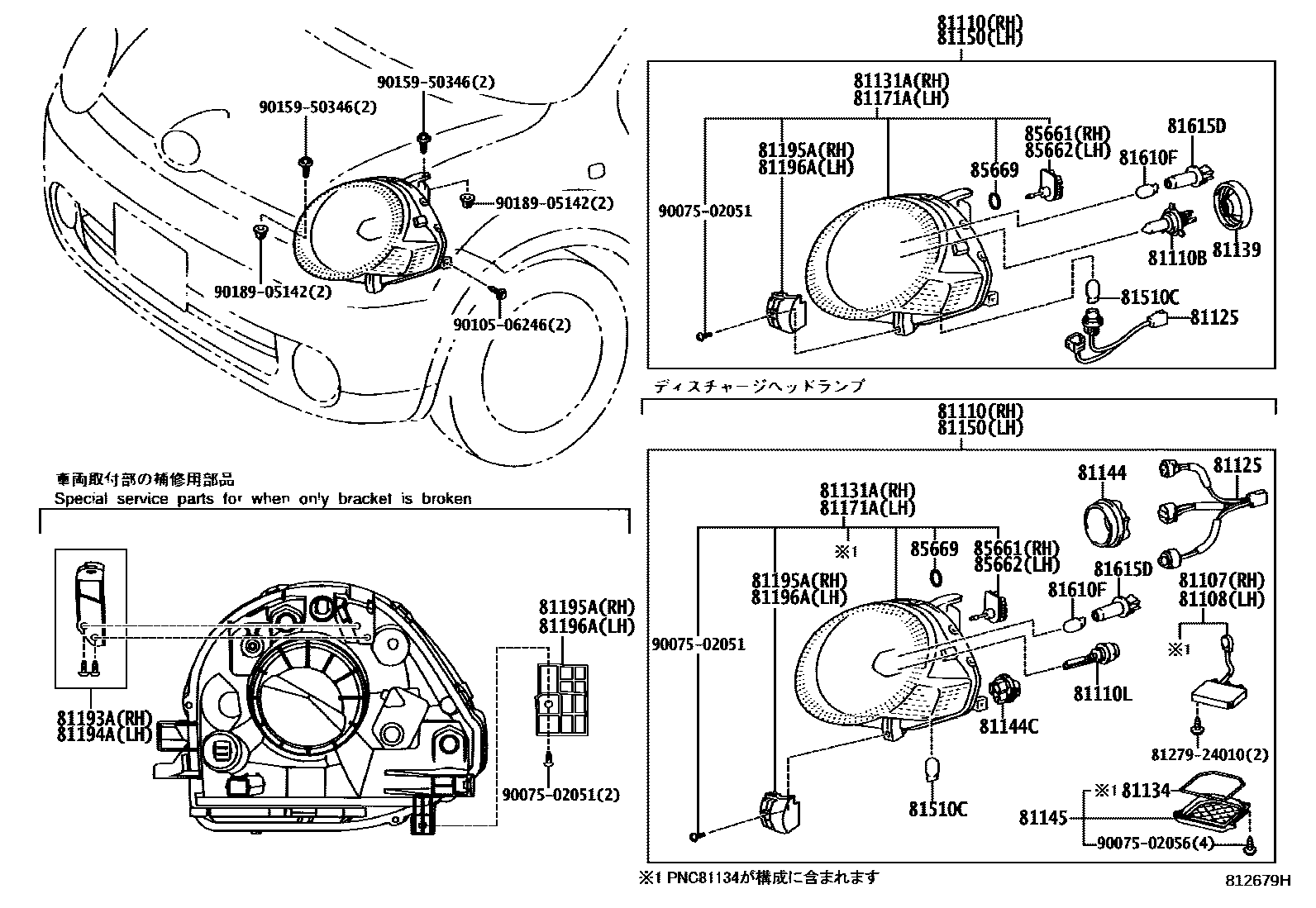

HEADLAMP

0001 1 0002 1 0003 1����� �������� 0004 1��������� ��������

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-1E710iNCP8#..G201106-201309

main81107-1E710iNCP8#200309-201008

main81107-75020iNCP8#..DICE,DICEG201106

main81107-75020iNCP8#..G201309

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-1E710iNCP8#200309-201008

main81107-1E710iNCP8#..G201106-201309

main81107-75020iNCP8#..X201309

main81107-75020iNCP8#..DICE,DICEG201106

81110HEADLAMP ASSY, RH

main81110-52420iNCP8#200309-200508

main81110-52421iNCP8#200508-200605

main81110-52430iNCP8#200309-200508

main81110-52431iNCP8#200508-200605

sub81145-52431

sub81107-1E710

sub81125-52431

sub81135-2D010

sub81279-24010

sub90075-60053

sub90075-60077

sub90075-67008

sub90981-15011

sub90981-20007

sub99132-12050

main81110-52830iNCP8#..X200605-201309

main81110-52840iNCP8#..X201106-201309

main81110-52840iNCP8#200605-201008

main81110-52E50iNCP8#..DICE,DICEG201106

main81110-52G50iNCP8#..X201309

main81110-52G60iNCP8#..G201309

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iNCP8#200309-201309

main90981-13091iNCP8#..X201309

81110LBULB, DISCHARGE HEADLAMP

main90981-20007iNCP8#..X201106-201309

main90981-20007iNCP8#200309-201008

main90981-20007iNCP8#..G201106-201309

main90981-20024iNCP8#..DICE,DICEG201106

main90981-20024iNCP8#..G201309

81125CORD, HEADLAMP

main81125-52420iNCP8#200309-200508

main81125-52421iNCP8#..X200508-201309

main81125-52430iNCP8#200309-200508

main81125-52431iNCP8#200508-201008

main81125-52431iNCP8#..G201106-201309

main81125-52E50iNCP8#..DICE,DICEG201106-201506

main81125-52G50iNCP8#..X201309-201506

main81125-52G60iNCP8#..X201309-201506

81131AUNIT, HEADLAMP, RH

main81130-52420iNCP8#200309-200508

main81130-52421iNCP8#200508-200605

main81130-52830iNCP8#..X200605-201309

main81130-52G50iNCP8#..X201309

main81145-52430iNCP8#200309-200508

main81145-52431iNCP8#200508-200605

main81145-52840iNCP8#..X201106-201309

main81145-52840iNCP8#200605-201008

main81145-52E50iNCP8#..DICE,DICEG201106

main81145-52G60iNCP8#..G201309

81134GASKET, HEADLAMP

main90075-23002iNCP8#..X201309

main90075-23002iNCP8#..DICE,DICEG201106

main90075-68001iNCP8#..X201106-201309

main90075-68001iNCP8#200309-201008

81139COVER, HEADLAMP SOCKET

main90075-65002iNCP8#200309-201309

81144COVER, HEADLAMP, NO.1

main81135-2D010iNCP8#200309-201008

main81135-2D010iNCP8#..G201106-201309

81144CCOVER, HEADLAMP SOCKET

main90075-60053iNCP8#200309-201008

main90075-60053iNCP8#..G201106-201309

81145COVER, HEADLAMP, NO.2

main90075-67005iNCP8#200309-200910

sub90075-67008

main90075-67008iNCP8#..G201106-201309

main90075-67008iNCP8#200910-201008

81150HEADLAMP ASSY, LH

main81150-52420iNCP8#200309-200508

main81150-52421iNCP8#200508-200605

main81150-52430iNCP8#200309-200508

main81150-52431iNCP8#200508-200605

sub81185-52431

sub81107-1E710

sub81125-52431

sub81135-2D010

sub81279-24010

sub90075-60053

sub90075-60077

sub90075-67008

sub90981-15011

sub90981-20007

sub99132-12050

main81150-52820iNCP8#..X200605-201309

main81150-52830iNCP8#200605-201008

main81150-52830iNCP8#..G201106-201309

main81150-52E50iNCP8#..DICE,DICEG201106

main81150-52G40iNCP8#..X201309

main81150-52G50iNCP8#..X201309

81171AUNIT, HEADLAMP, LH

main81170-52420iNCP8#200309-200508

main81170-52421iNCP8#200508-200605

main81170-52820iNCP8#..X200605-201309

main81170-52G40iNCP8#..X201309

main81185-52430iNCP8#200309-200508

main81185-52431iNCP8#200508-200605

main81185-52830iNCP8#..X201106-201309

main81185-52830iNCP8#200605-201008

main81185-52E50iNCP8#..DICE,DICEG201106

main81185-52G50iNCP8#..G201309

81193APROTECTOR, HEADLAMP, RH

main81193-52060iNCP8#200309-201309

81194APROTECTOR, HEADLAMP, LH

main81194-52060iNCP8#200309-201309

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-52060iNCP8#200309-200605

main81195-52090iNCP8#200605-201008

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-52060iNCP8#200309-200605

main81196-52090iNCP8#200605-201008

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iNCP8#200309-201008

main90981-15021iNCP8#201106

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iNCP8#200309-201008

81615DSOCKET, CLEARANCE LAMP

main90075-60046iNCP8#200309-200508

main90075-60077iNCP8#200508-201309

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iNCP8#201002-201008

main85661-22020iNCP8#200508-201002

main85661-22020iNCP8#200309-201008

main85661-22020iNCP8#..X201106-201309

main85661-22020iNCP8#..X201309

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNCP8#..X201002-201008

main85661-22020iNCP8#200508-201002

main85661-22020iNCP8#200309-201008

main85661-22020iNCP8#..X201106-201309

main85661-22020iNCP8#..X201309

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iNCP8#200508-201008

main90075-99120iNCP8#200309-200605

8127924010WASHER, SIDE TURN SIGNAL LAMP

main81279-24010

9007502051

main90075-02051

9007502056

main90075-02056

9010506246

main90105-06246

9015950346

main90159-50346

9018905142

main90189-05142

30 parts on this diagram · 4 diagrams in section
