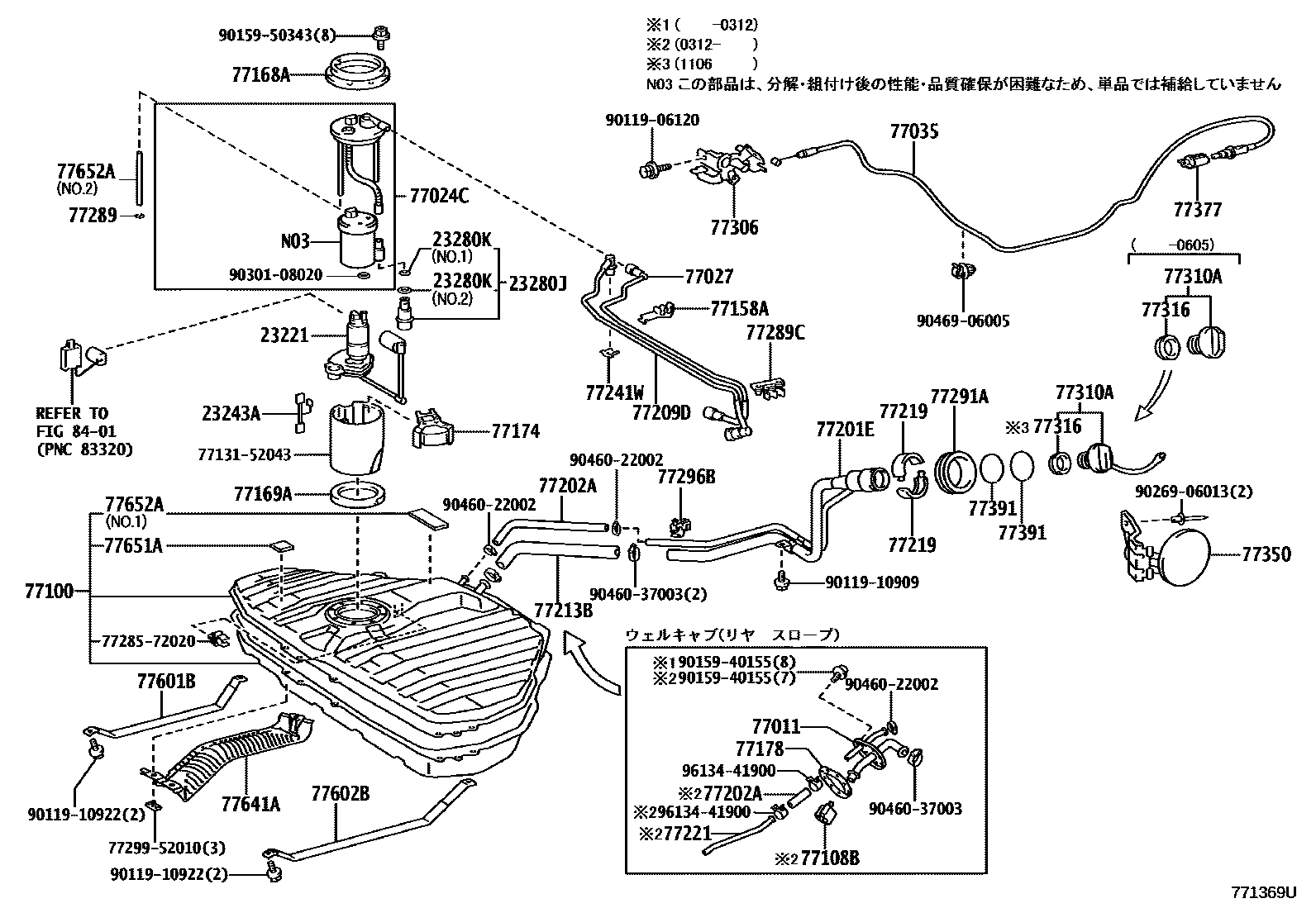

FUEL TANK & TUBE
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
main77011-52020
77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77158ASUPPORT, TANK SUCTION TUBE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77178GASKET, FUEL TANK FILLER PIPE, LOWER
main77178-52010
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77219COVER, FUEL TANK FILLER PIPE
77221TUBE, FUEL TANK BREATHER, NO.1
main77221-52100
77289HOLDER, FUEL TANK PIPE SETTING
77289CCLAMP, FUEL TUBE, NO.4
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77350LID ASSY, FUEL FILLER OPENING
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
8401
7713152043BRACKET, FUEL TANK FILLER PIPE SUPPORT
main77131-52043
7728572020BRACKET, FUEL TUBE
main77285-72020
7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5
main77299-52010
9011906120
main90119-06120
9011910909
main90119-10909
9011910922
main90119-10922
9015940155
main90159-40155
9015950343
main90159-50343
9026906013
main90269-06013
9030108020
main90301-08020
9046022002
main90460-22002
9046037003
main90460-37003
9046906005
main90469-06005
9613441900
main96134-41900
52 parts on this diagram · 3 diagrams in section
