REAR MOULDING

6708

7501

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-48020iNCP8#200309-200605

76811GARNISH, BACK DOOR, OUTSIDE

main76811-52130-A0iNCP8#200309-200605

WHITE PEARL CS.,064

sub76811-52900

main76811-52130-A1iNCP8#200309-200605

WHITE,068

sub76811-52900

main76811-52130-B0iNCP8#201106-201506

SILVER M.M.,1E7

sub76811-52900

main76811-52130-B1iNCP8#200605-201008

GRAY ME.,1G3

sub76811-52900

main76811-52130-C1iNCP8#..DICE,DICEG201204-201506

BLACK MC.,209

sub76811-52900

main76811-52130-D0iNCP8#200605-201008

SUPER RED 5,3P0

sub76811-52900

main76811-52130-D1iNCP8#..DICE,DICEG,X201106-201506

BORDEAUX M.M,3R9

sub76811-52900

main76811-52130-D2iNCP8#..G,X201106-201506

MAROON BROWN MC.,3S3

sub76811-52900

main76811-52130-F0iNCP8#200309-200605

LT.YELLOW,597

sub76811-52900

main76811-52130-G0iNCP8#200605-201008

LT.GREEN ME.,6U6

sub76811-52900

main76811-52130-H0iNCP8#200605-201008

AQUA M.M.,774

sub76811-52900

main76811-52130-J0iNCP8#200605-201008

BLUE MC.,8M6

sub76811-52900

main76811-52130-J1iNCP8#201106-201506

LT.BLUE M.M.,8S7

sub76811-52900

main76811-52130-K0iNCP8#200309-200605

LAVENDER M.M.,949

sub76811-52900

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-52030iNCP8#200309-200605

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-52050iNCP8#200309-200605

6278560030WEATHERSTRIP, SIDE WINDOW GLASS, CENTER

main62785-60030

7581933010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010

9010805002

main90108-05002

9010906361

main90109-06361

9017905011

main90179-05011

9043005003

main90430-05003

9415080600

main94150-80600

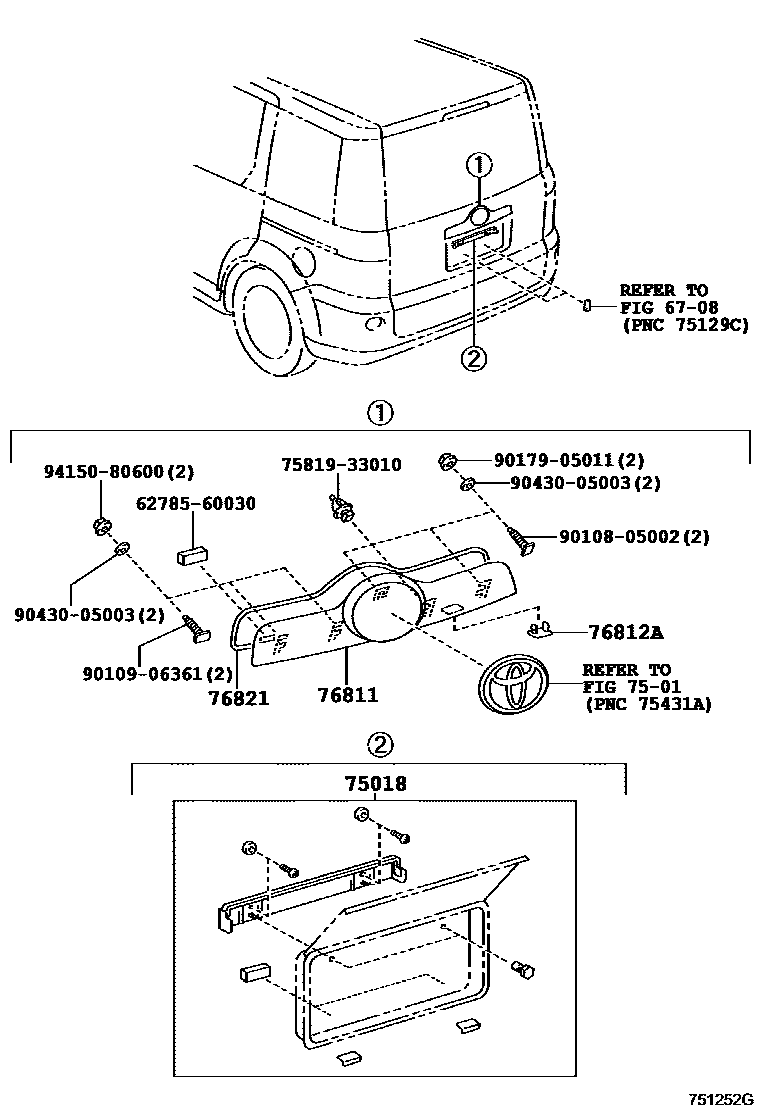

13 parts on this diagram · 1 diagram in section
