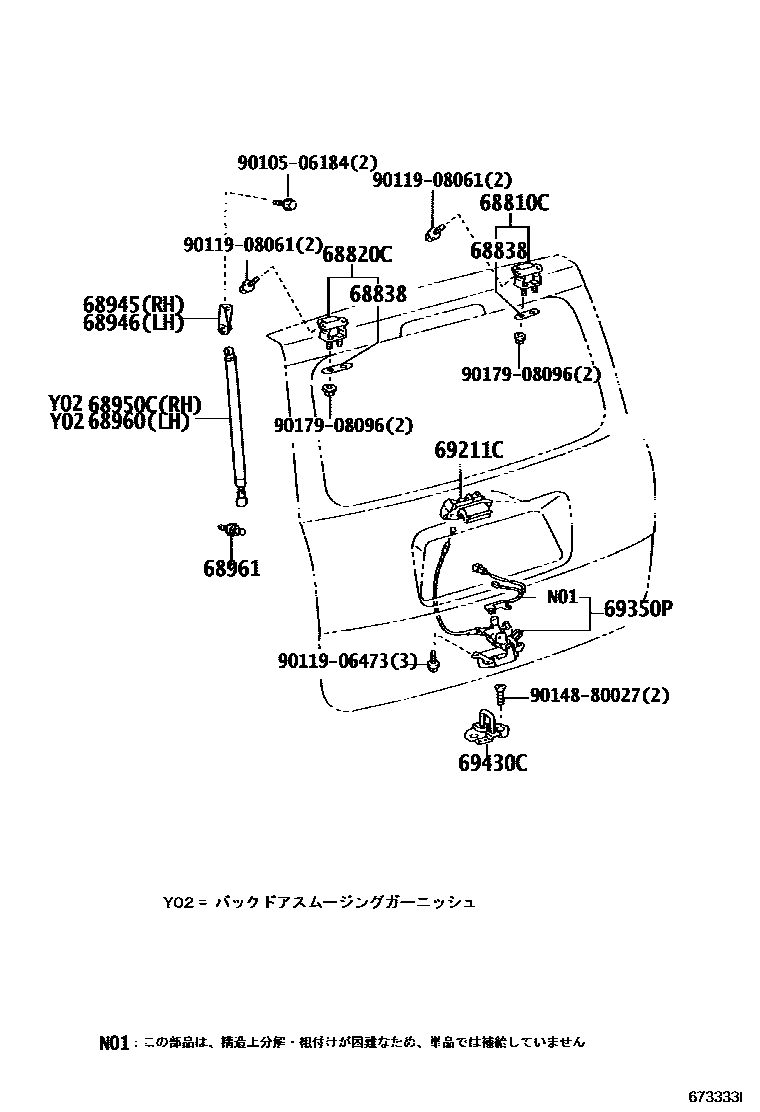

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iNCP8#201106-201506

main68810-52060iNCP8#200309-201008

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iNCP8#201106-201506

main68810-52060iNCP8#200309-201008

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020iNCP8#200911-201008

main68838-52020iNCP8#200605-201008

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52040iNCP8#200309-201008

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-52020iNCP8#200309-201008

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W230iNCP8#200309-200405

sub68950-0W231

main68950-0W231iNCP8#200405-200410

sub68950-0W232

main68950-0W232iNCP8#200411-200501

sub68950-0W233

main68950-0W233iNCP8#200501-200502

sub68950-0W234

main68950-0W234iNCP8#200502-201108

sub68950-0W235

main68950-0W235iNCP8#201109-201202

sub68950-0W236

main68950-0W236iNCP8#201203-201307

sub68950-0W237

main68950-0W237iNCP8#201308

68960STAY ASSY, BACK DOOR, LH

main68960-0W220iNCP8#200309-200405

sub68960-0W221

main68960-0W221iNCP8#200405-200410

sub68960-0W222

main68960-0W222iNCP8#200411-200501

sub68960-0W223

main68960-0W223iNCP8#200501-200502

sub68960-0W224

main68960-0W224iNCP8#200502-201108

sub68960-0W225

main68960-0W225iNCP8#201109-201202

sub68960-0W226

main68960-0W226iNCP8#201203-201307

sub68960-0W227

main68960-0W227iNCP8#201308

68961BOLT, BACK DOOR STAY

main68961-20140iNCP8#200309-201008

69211CHANDLE, BACK DOOR OUTSIDE

main69023-13020iNCP8#200309-201008

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52230iNCP8#200309-201112

sub69350-52231

main69350-52231iNCP8#201201-201506

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52020iNCP8#200309-201008

9010506184

main90105-06184

9011906473

main90119-06473

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

16 parts on this diagram · 1 diagram in section
