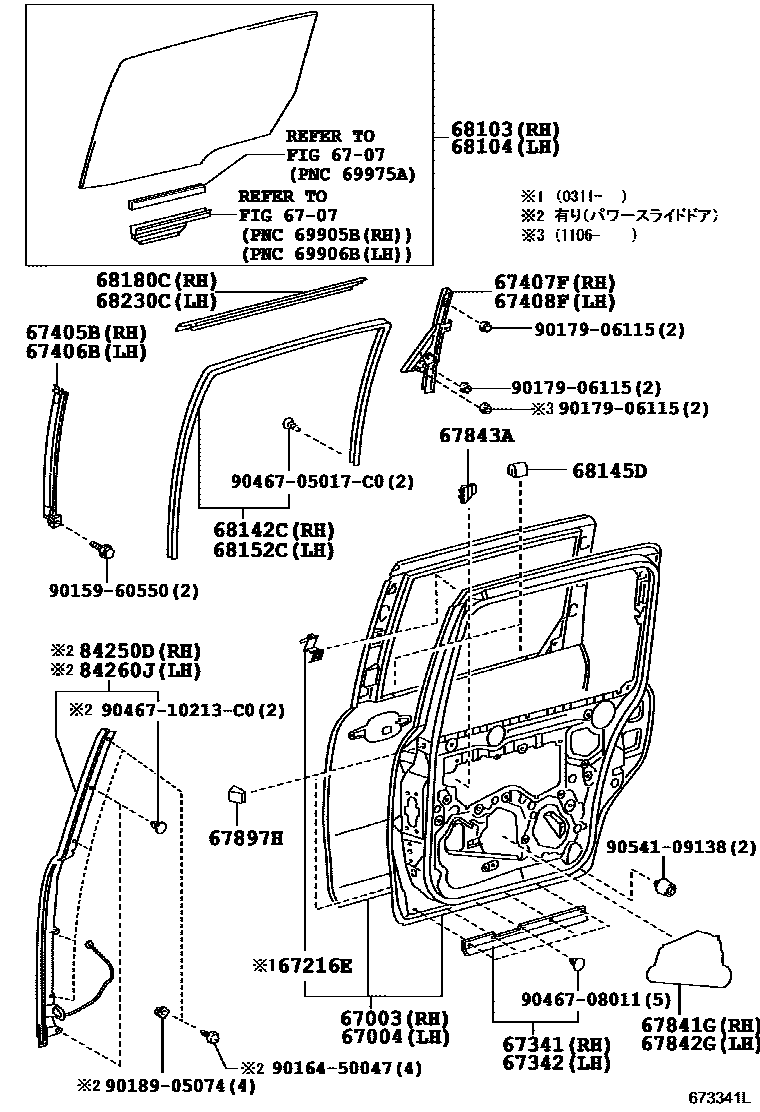

REAR DOOR PANEL & GLASS
6707
67216ESTOPPER, REAR DOOR GLASS, UPPER NO.2
67341WEATHERSTRIP, SLIDE DOOR, RH
67342WEATHERSTRIP, SLIDE DOOR, LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67841GCOVER, SLIDE DOOR SERVICE HOLE, RH
67843ACOVER, REAR DOOR SERVICE HOLE, NO.2
67897HCUSHION, REAR DOOR
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68145DCUSHION, REAR DOOR WINDOW
68152CRUN, REAR DOOR GLASS, LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
84250DSENSOR ASSY, POWER SLIDE DOOR, RH
9015960550
main90159-60550
9016450047
main90164-50047
9017906115
main90179-06115
9018905074
main90189-05074
9046705017C0
main90467-05017C0
9046708011
main90467-08011
9046710213C0
main90467-10213C0
9054109138
main90541-09138
31 parts on this diagram · 2 diagrams in section
