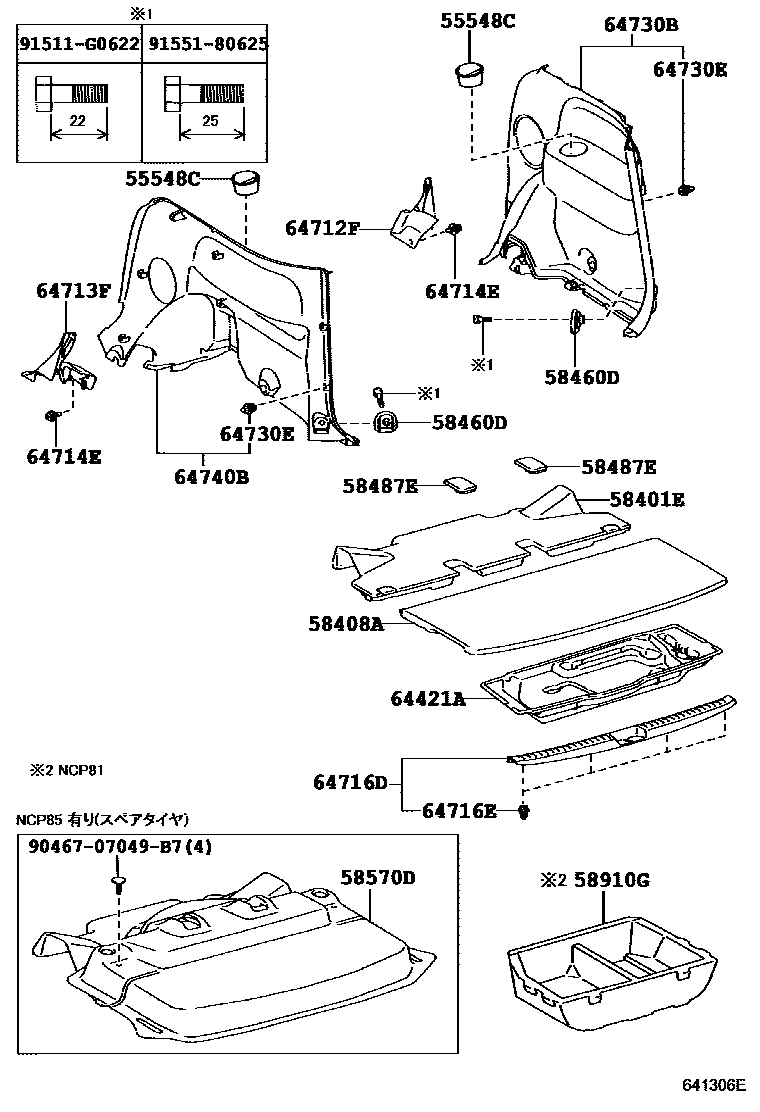

DECK BOARD & DECK TRIM COVER
55548CHOLDER, CUP
58401EBOARD SUB-ASSY, DECK
MD.GRAY,TRIM0#
MD.GRAY,TRIM0#,1#,9#
MD.GRAY,TRIM0#,1#
MD.GRAY,TRIM1#
MD.GRAY,TRIM0#,9#
58408ABOARD SUB-ASSY, DECK, NO.2
MD.GRAY,TRIM0#,9#
MD.GRAY,TRIM0#
MD.GRAY,TRIM0#,1#,9#
MD.GRAY,TRIM0#,1#
MD.GRAY,TRIM1#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58487ECAP, DECK BOARD SERVICE HOLE
DK.GRAY,TRIM1#
DK.GRAY,TRIM0#,9#
DK.GRAY,TRIM0#
DK.GRAY,TRIM0#,1#,9#
DK.GRAY,TRIM0#,1#
58570DCARPET ASSY, REAR FLOOR
64421ATRAY, LUGGAGE COMPARTMENT
64712FCOVER, DECK SIDE TRIM, FRONT RH
IVORY,TRIM0#
GRAY,TRIM9#
GRAY,TRIM1#,9#
MD.GRAY,TRIM1#
64713FCOVER, DECK SIDE TRIM, FRONT LH
IVORY,TRIM0#
GRAY,TRIM1#,9#
GRAY,TRIM9#
MD.GRAY,TRIM1#
64714ECLIP(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
IVORY,TRIM0#
GRAY,TRIM1#,9#
GRAY,TRIM9#
MD.GRAY,TRIM1#
64716ECLIP(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740BBOARD, DECK TRIM SIDE, LH
9046707049B7
main90467-07049B7
91511G0622
main91511-G0622
9155180625
main91551-80625
19 parts on this diagram · 1 diagram in section
