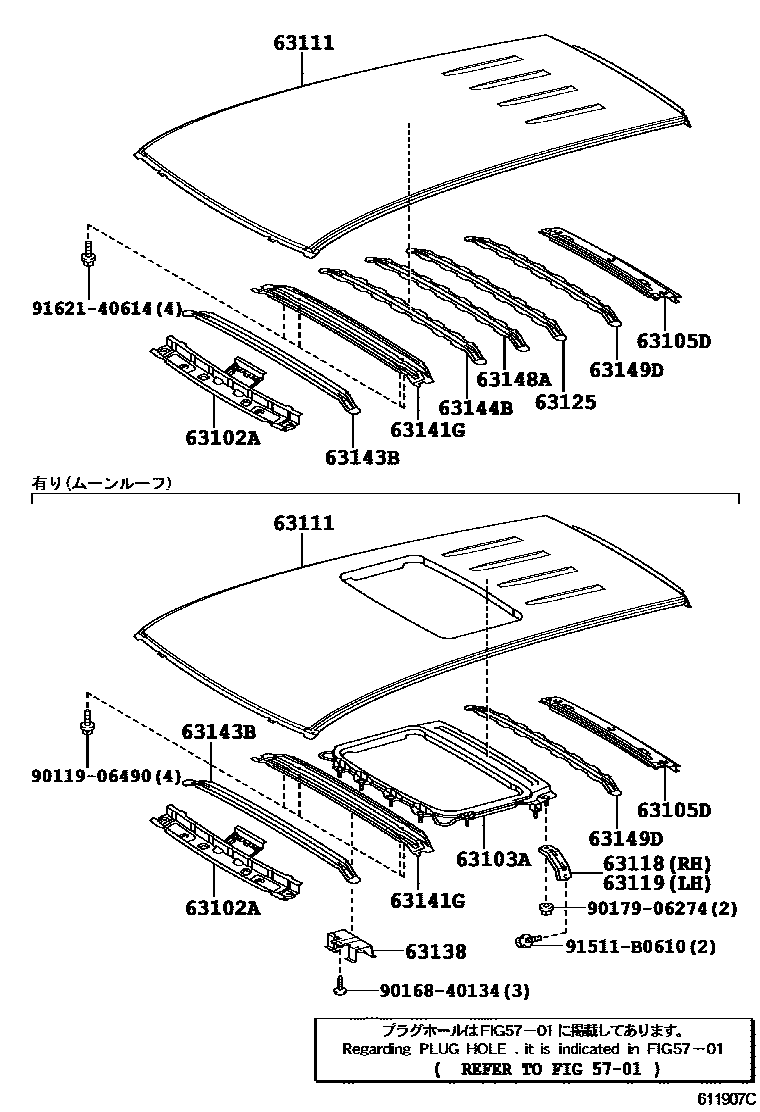

ROOF PANEL & BACK WINDOW GLASS

0001 1�-� ���� 0002 1�-� �-� 0003 1

5701

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52090iNCP8#200309-201506

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-52050iNCP8#200309-200605

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-52110iNCP8#200309-201506

63111PANEL, ROOF

main63111-52330iNCP8#200309-201008

main63111-52340iNCP8#200309-200605

main63111-52420iNCP8#201106

63118SUPPORT, ROOF PANEL, RH

main63118-52050iNCP8#200309-200605

63119SUPPORT, ROOF PANEL, LH

main63118-52050iNCP8#200309-200605

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-52030iNCP8#200309-201008

63138BRACKET, DOME LAMP, NO.2

main63138-52010iNCP8#200309-200605

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-52080iNCP8#200309-201008

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52090iNCP8#200309-201008

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-52060iNCP8#200309-201008

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-52060iNCP8#200309-201008

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-52040iNCP8#200309-201008

main63208-52030iNCP8#201106

9011906490

main90119-06490

9016840134

main90168-40134

9017906274

main90179-06274

91511B0610

main91511-B0610

9162140614

main91621-40614

19 parts on this diagram · 3 diagrams in section
