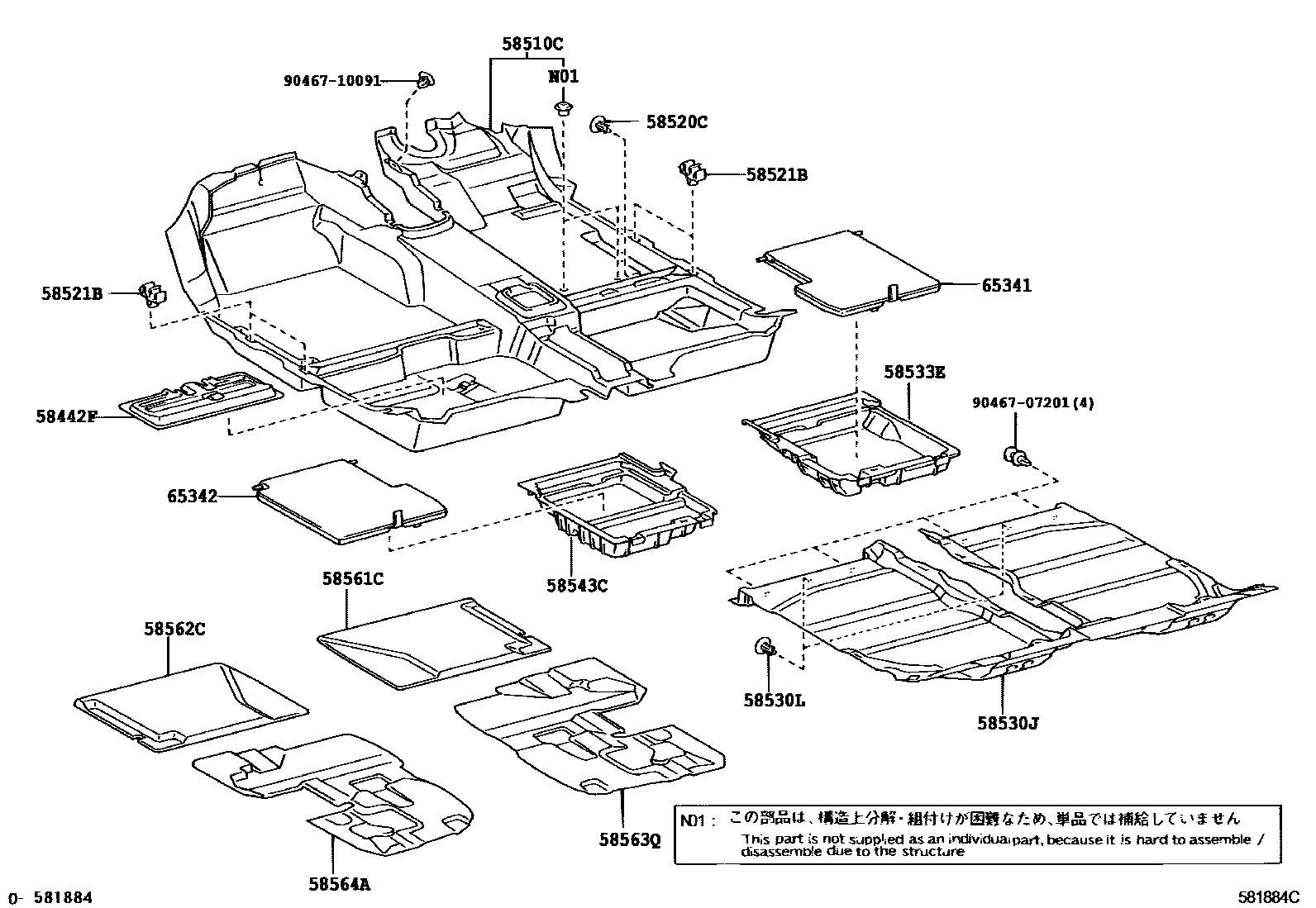

MAT & CARPET
58442FCOVER, JACK
58510CCARPET ASSY, FRONT FLOOR, FRONT
GRAY,TRIM0#,1#,9#
GRAY,TRIM0#
GRAY,TRIM0#,9#
GRAY,TRIM0#,1#
GRAY,TRIM0#
GRAY,TRIM1#
GRAY,TRIM0#,1#,9#
GRAY,TRIM0#
GRAY,TRIM0#,9#
GRAY,TRIM0#,1#
GRAY,TRIM0#
GRAY,TRIM1#
58521BHOOK, FLOOR CARPET
58530JCARPET ASSY, FLOOR, CENTER
GRAY,TRIM0#,9#
GRAY,TRIM1#
GRAY,TRIM0#,1#,9#
GRAY,TRIM0#
GRAY,TRIM0#,1#
GRAY,TRIM0#
GRAY,TRIM0#,9#
GRAY,TRIM0#,1#,9#
GRAY,TRIM0#,1#
GRAY,TRIM1#
58530LCLIP, FLOOR CARPET, CENTER
58533EBOARD, FRONT FLOOR MAT, CENTER NO.1 RH
DK.GRAY,TRIM0#,9#
DK.GRAY,TRIM0#
DK.GRAY,TRIM0#,1#,9#
DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM1#
58543CBOARD, FRONT FLOOR MAT, CENTER NO.1 LH
DK.GRAY,TRIM0#,1#,9#
DK.GRAY,TRIM0#,9#
DK.GRAY,TRIM0#
DK.GRAY,TRIM0#,1#
DK.GRAY,TRIM1#
65341BOARD, FLOOR, NO.1
MD.GRAY,TRIM0#
MD.GRAY,TRIM0#,1#
MD.GRAY,TRIM1#
MD.GRAY,TRIM0#,9#
MD.GRAY,TRIM0#,1#,9#
65342BOARD, FLOOR, NO.2
MD.GRAY,TRIM0#,9#
MD.GRAY,TRIM0#
MD.GRAY,TRIM0#,1#,9#
MD.GRAY,TRIM0#,1#
MD.GRAY,TRIM1#
9046707201
main90467-07201
9046710091
main90467-10091
16 parts on this diagram · 1 diagram in section
