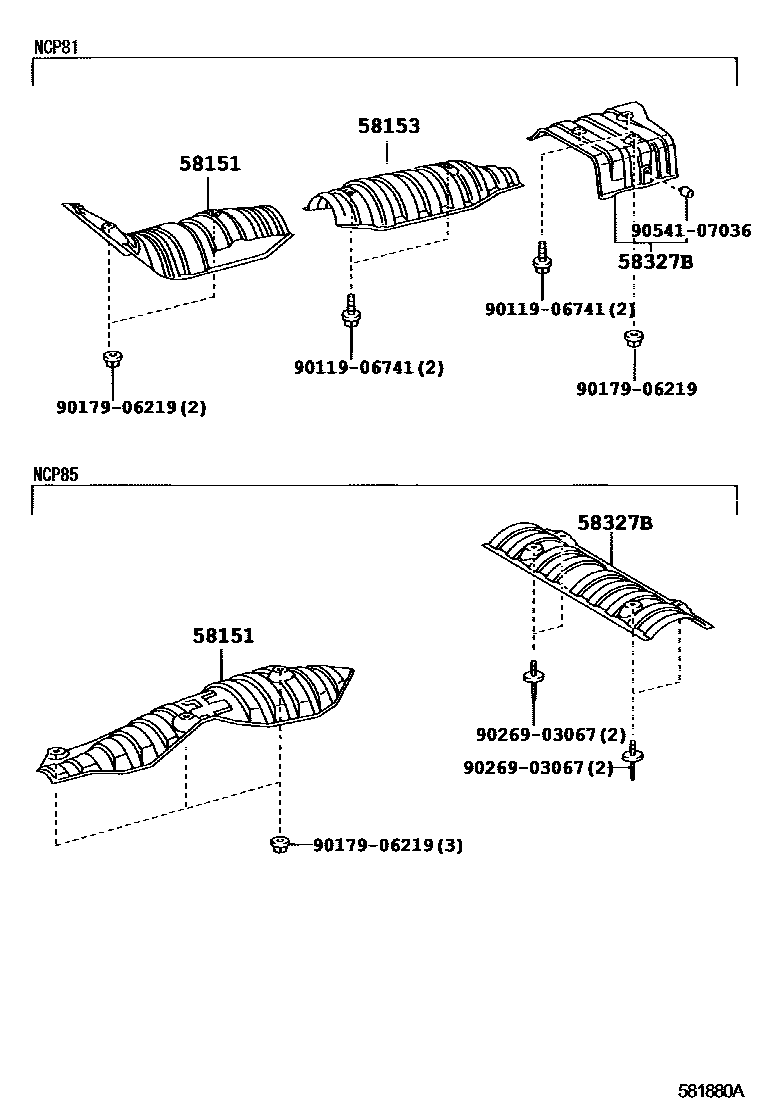

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52020iNCP85200309-201005

sub58151-52021

main58151-52021iNCP85201006-201409

main58151-52030iNCP81200309-201008

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52060iNCP81200309-201008

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52020iNCP85200309-201409

main58327-52100iNCP81200309-201008

9011906741

main90119-06741

9017906219

main90179-06219

9026903067

main90269-03067

9054107036

main90541-07036

7 parts on this diagram · 1 diagram in section
