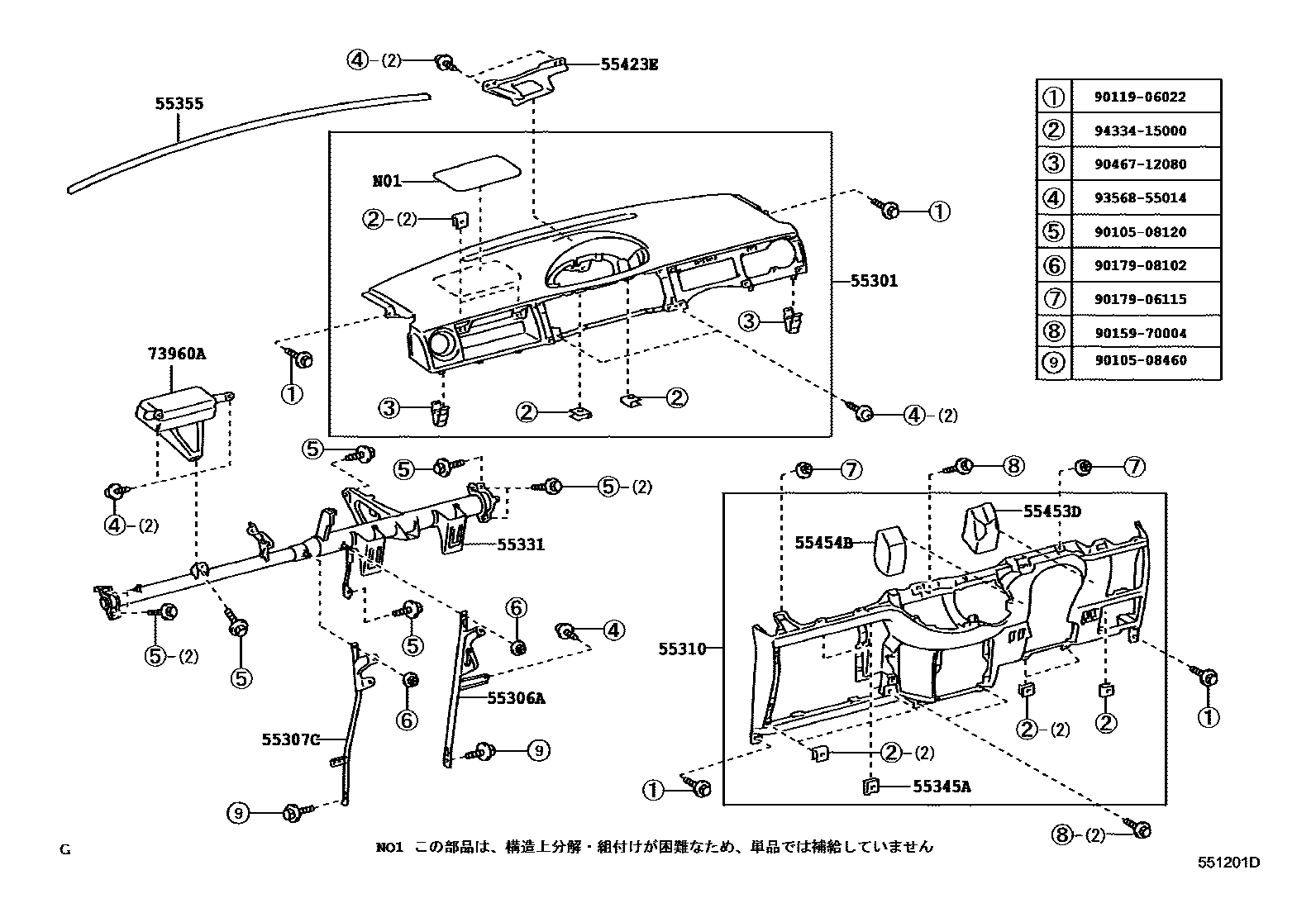

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55301PANEL SUB-ASSY, INSTRUMENT

main55301-52180-B0iNCP8#200309-200605

DK.GRAY,TRIM9#

main55301-52180-B0iNCP8#..X200605-201008

DK.GRAY,TRIM1#,9#

main55301-52180-B0iNCP8#..DICE,DICEG,X201106-201506

DK.GRAY,TRIM1#

main55301-52180-E0iNCP8#200309-201506

ORCHID BROWN,TRIM0#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52110iNCP8#¥3,890200309-201008

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-52020iNCP8#¥2,300200309-201008

55310PANEL ASSY, INSTRUMENT, LOWER

main55310-52090-B0iNCP8#..X200605-201008

DK. GRAY,TRIM1#,9#

main55310-52090-B0iNCP8#200309-200605

DK. GRAY,TRIM9#

main55310-52090-B0iNCP8#..DICE,DICEG,X201106-201506

DK.GRAY,TRIM1#

main55310-52090-E0iNCP8#200309-201506

ORCHID BROWN,TRIM0#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52300iNCP8#¥18,600200309-201008

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iNCP8#¥90200309-201008

55355CUSHION, INSTRUMENT PANEL, NO.1

main55349-52090iNCP8#¥1,550200510-200605

main55355-52080iNCP8#¥1,550200309-200510

main55355-52080iNCP8#¥1,550200605-201008

55423ECUSHION, CENTER CLUSTER, NO.1

main55423-52040iNCP8#¥1,840200309-201008

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52040iNCP8#¥3,310200309-201008

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52030iNCP8#¥3,010200309-201008

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52010iNCP8#¥120,000200309-201008

9010508120

main90105-08120¥90

9010508460

main90105-08460¥80

9011906022

main90119-06022¥130

9015970004

main90159-70004¥60

9017906115

main90179-06115¥120

9017908102

main90179-08102¥160

9046712080

main90467-12080¥60

9356855014

main93568-55014¥70

9433415000

main94334-15000¥90

20 parts on this diagram · 4 diagrams in section
