FRONT FENDER APRON & DASH PANEL
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53218ASUPPORT, RADIATOR, LOWER
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53775CBRACKET, COOL AIR INTAKE DUCT MOUNTING
53869BSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
55101PANEL SUB-ASSY, DASH
55108BBRACE SUB-ASSY, DASH TO FRAME, RH
55109BRACE SUB-ASSY, DASH TO FRAME, LH
55129COVER, DASH PANEL HOLE
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55184BRACKET, DASH PANEL TO COWL BRACE
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
5701
61825FPLATE, NOISE CONTROL
9011906010
main90119-06010
9011906767
main90119-06767
9017908061
main90179-08061
9026903037
main90269-03037
9046706198
main90467-06198
9046708136
main90467-08136
91511B0812
main91511-B0812
91631G0614
main91631-G0614
9163540620
main91635-40620

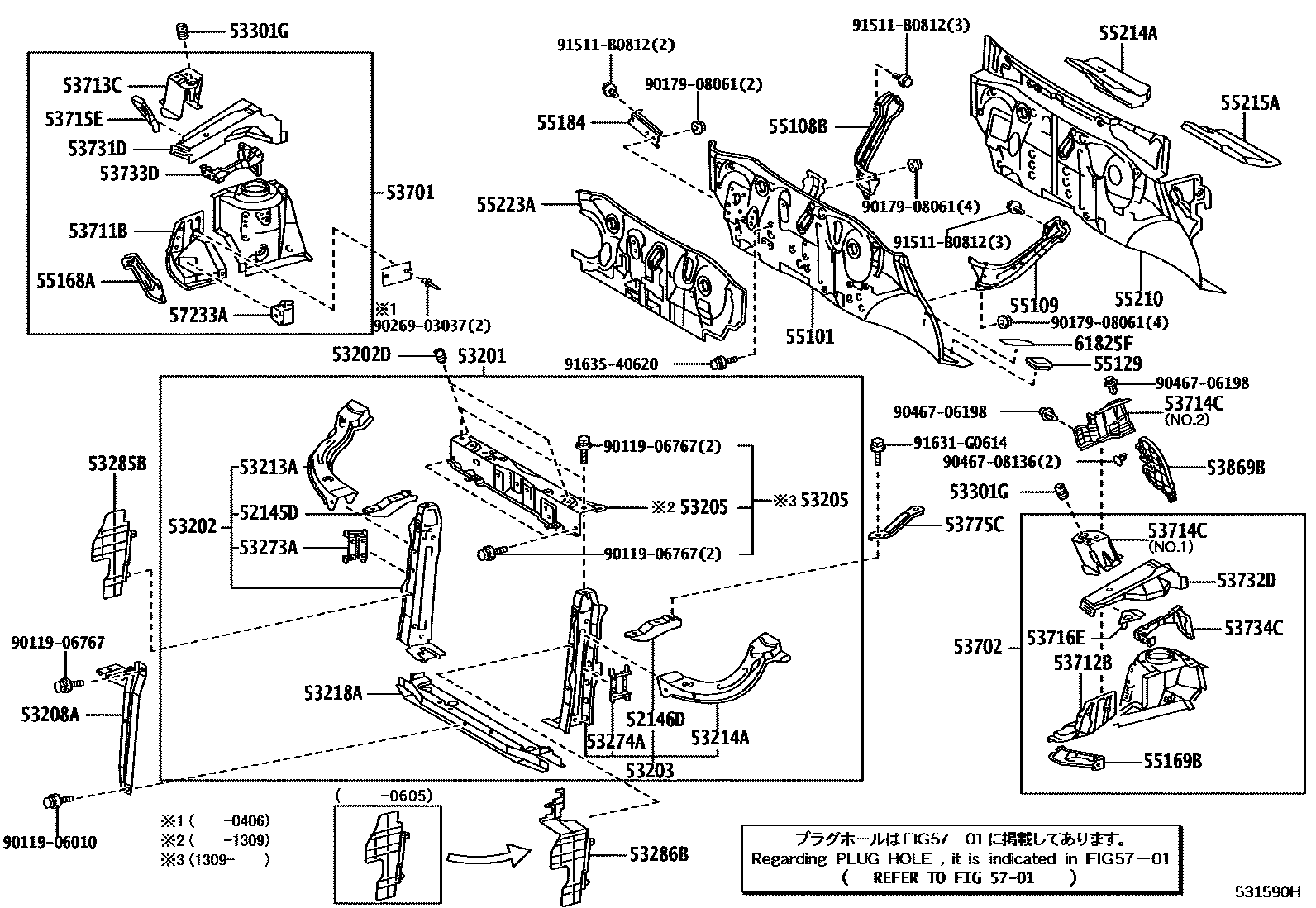

53 parts on this diagram · 2 diagrams in section
