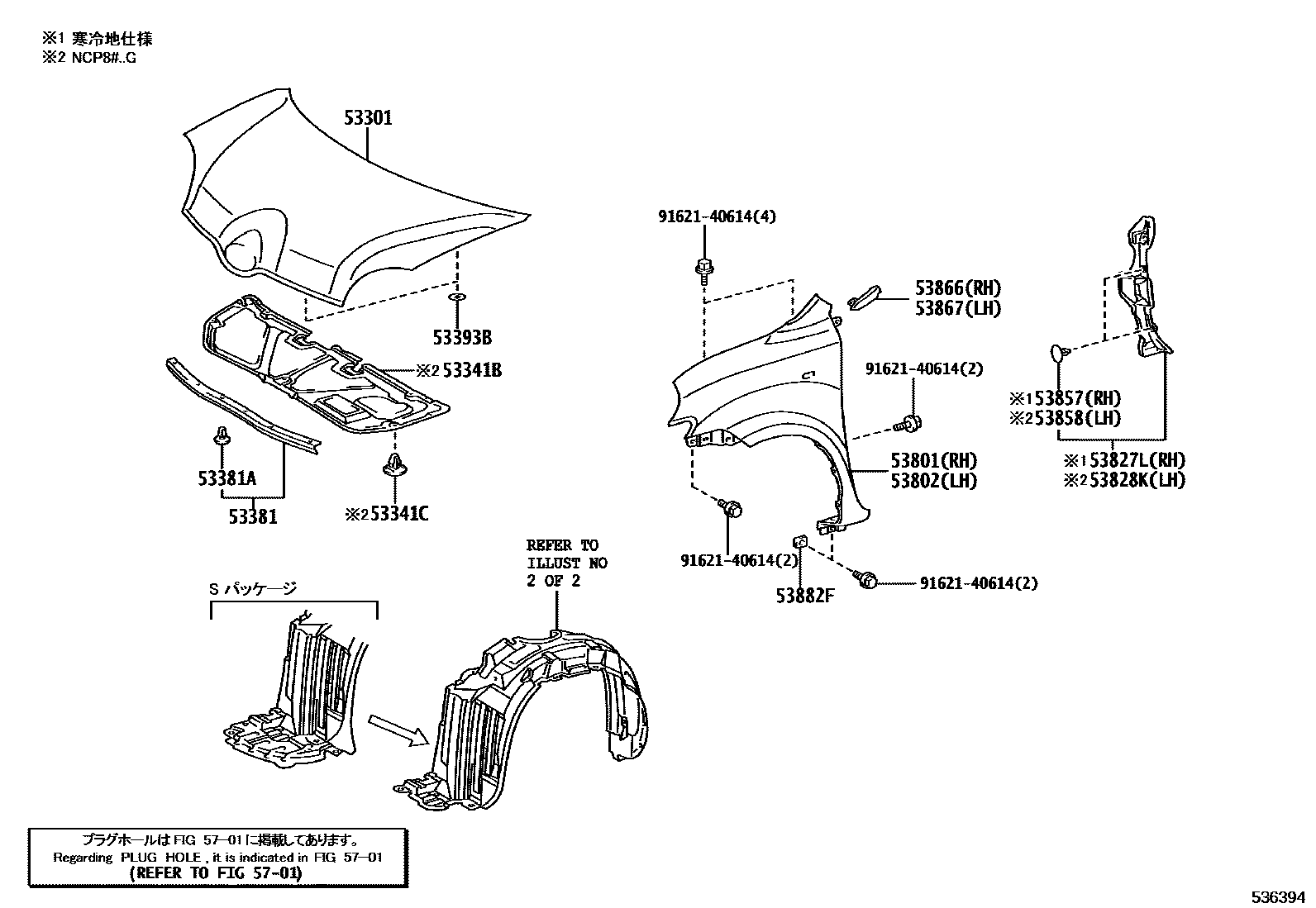

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-52160iNCP8#¥32,500200309-201506

main53301-52340iNCP8#..DICE,DICEG¥32,500201106-201506

53341BINSULATOR, HOOD

main53341-52100iNCP8#..G¥7,400200309-201008

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNCP8#..G¥120200309-201008

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP8#¥1,130200309-201008

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNCP8#¥100200309-201008

53393BPROTECTOR, HOOD, FRONT

main53393-52010iNCP8#¥390200309-200506

main90950-06096iNCP8#¥100201204

main90950-06124iNCP8#¥90200506-201203

53801FENDER SUB-ASSY, FRONT RH

main53811-52190iNCP8#¥33,400200309-200605

main53811-52260iNCP8#¥36,700200605-201506

53802FENDER SUB-ASSY, FRONT LH

main53812-52190iNCP8#¥33,400200309-200605

main53812-52260iNCP8#¥36,700200605-201506

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011¥60

main90467-08136¥90

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011¥60

main90467-08136¥90

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52060iNCP8#¥360200309-201008

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52060iNCP8#¥360200309-201008

53882FSEAL, FRONT FENDER

main53882-16030iNCP8#¥60200309-201008

5701

9162140614

main91621-40614¥80

17 parts on this diagram · 2 diagrams in section
