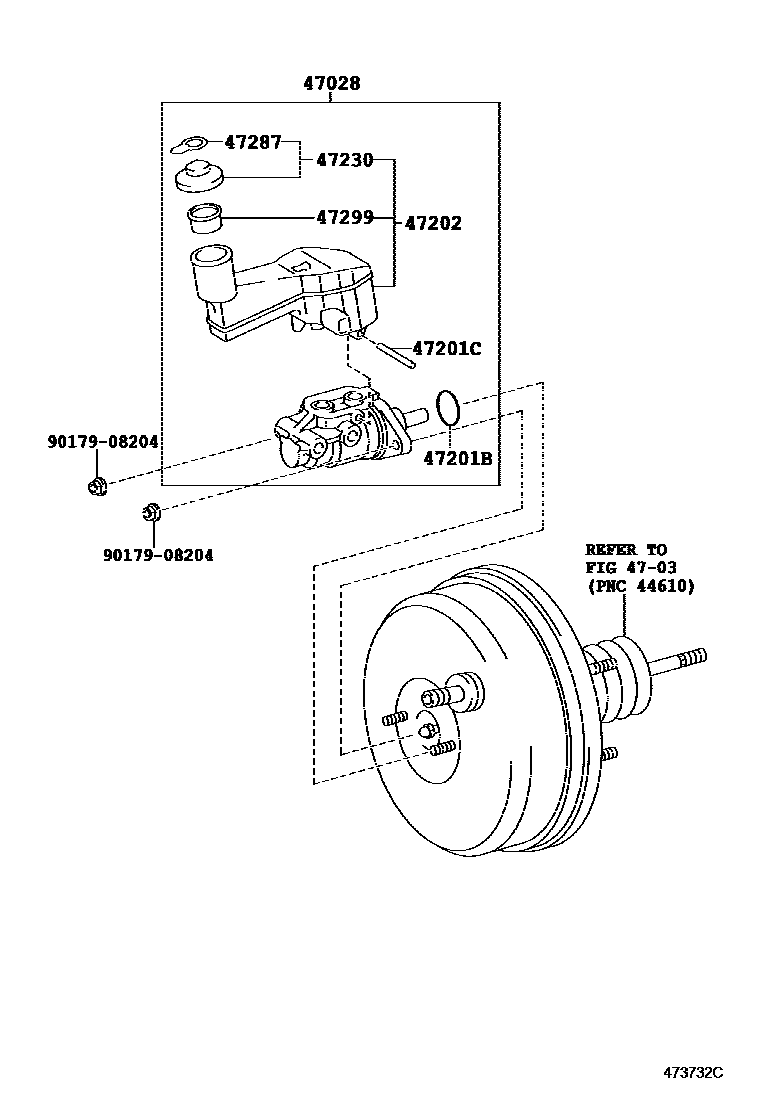

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-52010iNCP8#200309-201008

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iNCP8#200309-201008

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNCP8#200309-201008

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52150iNCP8#200309-201008

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP8#200309-201008

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP8#200309-201008

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNCP8#200309-201008

9017908204

main90179-08204

9 parts on this diagram · 1 diagram in section
